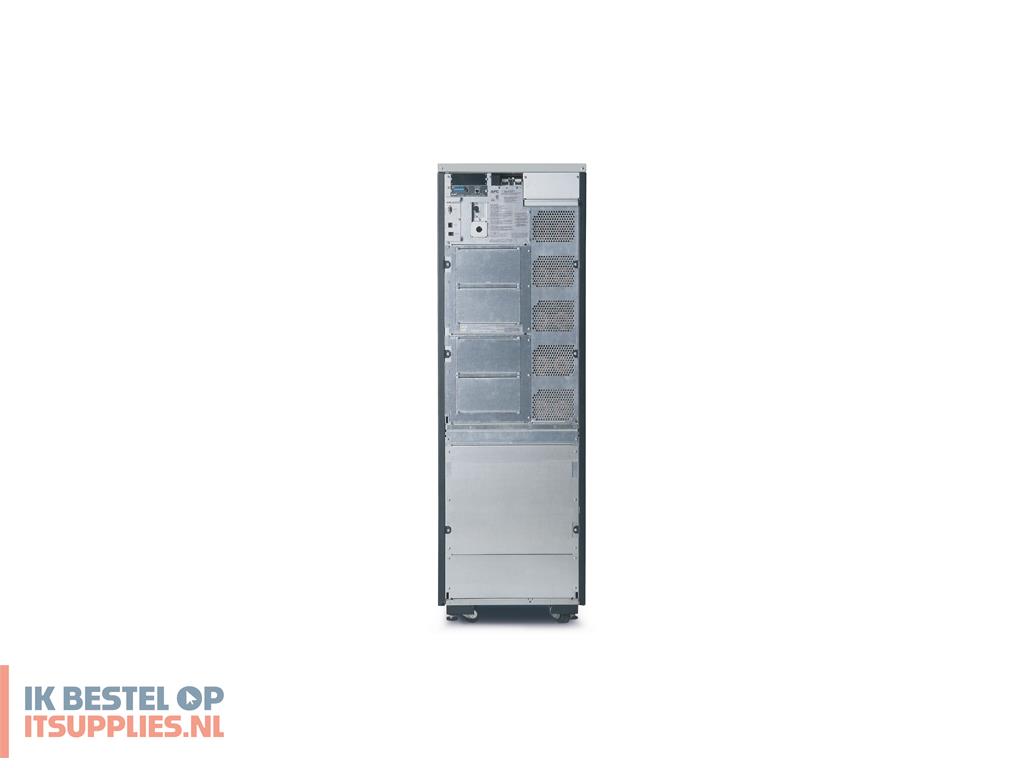

APC SYA8K16IXR. Output power capacity: 8 kVA, Uitgangsvermogen: 5600 W. Stopcontacttypes: Hard Wire 3-wire (1P + N + E). Typische backup tijd op volledige lading: 57,4 min, Typische backup tijd op halve lading: 122,6 min, Vervangings-batterij cartridge: SYBT5. Gewicht: 474 g. Type batterij: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof, Interface: DB-9 RS-232, Smart-Slot, Output-aansluitingen: (1) Hard Wire 3-wire (H N + G)
Kenmerken
Output power capacity
8 kVA
Emergency Power Off (EPO)
Ja
Poorten & interfaces
Stopcontacttypes
Hard Wire 3-wire (1P + N + E)
Accu/Batterij
Typische backup tijd op volledige lading
57,4 min
Typische backup tijd op halve lading
122,6 min
Vervangings-batterij cartridge
SYBT5
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85078000
Totale Koolstofvoetafdruk (kg of CO2e)
31415,73
Overige specificaties
Type batterij
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Interface
DB-9 RS-232, Smart-Slot
Output-aansluitingen
(1) Hard Wire 3-wire (H N + G)
Input-connectietype
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Afmetingen (B x D x H)
730 x 480 x 1520 mm
Netspanning, in bedrijf
230 V
Output Voltage voetnoot
Configurable for 220: 230 or 240 nominal output voltage
Aansluitingen
Available Smart Slot Interface Quantity - 1
Pre-Installed SmartSlot Cards - AP9619
