Kenmerken
Output power capacity
16 kVA
Emergency Power Off (EPO)
Ja
Accu/Batterij
Typische backup tijd op volledige lading
7,5 min
Typische backup tijd op halve lading
20,3 min
Vervangings-batterij cartridge
SYBT5
Design
Compatibiliteit
C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85078000
Totale Koolstofvoetafdruk (kg of CO2e)
53964,36
Overige specificaties

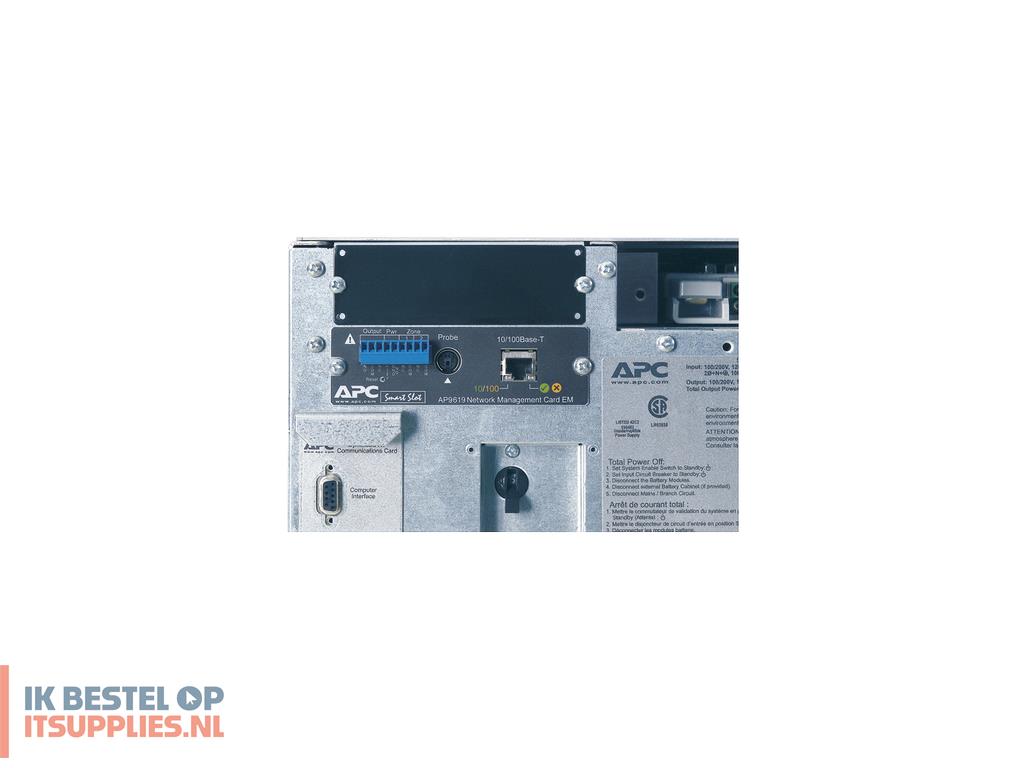

Interface
DB-9 RS-232, Smart-Slot

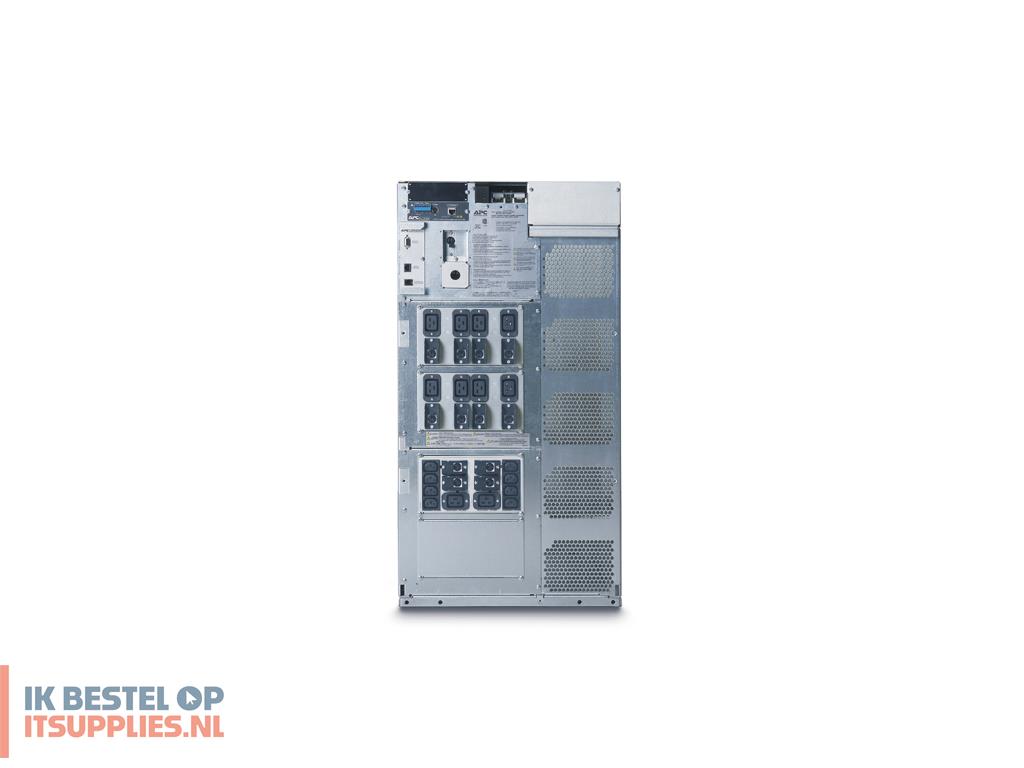

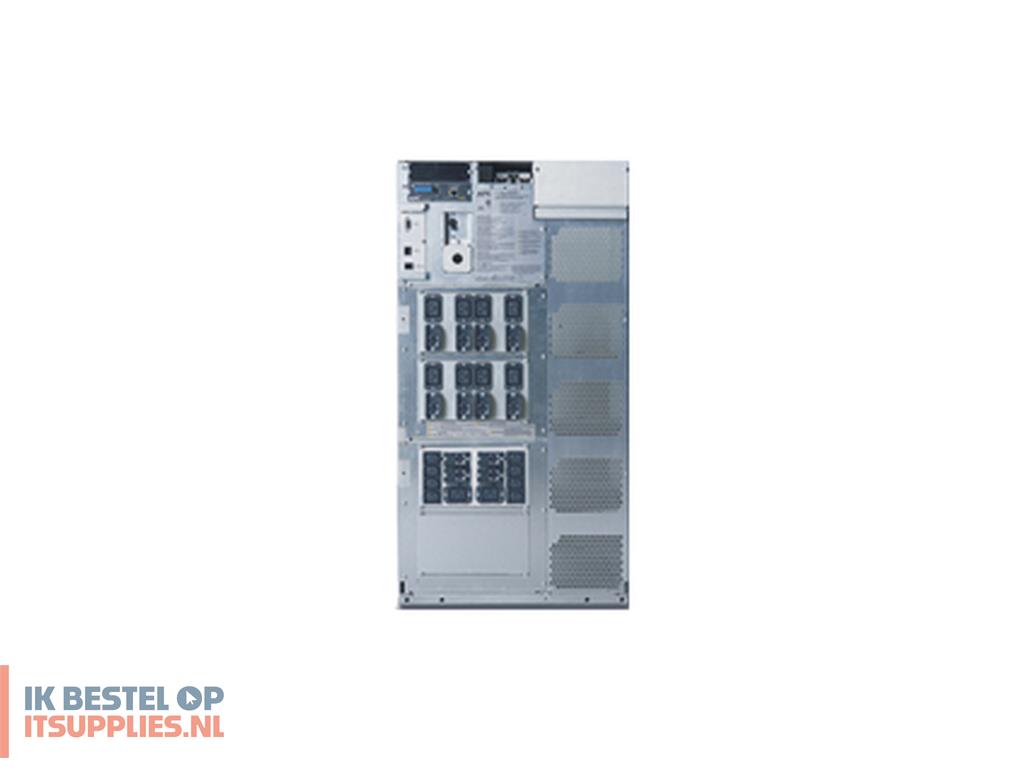

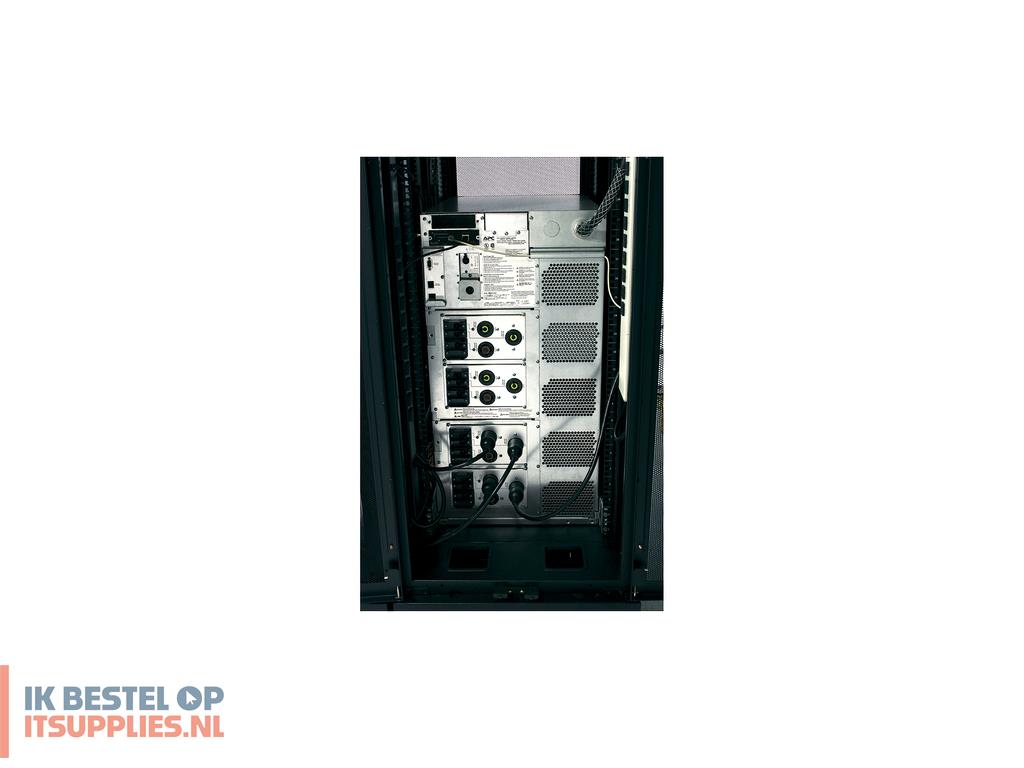

Output-aansluitingen
(1) Hard Wire 3-wire (H N + G)
(8) IEC 320 C13
(10) IEC 320 C19
Input-connectietype
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Afmetingen (B x D x H)
472 x 688 x 838 mm
Output Voltage voetnoot
220: 230, 240
Nominale input voltage
230 V
Afmetingen verpakking (BxDxH)
599 x 997 x 1054 mm
Aansluitingen
(1) Hard Wire 3-wire (H N + G)
(8) IEC 320 C13
(10) IEC 320 C19
Hard Wire 3 wire (1PH+N+G)
Hard Wire 5-wire (3PH + N + G)
