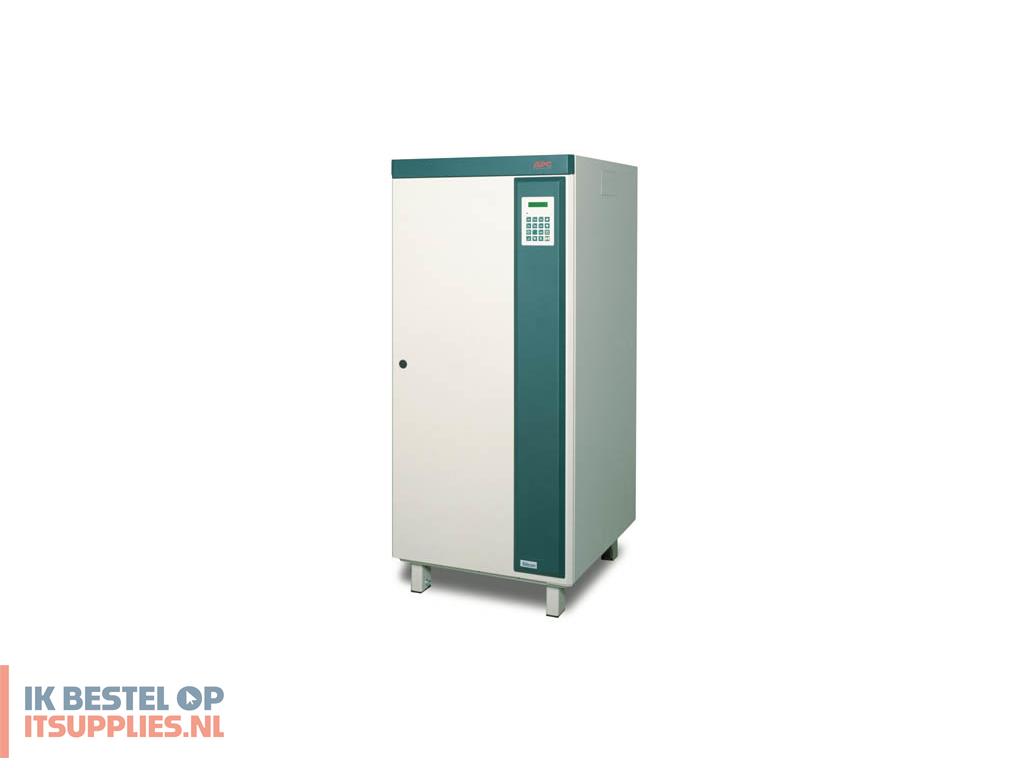

APC Silcon 10kW 400V UPS W-1 BPI. Output power capacity: 10 kVA, Uitgangsvermogen: 10000 W. Typische backup tijd op volledige lading: 10,8 min, Typische backup tijd op halve lading: 37,2 min. Meegeleverde software: - Previous Web/SNMP Management Card Wizard Release Notes - Previous Web/SNMP Management Card.... Producten per pallet: 1 stuk(s). Type batterij: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof, Interface: DB-25 RS-232, Contact Closure, Output-aansluitingen: (1)Hard Wire 4-wire (3PH + G) (1)Hard Wire 5-wire (3PH + N + G) (1)Hard Wire 3-wire (3PH) ...
Kenmerken
Output power capacity
10 kVA
Emergency Power Off (EPO)
Ja
Accu/Batterij
Typische backup tijd op volledige lading
10,8 min
Typische backup tijd op halve lading
37,2 min
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-50 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Verpakking
Meegeleverde software
- Previous Web/SNMP Management Card Wizard Release Notes
- Previous Web/SNMP Management Card Wizard User Guide
- Web/SNMP Management Card Wizard
- Web/SNMP Management Card Wizard Installation Guide
Logistieke gegevens
Producten per pallet
1 stuk(s)
Overige specificaties
Type batterij
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Interface
DB-25 RS-232, Contact Closure
Output-aansluitingen
(1)Hard Wire 4-wire (3PH + G)
(1)Hard Wire 5-wire (3PH + N + G)
(1)Hard Wire 3-wire (3PH)
(1)Hard Wire 4-wire (3PH + N)
(1)Hard Wire 4-wire (3PH - PEN)
Input-connectietype
Hard Wire 5-wire (3PH + N + G); Hard Wire 4-wire (3PH + PEN); Hard Wire 4-wire (3PH + N)
Afmetingen (B x D x H)
599,9 x 800,1 x 1400 mm
Output Voltage voetnoot
Configurable for 380: 400 or 415 V 3 Phase nominal output voltage
Nominale input voltage
400 V
