General
Device Type

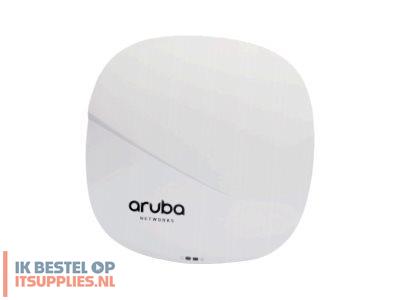

Radio access point
Networking
Connectivity Technology
Wireless
Data Transfer Rate
1.733 Gbps
Line Coding Format
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Spread Spectrum Method
OFDM, DSSS
Frequency Band
2.4 GHz, 5 GHz
Capacity
Wireless clients: 255 ¦ BSSIDs per radio: 16
Features
Auto-sensing per device, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Trusted Platform Module (TPM), Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, enhanced ClientMatch, Aruba Beacons Bluetooth Low-Energy (BLE) technology, Instant Access (IA)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac
Aerial
Directivity
Omni-directional
Expansion / Connectivity
Interfaces
2 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - RJ-45
Miscellaneous
Compliant Standards
EN 60950, IEC 60950, UL 60950, CB, FCC, R&TTE, EN 60601-1-2, cTUVus, EN 300 328, EN 301 489, EN 60601-1-1, LVD 72/23/EEC, EN 301 893
Power
Power Over Ethernet (PoE) Supported
PoE
Power Consumption Operational
20 Watt
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
