General
Device Type

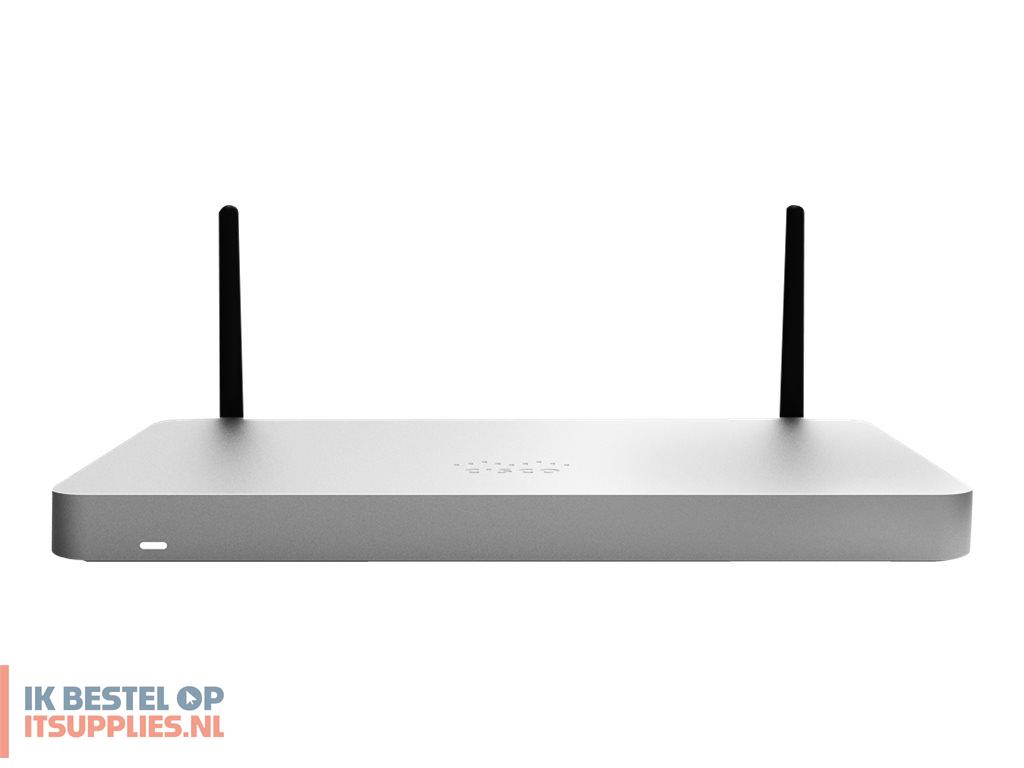

Security appliance
Networking
Connectivity Technology
Wireless, wired
Data Transfer Rate
1.3 Gbps
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Network / Transport Protocol
L2TP, IPSec, PPPoE, DHCP
Routing Protocol
Static IP routing, MPLS
Remote Management Protocol
HTTP
Frequency Band
2.4 GHz, 5 GHz
Performance
Firewall throughput: 450 Mbps
VPN throughput: 200 Mbps
Advanced security throughput: 300 Mbps
Capacity
Maximum number of users: 50
Maximum number of configured SSIDs: 4
Features
Firewall protection, DHCP support, NAT support, load balancing, layer 7 switching, VLAN support, traffic shaping, content filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, wall mountable, IPSec Virtual Private Network (VPN), Quality of Service (QoS), MPLS VPN, 3G/4G USB Dongle Support, static routing, 802.1x authentication, Link Aggregation, VPN client, IP Security (IPSec) support, DMZ support
Encryption Algorithm
WPA, WPA-PSK, WPA2-Enterprise, WEP
Authentication Method
Radio Service Set ID (SSID)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
Aerial
Antenna
External detachable
Directivity
Omni-directional
Communications
Mobile Communication Protocol
LTE
Expansion / Connectivity
Interfaces
2 x 1000Base-T - RJ-45 (WAN)
8 x 1000Base-T - RJ-45
2 x 1000Base-T (PoE+) - RJ-45
1 x USB 2.0 - Type A
2 x aerial - RP-SMA
Miscellaneous
Compliant Standards
C-Tick, CB, IC, FCC, RoHS, CISPR, IPsec/IKE
Power
Power Over Ethernet (PoE) Supported
PoE+
Power Device
External power adapter
Power Consumption Operational
89 Watt
Manufacturer Warranty
Service & Support
Limited warranty - advance hardware replacement - lifetime - response time: next day
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95%
