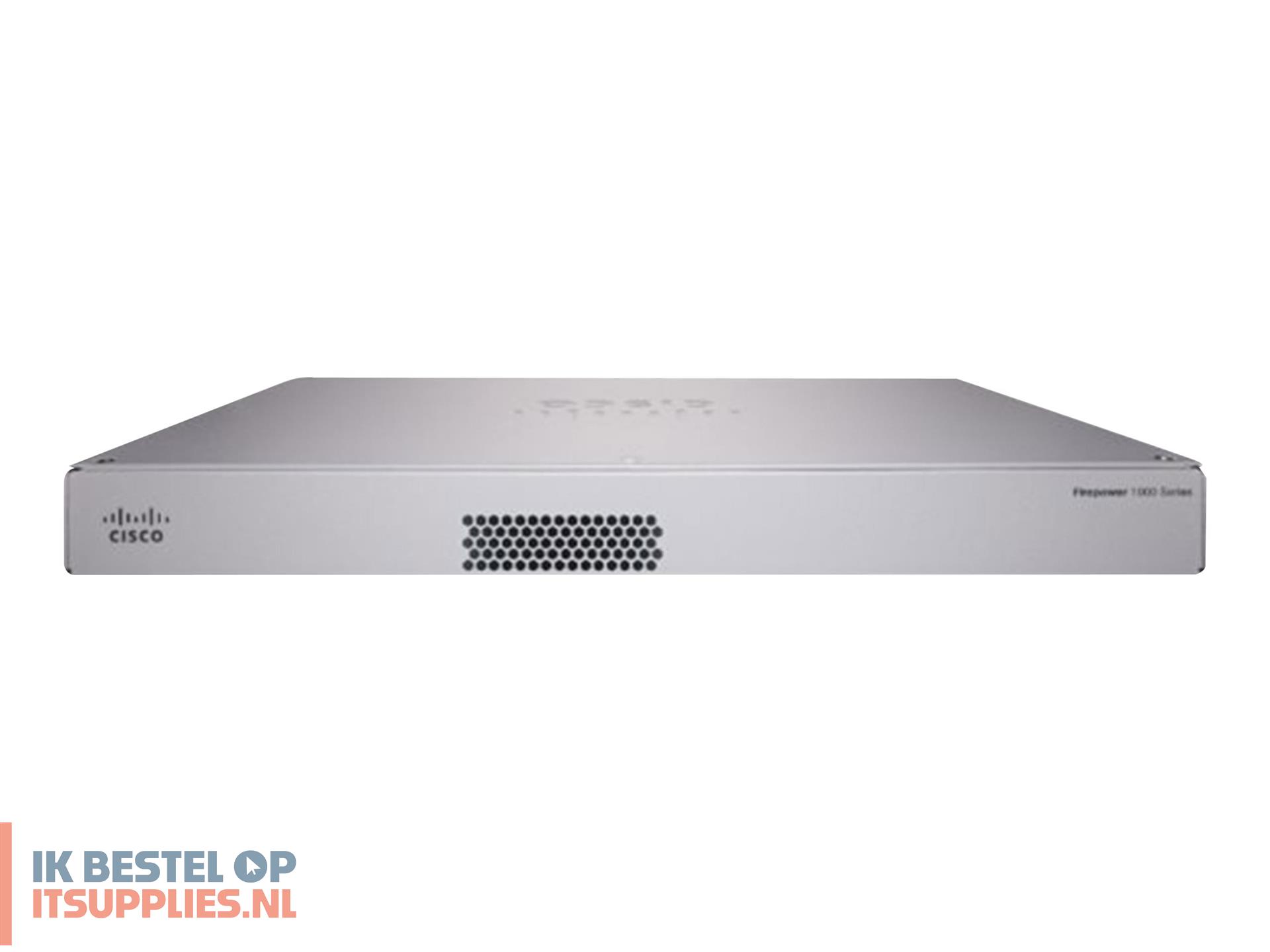

Cisco FirePOWER 1150 Next-Generation Firewall

Firewall

1U

43.69 cm

26.87 cm

4.37 cm

3.63 kg

1 x Intel

32 GB DDR4 SDRAM

SSD 200 GB x 1

Rack-mountable

Front to back airflow

Wired

Firewall and Application Visibility and Control (AVC) throughput (1024B): 3 Gbps
Firewall and Application Visibility and Control (AVC) and Intrusion Prevention System (IPS) throughput (1024B): 3 Gbps
Transport Layer Security (TLS) throughput: 1.4 Gbps
NGIPS throughput (1024B): 3 Gbps
IPSec VPN throughput (1024B TCP w/Fastpath): 1.4 Gbps
Maximum inspection throughput: 7.5 Gbps
IPsec VPN throughput (450B UDP L2L test): 1.7 Gbps

Maximum concurrent sessions with AVC: 600000
New connections per second with AVC: 28000
VPN peers: 800
Concurrent firewall connections: 600000
New connections per second: 150000

1 fan

8 x 1000Base-T - RJ-45
2 x 1000Base-X - SFP+
1 x 1000Base-T (management) - RJ-45
1 x serial - RJ-45
1 x USB 3.0 - Type A
2 x 10GBase-X - SFP (mini-GBIC)

Mounting brackets

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, TVCN 7317, Directive 2006/108/EC, TCVN 7189, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A

Internal power supply

1

1

AC 120/230 V (50/60 Hz)

100 Watt

Cisco Threat Defense 6.5

Limited warranty - advance hardware replacement - 90 days - response time: 10 days

0 °C

40 °C

90% (non-condensing)
