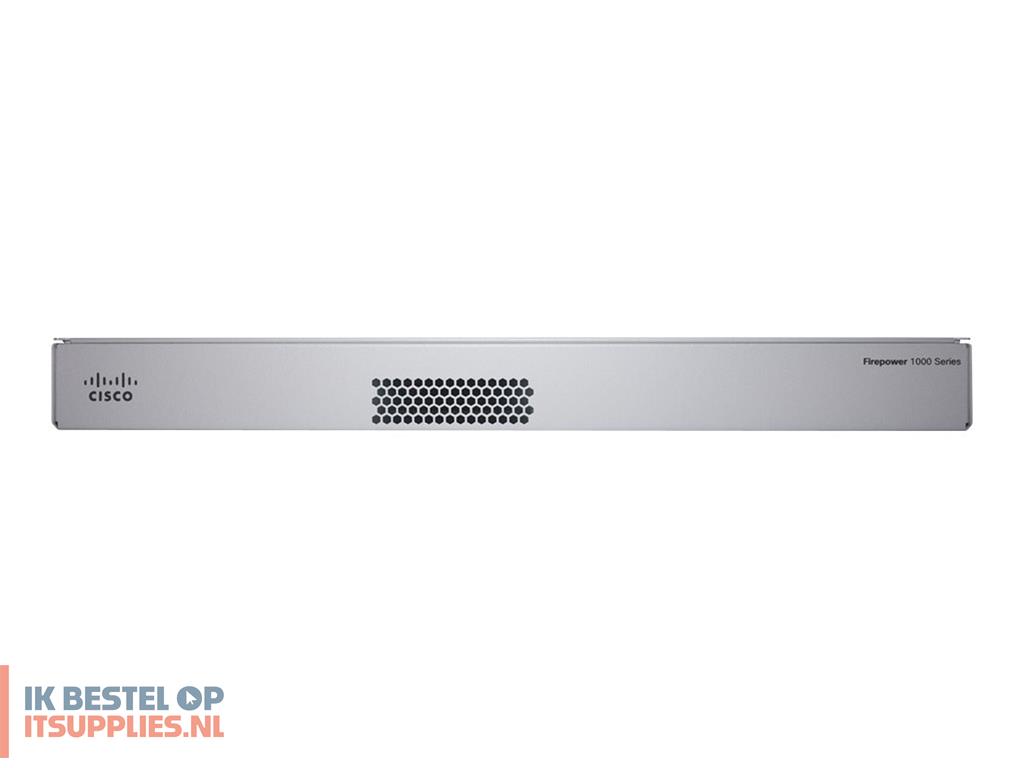

Cisco FirePOWER 1140 ASA - Firewall

Firewall

1U

43.7 cm

26.9 cm

4.37 cm

3.63 kg

1 x Intel

32 GB DDR4 SDRAM

SSD 200 GB x 1

Rack-mountable

Front to back airflow

Wired

Firewall throughput (UDP): 6 Gbps
Multiprotocol firewall throughput: 3.5 Gbps
IPsec VPN throughput (450B UDP L2L test): 1,2 Gbps

Concurrent connections: 400000
New connections per second: 100000
VPN peers: 400
Security contexts: 2

1 fan

8 x 1000Base-T - RJ-45
4 x 1000Base-X - SFP (mini-GBIC)
1 x 1000Base-T (management) - RJ-45
1 x serial - RJ-45
1 x USB 3.0 - Type A

Mounting brackets

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, TVCN 7317, Directive 2006/108/EC, TCVN 7189, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A

Internal power supply

AC 120/230 V (50/60 Hz)

Limited warranty - advance hardware replacement - 90 days - response time: 10 days

0 °C

40 °C

90% (non-condensing)
