General
Device Type
Security appliance
Networking
Connectivity Technology
Wired
Data Link Protocol
Gigabit Ethernet
Network / Transport Protocol
TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP
Routing Protocol
OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
Remote Management Protocol
SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI
Performance
Firewall throughput: 3 Gbps
Threat prevention throughput: 1 Gbps
Application throughput: 1.5 Gbps
IPS throughput: 1.5 Gbps
Anti-malware throughput: 1 Gbps
TLS/SSL inspection and decryption throughput: 500 Mbps
VPN throughput (IPSec): 1.3 Gbps
Connection rate: 9000 connections per second
Capacity
Virtual interfaces (VLANs): 128
SSL VPN licences: 2 (maximum 100)
VPN tunnels (site-to-site): 100
IPSec VPN clients: 5 (maximum 200)
SPI connections: 900000
DPI connections: 200000
DPI SSL connections: 30000
Single Sign-On (SSO) users: 1000
Manageable access points: 16
Status Indicators
Power, test mode, link/activity, SSD activity, secure
Features
Firewall protection, NAT support, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, port mirroring, IPv6 support, antivirus analysis, Deep Packet Inspection (DPI), DDos attack prevention, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Jumbo Frames support, DHCP server, bandwidth control, IPv4 support, Common Access Card (CAC) reader support, DHCP relay, 3G/4G USB Dongle Support, NetFlow, Single Sign-On (SSO) support, VLAN trunking, SD-WAN support
Encryption Algorithm
DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method
RADIUS, LDAP, XAUTH authentication
IP Telephony
VoIP Protocols
SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
Expansion / Connectivity

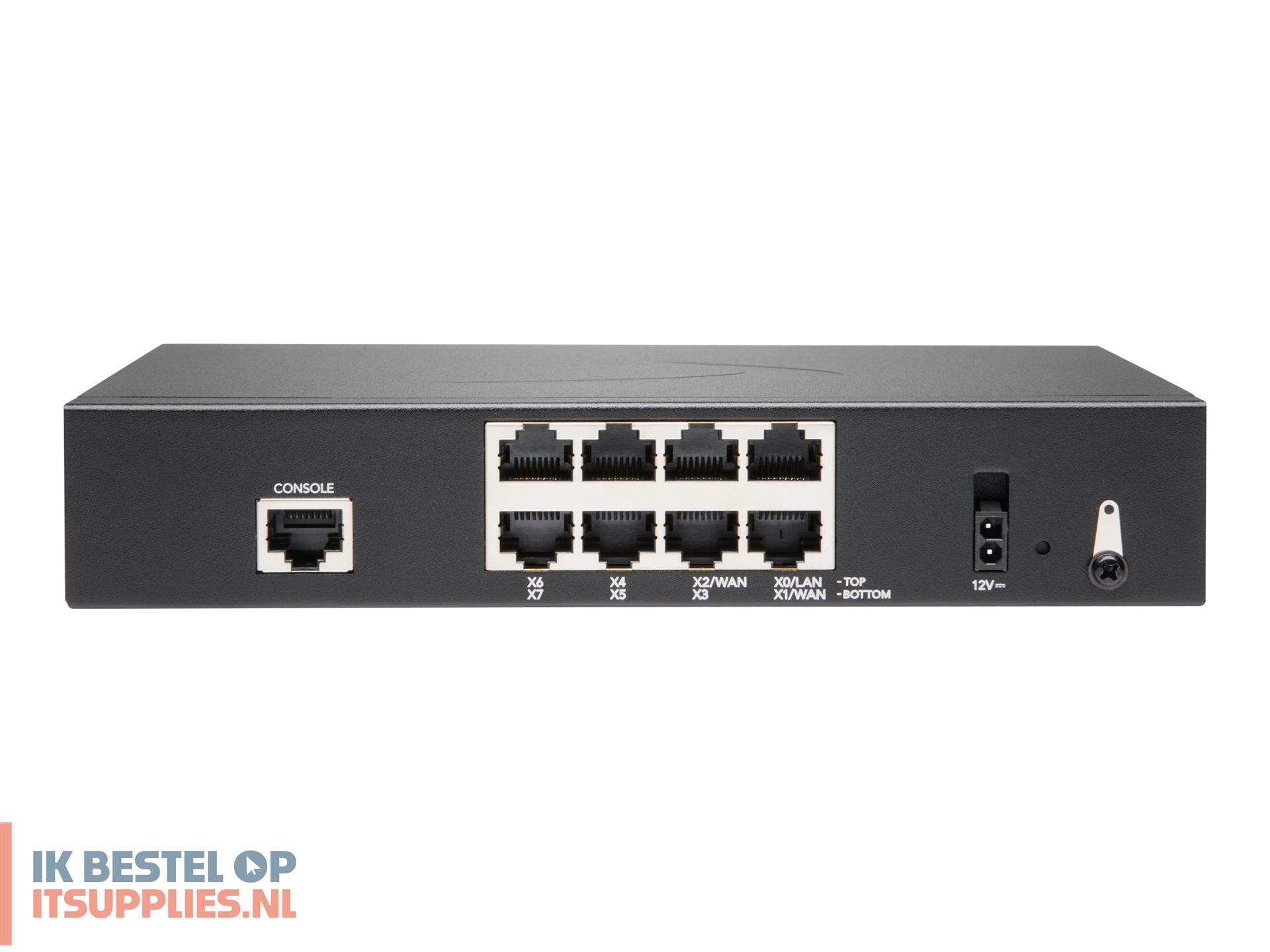

Interfaces
6 x 1000Base-T - RJ-45
2 x 1000Base-T - RJ-45 (WAN)
2 x USB 3.0 - Type A
1 x console - RJ-45
Miscellaneous
Compliant Standards
FCC Class B certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, RoHS, ICES Class B, KCC, WEEE, REACH, LVD, VCCI Class B, MSIP, CoC, Common Criteria
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
16.84 Watt
Software / System Requirements
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
