General
Device Type

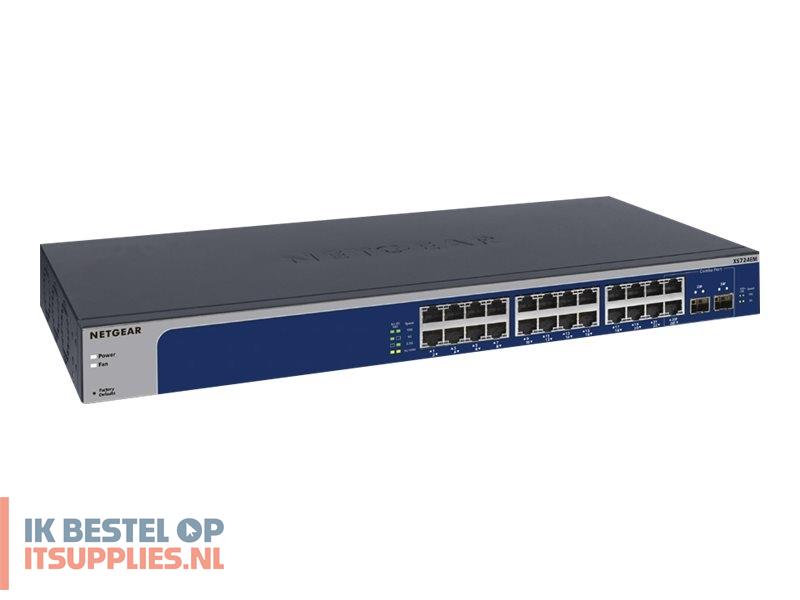

Switch - 24 ports - smart
Enclosure Type
Desktop, rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
22 x 100/1000/2.5G/5G/10GBase-T + 2 x combo 10 Gigabit SFP+
Performance
Fabric throughput: 480 Gbps
Forwarding performance (64-byte packet size): 240 Mbps
Capacity
Priority queues: 8
IGMP multicast groups: 128
MAC Address Table Size
32K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
HTTP, TFTP
Features
VLAN support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, loop prevention, Multicast filtering function, Class of Service (CoS), Type of Service (ToS), DiffServ Code Point (DSCP) support, 3 fans, 3MB packet buffer, cable test, administrator's password, Weighted Round Robin (WRR), VLAN Tagging, port trunking
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
Status Indicators
Power, link/activity/speed
Expansion / Connectivity
Interfaces
24 x 100/1000/2.5G/5G/10GBase-T RJ-45
2 x 10GBase-X SFP+
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Consumption Operational
150.52 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
UL 60950-1, KC, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 B Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, ANSI C63.4-2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, EN 61000-3-2:2014 Class A, CAN/CSA-C22.2 No. 60960-1-07, AS/NZS CISPR32:2013 Class A, EN 6100-3-3:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, VCCI-CISPR 32:2016, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
95% (non-condensing)
