General
Device Type

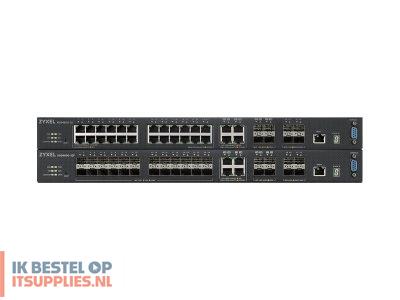

Switch - 32 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Ports
24 x Gigabit SFP + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+
Performance
Switching capacity: 136 Gbps ¦ Forwarding performance: 101.1 Mpps
MAC Address Table Size
32K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2
Encryption Algorithm
SSL, TLS
Authentication Method
Secure Shell (SSH), TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, MAC address filtering, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), IPv4 support, Class of Service (CoS), 4MB packet buffer
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3az
Expansion / Connectivity
Interfaces
28 x 1000Base-X SFP ¦ 4 x 1000Base-T RJ-45 ¦ 1 x serial (RS-232C) management ¦ 4 x 10Gbit LAN SFP+
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
60.1 Watt
Miscellaneous
Rack Mounting Kit
Included
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
