General
Device Type

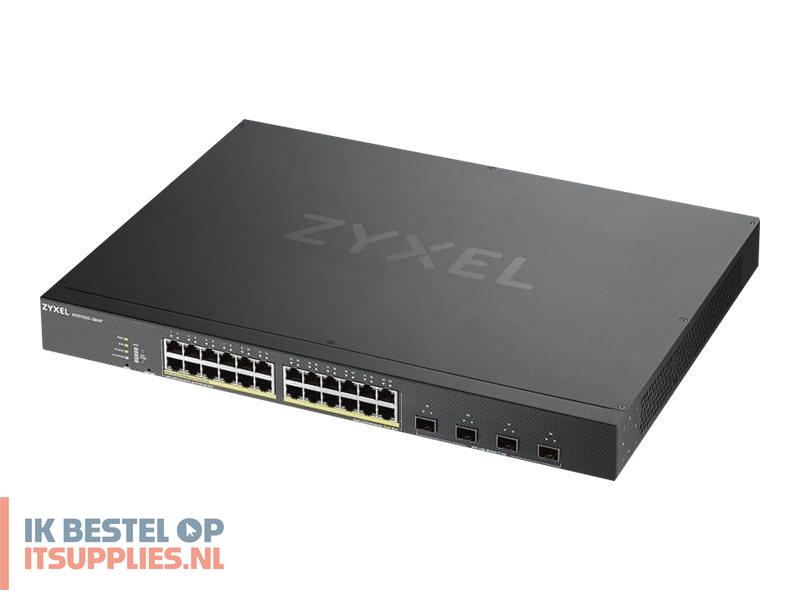

Switch - 28 ports - smart
Enclosure Type
Rack-mountable 1U
Ports
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 128 Gbps ¦ Forwarding rate: 95.2 Mpps
Capacity
IPv4 forwarding table entries: 512 ¦ IPv6 forwarding table entries: 512 ¦ Routing tables: 32 ¦ IPv4 interfaces: 32 ¦ IPv6 interfaces: 32 ¦ Layer 2 multicast groups: 1000
MAC Address Table Size
16K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS
Encryption Algorithm
SSL, SHA-2
Authentication Method
RADIUS
Features
Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, Unicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless, DHCP relay, Port Security, NTP server, SNMP trap, DHCP client, Management Information Base (MIB), Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), port isolation, Class of Service (CoS), 802.1x authentication, Duplicated Address Detection, cloud managed, 1.5MB packet buffer, IGMP filtering, IGMP throttling, CPU protection, Internet Control Message Protocol (ICMP), DLF (Destination Lookup Failure), Loop Guard, Voice VLAN, Guest VLAN, Weighted Round Robin (WRR), port-based VLAN, Unknown Storm Control, VLAN trunking
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Expansion / Connectivity
Interfaces
24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
471 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
BSMI, EMC, RoHS, FCC Part 15 A, LVD
Dimensions & Weight
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)
