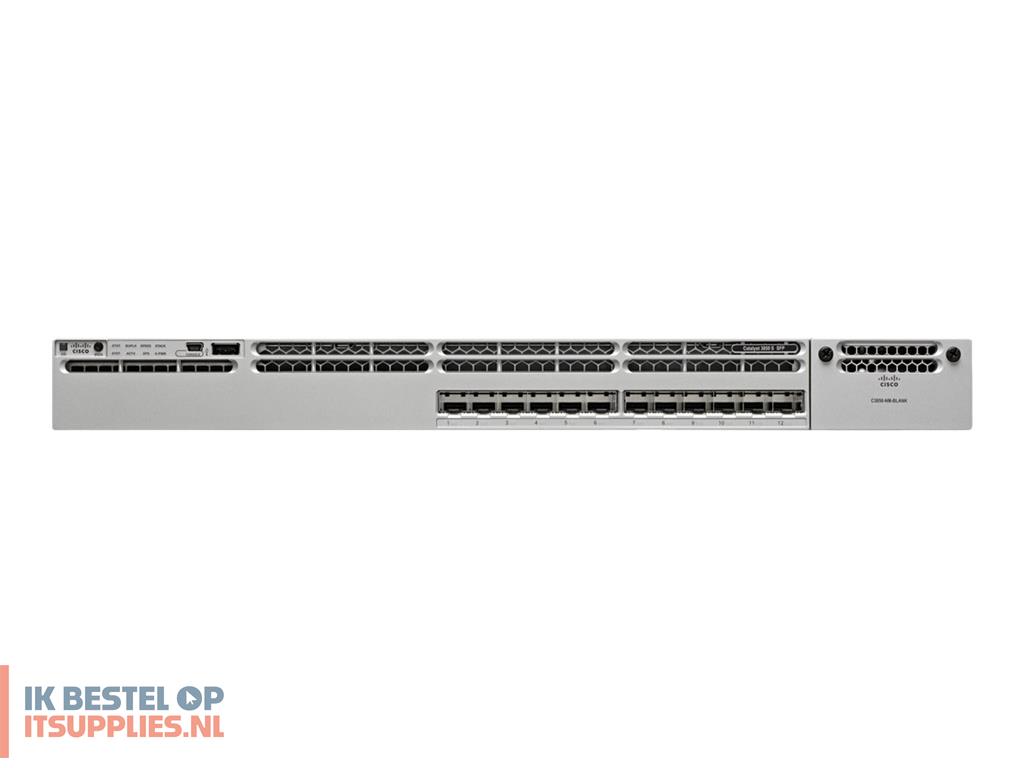

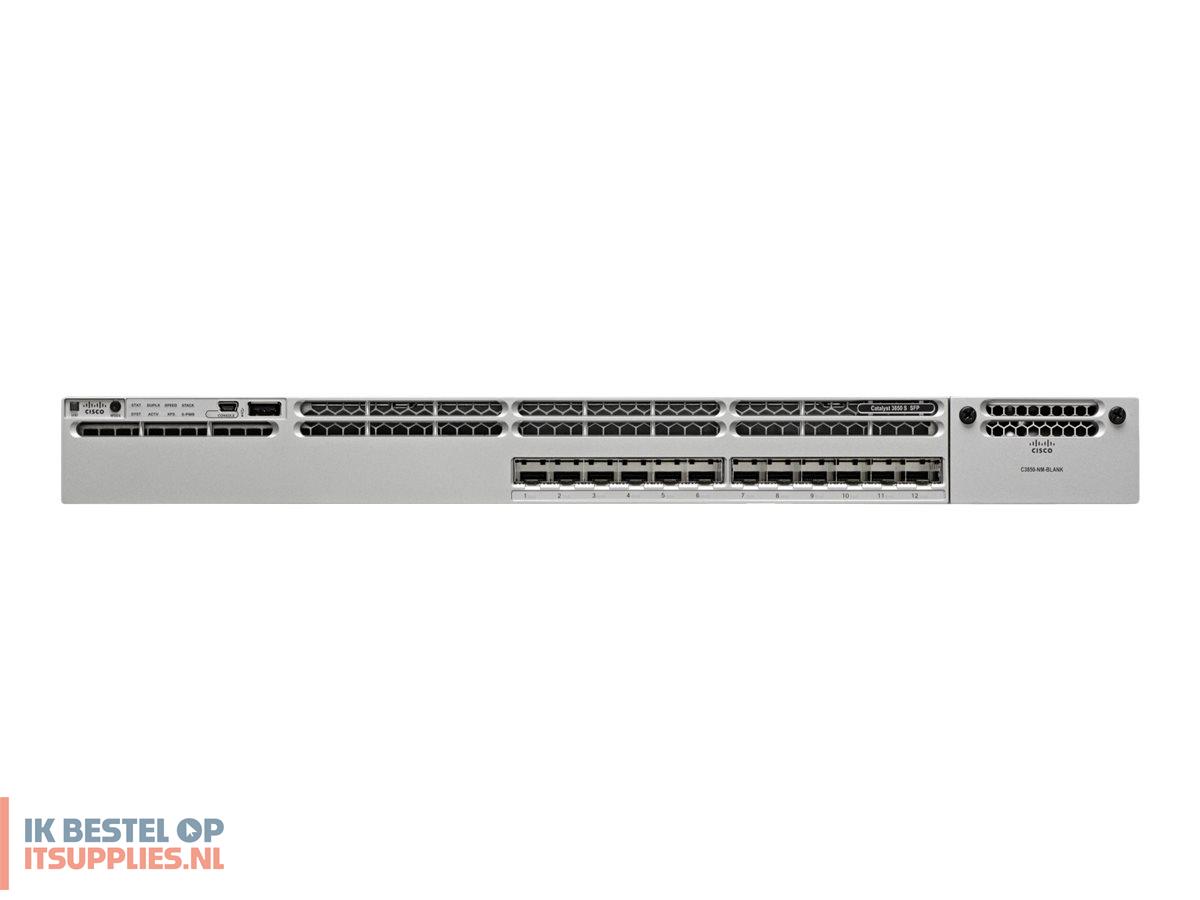

Cisco Catalyst 3850-12S-S - Switch

Productcode: WS-C3850-12S-S | EAN/UPC: 0882658660436

€ 10.323,61 excl.btw

Cisco Catalyst 3850-12S-S - Switch - L3 - Managed - 12 x Gigabit SFP - desktop, rack-mountable

Converged wired plus wireless access
Flexible NetFlow (FNF)
Advanced wired plus wireless QoS capabilities
Provides a rich set of security features

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Cisco Catalyst 3850-12S-S - Switch

€ 12491,57 incl. 21% btw € 10323,61excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Cisco Catalyst 3850-12S-S - Switch - L3 - Managed - 12 x Gigabit SFP - desktop, rack-mountable

Product features

Converged wired plus wireless access
The Cisco Catalyst 3850 is the first stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE software-based platform. With this, Cisco has pioneered a host of rich capabilities such as high availability based on stateful switchover (SSO) on stacking, granular QoS, security, and Flexible Netflow (FNF) across wired and wireless in a seamless fashion.
Flexible NetFlow (FNF)
Full visibility into the wired plus wireless traffic is achieved because of the access point Control and Provisioning of Wireless Access Points (CAPWAP) tunnel termination on the switch. This helps identify users and user traffic flows in order to identify potential attackers and take corrective action at the access layer before the attack penetrates further into the network. This is achieved using FNF, which monitors every single flow entering and exiting the switch stack for wired and wireless users. It also helps identify the top wired/wireless talkers and enforce appropriate bandwidth provisioning policies.
Advanced wired plus wireless QoS capabilities
The 3850 switch has advanced wired plus wireless QoS capabilities. It uses the Cisco modular QoS command line interface (MQC). The switch manages wireless bandwidth using unprecedented hierarchical bandwidth management starting at the per-access-point level and drilling further down to per-radio, per-service set identification (SSID), and per-user levels. This helps manage and prioritize available bandwidth between various radios and various SSIDs (enterprise, guest, and so on) within each radio on a percentage basis. The switch is also capable of automatically allocating equal bandwidth among the connected users within a given SSID.
Provides a rich set of security features
The Cisco Catalyst 3850 provides a rich set of security features for wired plus wireless users. Features such as IEEE 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, IP Source Guard and control plane protection, wireless intrusion prevention systems (WIPSs), and so on enable protection against unauthorized users and attackers. With a variety of wired plus wireless users connecting to the network, the switch supports session-aware networking, in which each device connected to the network is identified as one session, and unique access control lists (ACLs) and/or QoS policies can be defined and applied using the ISE for each of these sessions, providing better control on the devices connecting to the network.

Specificaties

General

Device Type

Switch - 12 ports - L3 - Managed - stackable

Enclosure Type

Desktop, rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

12 x Gigabit SFP

Performance

Switching capacity: 68 Gbps
Stacking bandwidth: 480 Gbps
Forwarding performance: 68.4 Mpps

Capacity

IPv4 routes: 24000
NetFlow entries: 24000
Switched virtual interfaces (SVIs): 1000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

RIP-1, RIP-2, EIGRP, RIPng

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI

Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Features

Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, VRF-Lite, MLD snooping, DAI, STP Root Guard, UDLD, Rapid PVST+, IPv4 support, SRR, LACP, RSPAN, layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, FNF

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

RAM

4 GB

Flash Memory

2 GB

Status Indicators

Port transmission speed, port duplex mode, system, status, PoE

Expansion / Connectivity

Interfaces

12 x 1000Base-X SFP
1 x USB Type A
1 x management (mini-USB) Type B
1 x management (RS-232) RJ-45
1 x management (Gigabit LAN) RJ-45
2 x network stack device

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Power

Power Device

Internal power supply

Installed Qty

Max Supported Qty

Power Redundancy

Optional

Power Redundancy Scheme

1+1 (with optional power supply)

Power Provided

350 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Miscellaneous

MTBF

315,840 hours

Compliant Standards

CISPR 22 Class A, GOST, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, KCC, RoHS, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR 22, EN 55022 Class A

Software / System Requirements

Software Included

Cisco IOS IP Base

Dimensions & Weight

Width

44.5 cm

Depth

45 cm

Height

4.45 cm

Weight

7.02 kg

Manufacturer Warranty

Service & Support

Limited warranty - advance parts replacement - lifetime - response time: next business day
Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Humidity Range Operating

10 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
