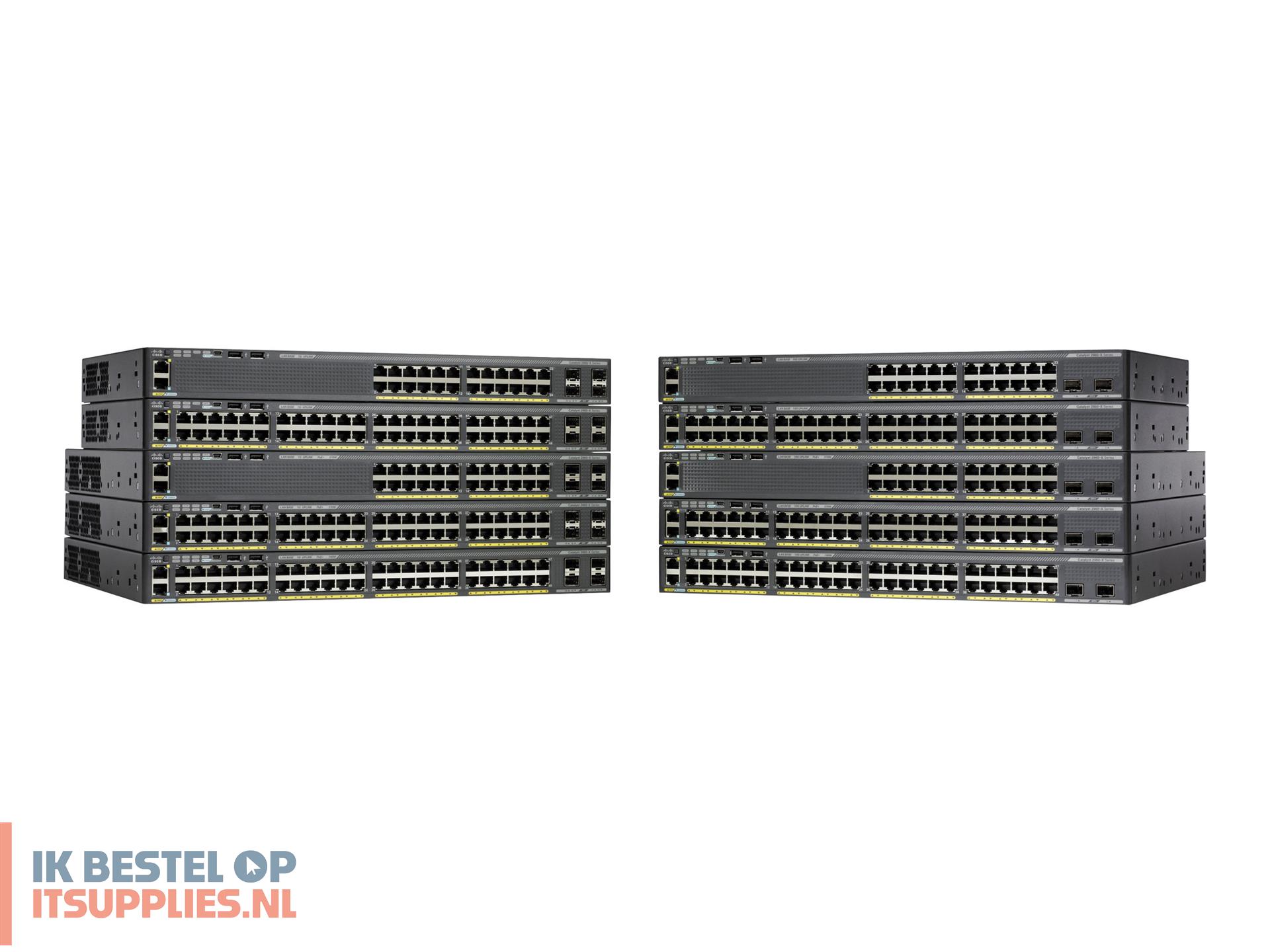

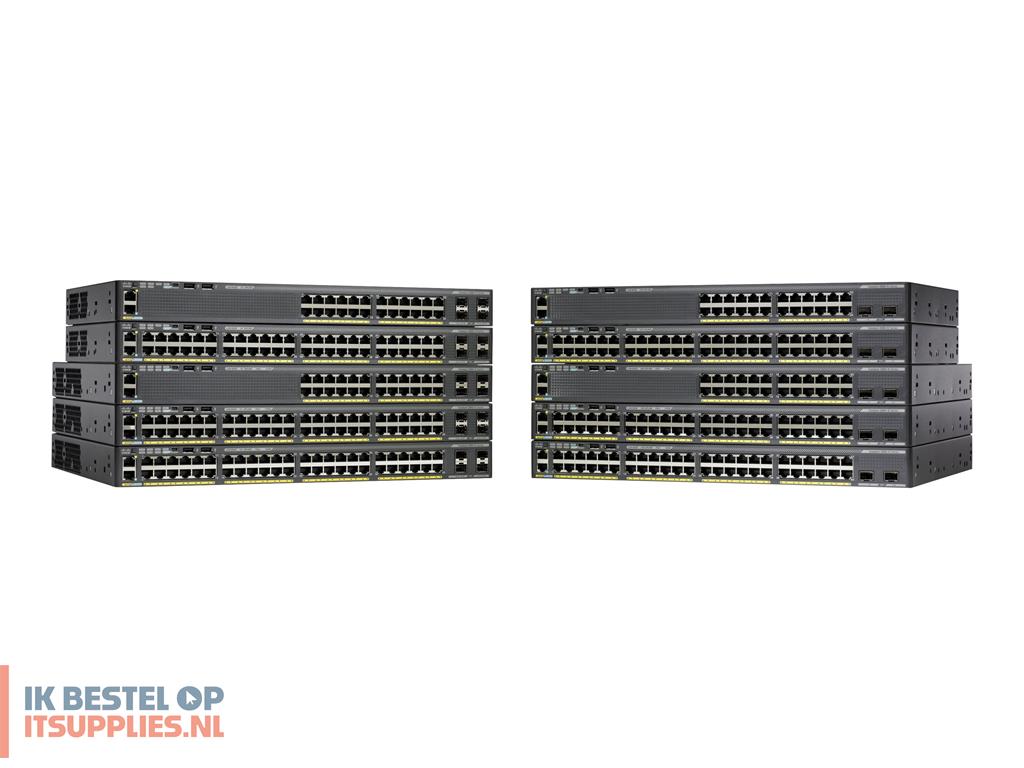

Cisco Catalyst 2960XR-24PD-I - Switch

Switch - 24 ports - L3 - Managed - stackable

Desktop, rack-mountable 1U

Gigabit Ethernet

24 x 10/100/1000 (PoE+) + 2 x SFP+

PoE+

370 W

Switching capacity: 216 Gbps
Forwarding performance: 95.2 Mpps

Virtual interfaces (VLANs): 1023

9216 bytes

8

OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI

Secure Shell (SSH), RADIUS, TACACS+

Layer 2 switching, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, MLD snooping, DAI, UDLD, SRR, LACP, RSPAN, layer 3 load balancing, PVRST, Energy Efficient Ethernet, MVR, SPQ, CoS

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

1 x ARM: 600 MHz

512 MB

128 MB

Port status, port transmission speed, port duplex mode, system, link/activity

24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE+
2 x SFP+
1 x USB Type A
1 x USB Type B
1 x console RJ-45
1 x management (LAN) RJ-45

Internal power supply - hot-plug

1

2

Yes

1+1

640 Watt

AC 120/230 V (50/60 Hz)

322,740 hours

CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, CB, ICES-003 Class A, RoHS, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, KN22, KN24, EN 300 386

Cisco IOS IP Lite

44.5 cm

40.8 cm

4.45 cm

6.2 kg

Limited warranty - lifetime

-5 °C

45 °C

10 - 95% (non-condensing)

-25 °C

70 °C

10 - 95% (non-condensing)
