General
Device Type

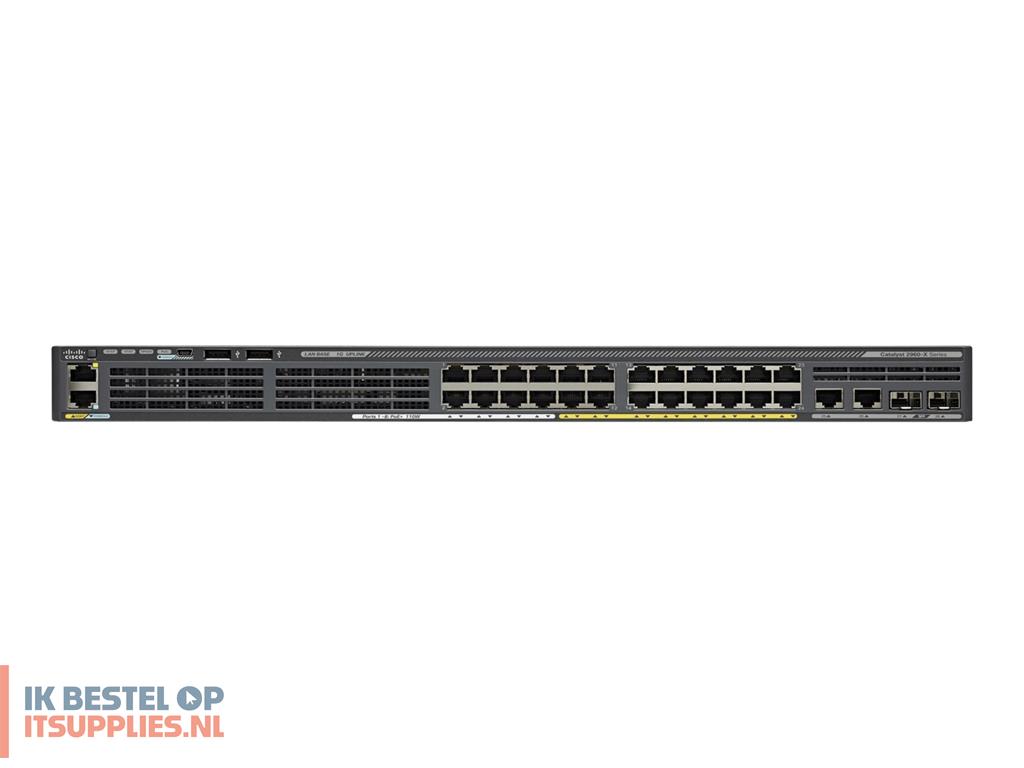

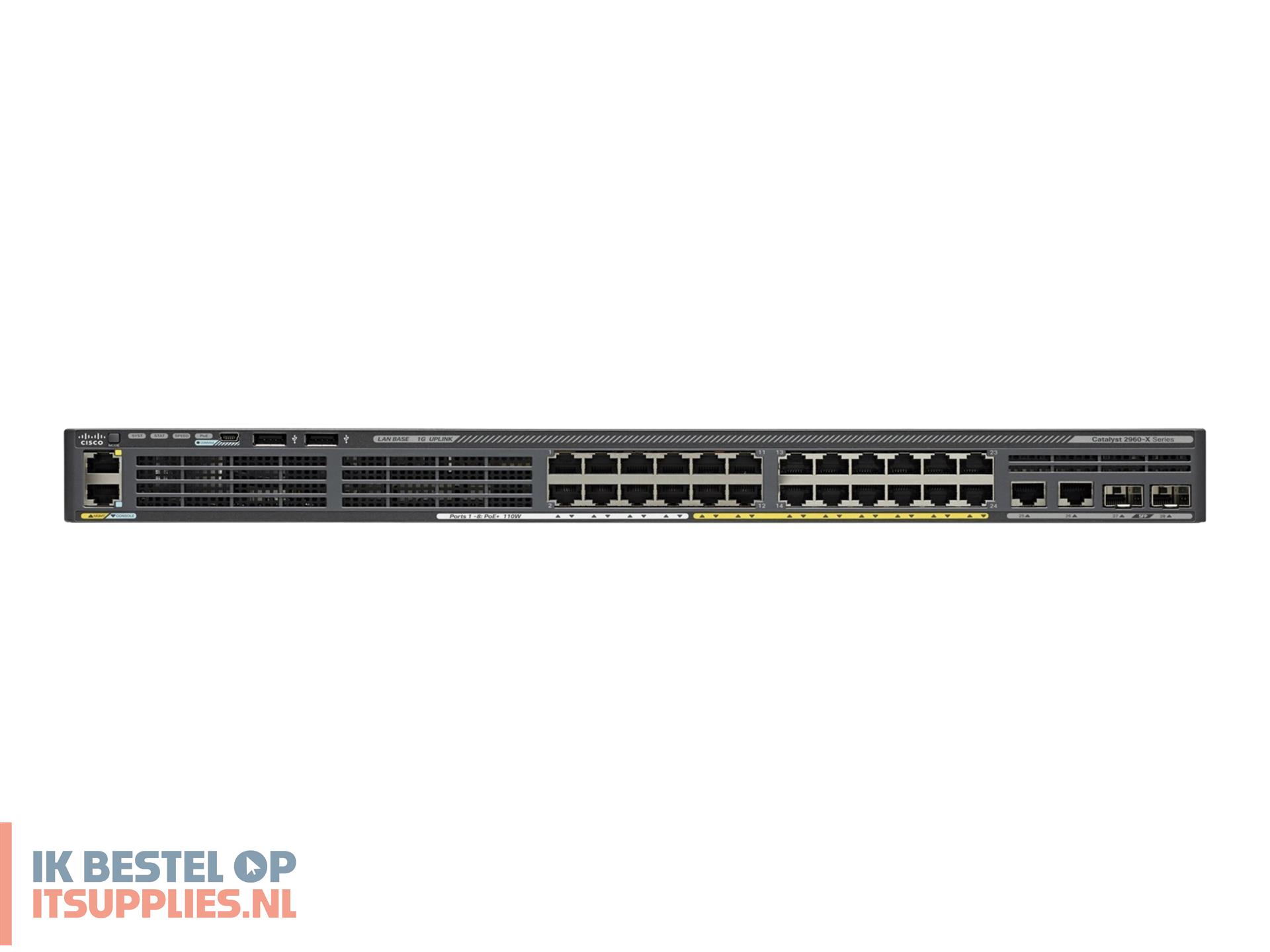

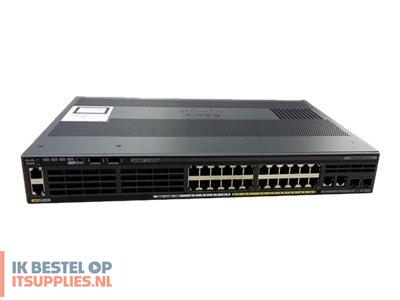

Switch - 24 ports - Managed
Enclosure Type
Desktop, rack-mountable 1U
Ports
24 x 10/100/1000 (8 PoE+) + 2 x Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 71.4 Mpps
Capacity
Active VLANs: 1023
Jumbo Frame Support
9216 bytes
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features
Full duplex capability, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), DiffServ Code Point (DSCP) support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Status Indicators
Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE, link/activity
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45 3 ports (PoE+) / 7 ports (PoE) - 30 W ¦ 16 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T RJ-45 uplink ¦ 2 x SFP uplink ¦ 1 x 100Base-TX RJ-45 management ¦ 1 x console RJ-45 ¦ 2 x USB Type A ¦ 1 x mini-USB Type B management
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Features
Redundant Power System (RPS) connector
Miscellaneous
Compliant Standards
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, RoHS 2011/65/EU, EN 300386
Software / System Requirements
Software Included
Cisco IOS LAN Base
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)
