General
Device Type

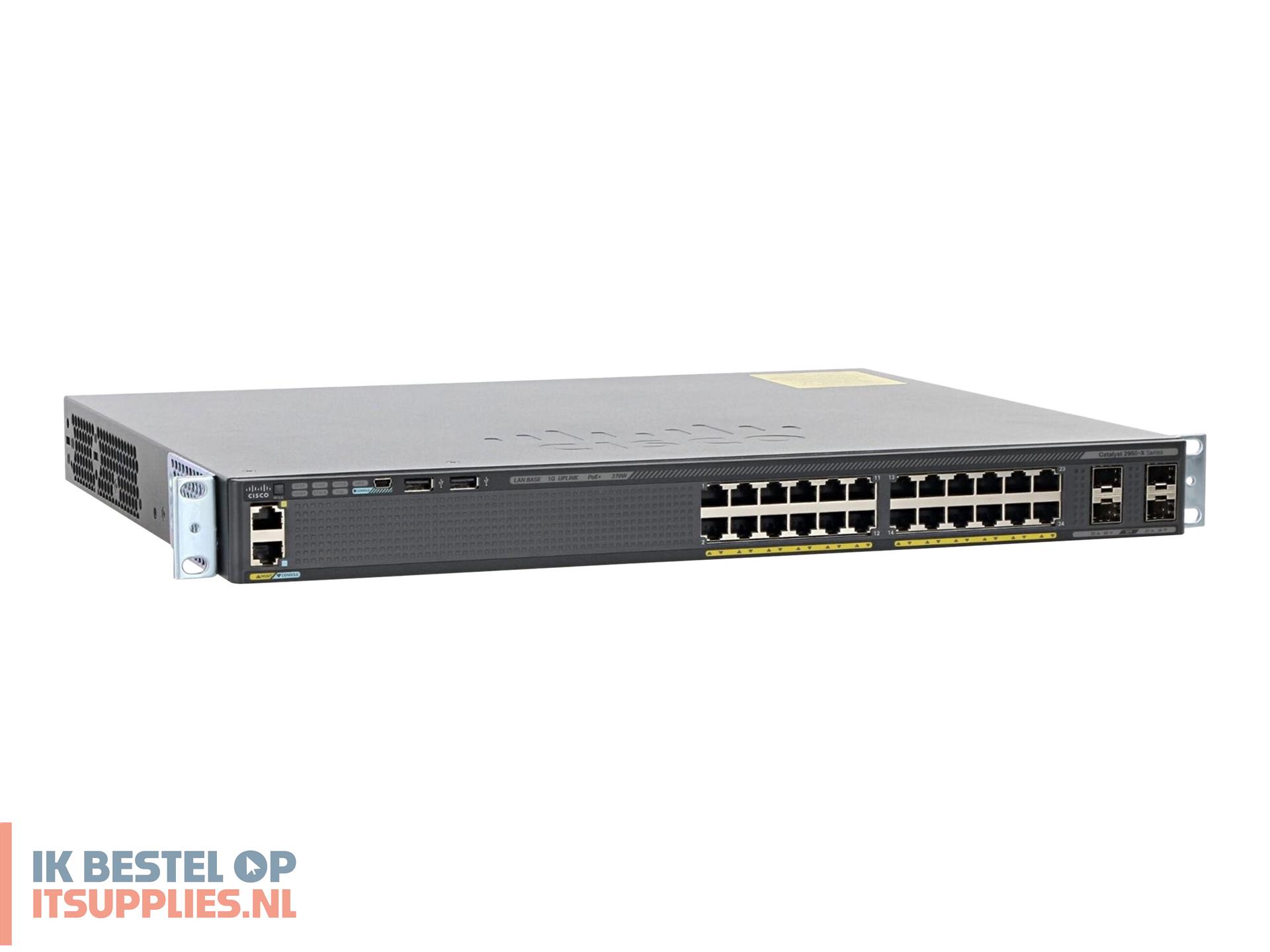

Switch - 24 ports - Managed - stackable
Enclosure Type
Desktop, rack-mountable 1U
Ports
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 71.4 Mpps
Capacity
Virtual interfaces (VLANs): 1023
Jumbo Frame Support
9216 bytes
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features
Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Cisco FlexStack Plus
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Status Indicators
Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE, link/activity
Expansion / Connectivity
Interfaces
24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 PoE+ - 30 W ¦ 1 x console console - RJ-45 - RJ-45 ¦ 1 x mini-USB console - mini-USB Type B - Type B management ¦ 2 x USB Type A ¦ 1 x 1000Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 management ¦ 4 x SFP (mini-GBIC) - SFP uplink
Expansion Slots
1 (total) / 1 (free) x Stacking Module
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Features
Redundant Power System (RPS) connector
Miscellaneous
Compliant Standards
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, EN 300 386
Software / System Requirements
Software Included
Cisco IOS LAN Base
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 95% (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)
