General
Device Type

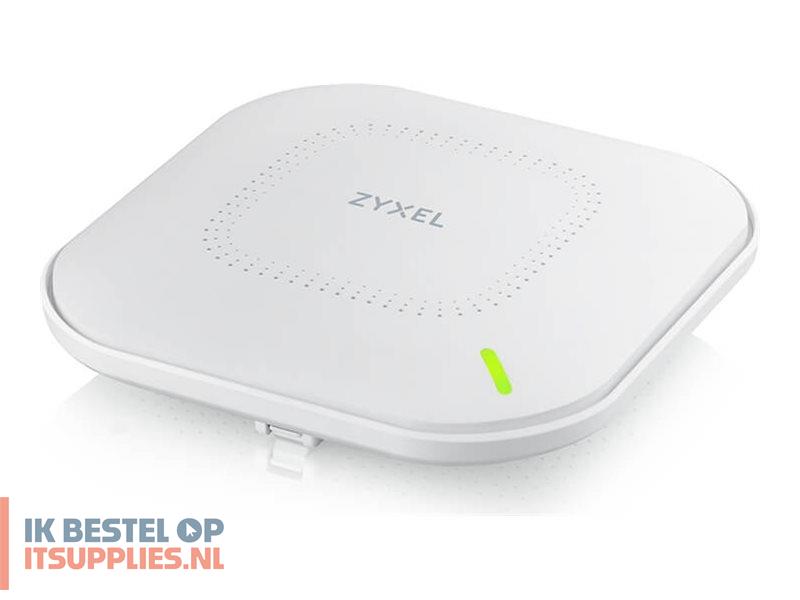

Radio access point
Processor / Memory / Storage
Processors Installed
Qualcomm
Networking
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Remote Management Protocol
SNMP, CLI
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (2.4 GHz): 575 Mbps
Maximum data rate (5 GHz): 2400 Mbps
Features
Load balancing, VLAN support, DiffServ support, manageable, MAC address filtering, Wireless Distribution System (WDS) support, firmware upgradable, surge protection, Wi-Fi Multimedia (WMM) support, rogue access point detection, MU-MIMO technology, Unscheduled Automatic Power Save Delivery (U-APSD), band steering, dual band, Fast Roaming, Wireless Mesh support, Orthogonal Frequency Division Multiple Access (OFDMA), 4x4 MIMO technology, BSS Coloring
Encryption Algorithm
WPA, WPA2, WEP, WPA3, WPA3-Enterprise, WPA2-Personal
Authentication Method
RADIUS, Extensible Authentication Protocol (EAP)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v
Aerial
Expansion / Connectivity
Interfaces
1 x 1/2.5GBase-T (PoE) - RJ-45 - 30 W
1 x 1000Base-T (uplink) - RJ-45
Miscellaneous
Included Accessories
Mounting screws, mounting plate
Compliant Standards
EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 301 489-17
Power
Power Over Ethernet (PoE) Supported
PoE+
Voltage Required
DC 12 V / PoE
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
