General
Device Type

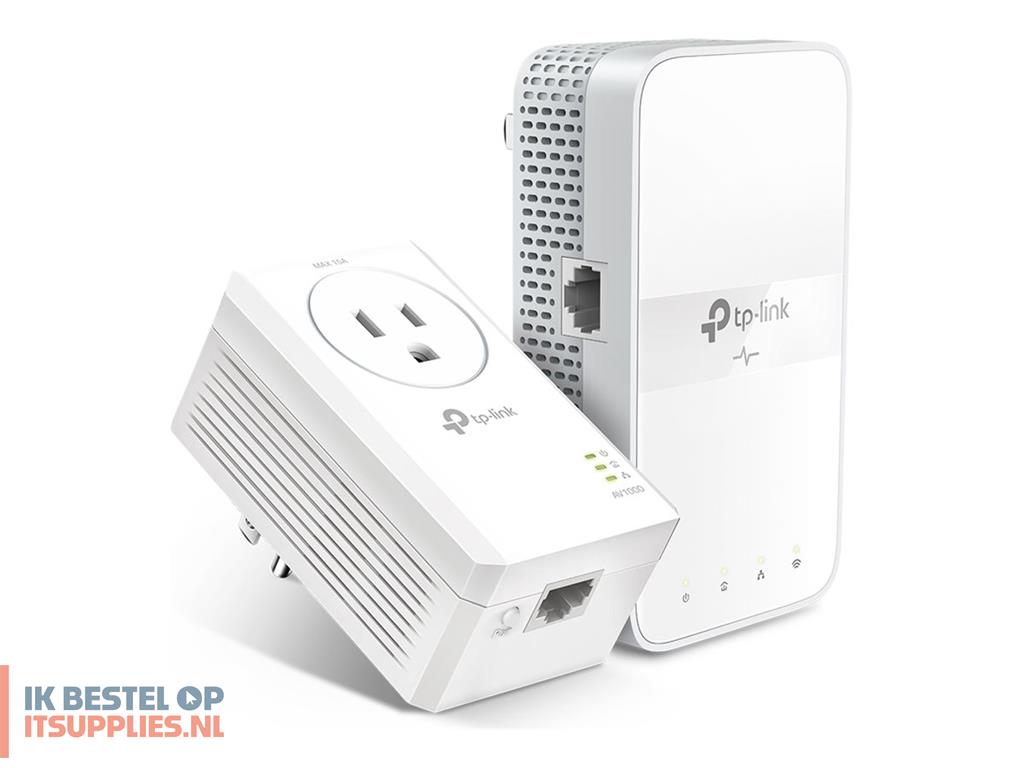

Powerline adapter kit
Kit Content
TL-PA7017P powerline adapter, TL-WPA7617 powerline adapter
Enclosure Type
Wall-pluggable
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901, IEEE 802.11ac
Frequency Band
2.4 GHz / 5 GHz
Performance
Maximum data rate (2.4 GHz): 300 Mbps
Maximum data rate (5 GHz): 867 Mbps
Routing Protocol
IGMPv2, IGMP, IGMPv3
Encryption Algorithm
WPA-PSK, 128-bit AES, WPA2-PSK, WEP
Authentication Method
Radio Service Set ID (SSID)
Features
Integrated power socket, Wi-Fi Clone button, LED on/off button, Wi-Fi Auto-Sync, pair button, 4K HD video streaming, 16 A power outlet output
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV, HomePlug AV 2.0, IEEE 1901, IEEE 802.11ac, Plug and Play, FCC, RoHS, EAC
Status Indicators
Port status, power, powerline, Wi-Fi
Line Properties
Expansion / Connectivity
Interfaces
1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - on extender
1 x HomePlug AV 2.0
Power
Power Device
Internal power supply
Miscellaneous
Cables Included
2 x network cable
Software / System Requirements
OS Required
Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
