General
Device Type

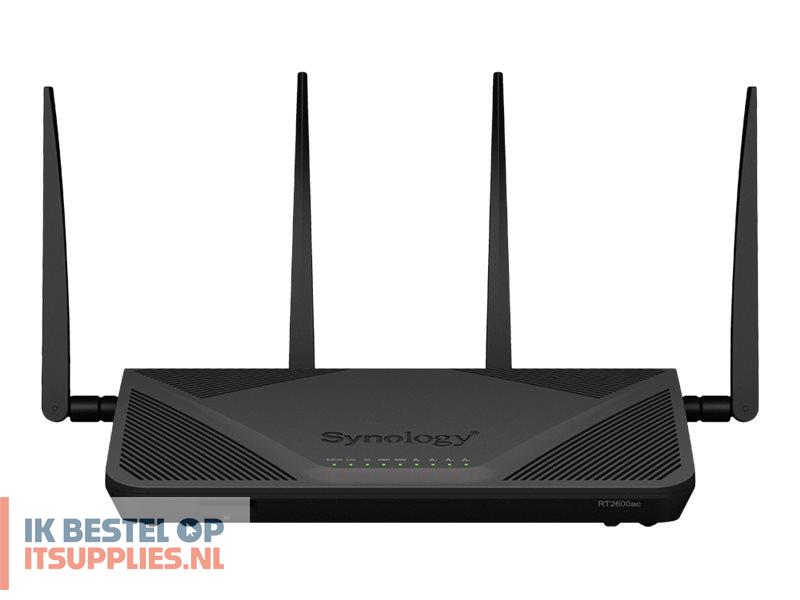

Wireless router - 4-port switch (integrated)
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band
2.4 GHz / 5 GHz
Data Transfer Rate
2.53 Gbps
Capacity
Connection / user qty: 120
Network / Transport Protocol
PPTP, L2TP, IPSec, PPPoE, FTP, DDNS
Routing Protocol
IGMP, static IP routing
Remote Management Protocol
SNMP, SSH
Encryption Algorithm
WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WEP
Authentication Method
RADIUS
Features
Firewall protection, DMZ port, DHCP support, NAT support, VPN support, wake on LAN (WOL), IGMP snooping, DoS attack prevention, dynamic DNS server, manageable, print server, MAC address filtering, IPv6 support, VPN passthrough, URL filtering, parental control, Access Point operational mode, firmware upgradable, download client, Quality of Service (QoS), RADIUS support, SSH support, DHCP server, SMS alert, BitTorrent Client, Wireless Client Mode, DNS server, DLNA Media Server, port triggering, Stateful Packet Inspection Firewall (SPIF), eMule client, 3G/4G USB Dongle Support, Traffic Control, DHCP client, e-mail notification, 4T4R MIMO technology, VPN Server, SNMP support, Wi-Fi Protected Setup (WPS v2), beamforming technology
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, DLNA CERTIFIED, IEEE 802.11ac, FCC Class B certified, RoHS, BSMI Class B, NCC, iDA, RCM
Status Indicators
Power, status, WAN, LAN
Expansion / Connectivity
Interfaces
LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A ¦ USB 2.0: 1 x 4 pin USB Type A
Aerial
Aerial
External detachable
Directivity
Omni-directional
Power
Power Device
External power adapter
Voltage Required
AC 100/230 V (50/60 Hz)
Power Consumption Operational
10.8 Watt
Miscellaneous
Cables Included
1 x network cable
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95%
