General
Device Type

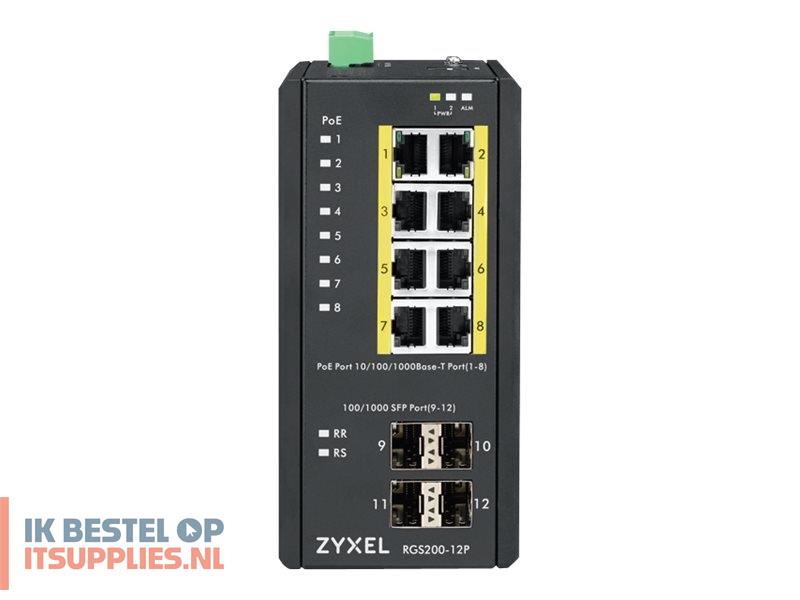

Switch - 12 ports - Managed
Enclosure Type
Rack-mountable, DIN rail mountable
Ports
8 x 10/100/1000 (PoE+) + 4 x SFP
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 24 Gbps
Forwarding performance: 17.86 Mpps
Capacity
Layer 2 multicast groups: 256
ACL: 256
Queues per port: 8
MAC Address Table Size
8K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI
Encryption Algorithm
SHA-2, 2048-bit SSL
Authentication Method
TACACS+
Features
Flow control, auto-negotiation, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, reset button, Cable Diagnostics Function, fanless, LLDP support, DHCP relay, Port Security, Traffic Control, DHCP client, Management Information Base (MIB), 512KB packet buffer, dual firmware images, Strict Priority Queuing (SPQ), port isolation, Class of Service (CoS), tagged VLAN, 8KV ESD Protector, DiffServ Code Point (DSCP) support, Storm Control, ARP inspection, Back Pressure Support, Internet Control Message Protocol (ICMP), Management Information Base (MIB) II, failover protection, Static Link Aggregation, schedule PoE, 2 KV ligthning surge protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45 PoE+
4 x SFP
Power
Power Device
Internal power supply
Installed Qty
2 (installed) / 2 (max)
Voltage Required
DC 12 - 58 V
Power Consumption Operational
255 Watt
Miscellaneous
Included Accessories
DIN-rail mounting kit
Rack Mounting Kit
Included
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Storage
5 - 90% (non-condensing)
