General
Device Type

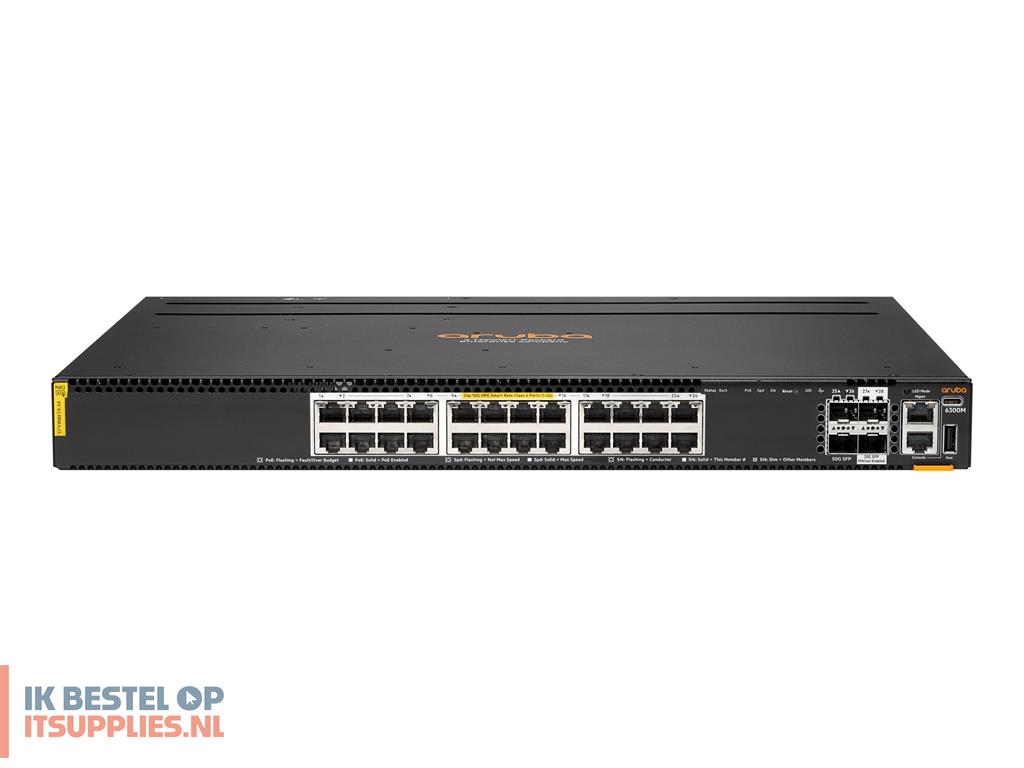

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Ports
24 x 100/1000/2.5G/5G/10GBase-T (4PPoE) + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 10 Gigabit / 25 Gigabit SFP56
Power Over Ethernet (PoE)
4PPoE
Performance
Switching capacity: 880 Gbps
Throughput: 654 Mpps
Latency (1 Gbps): 4.24 µs
Latency (10 Gbps): 1.5 µs
Latency (25 Gbps): 2.91 µs
Latency (50 Gbps): 3.49 µs
Stacking bandwidth: 200 Gbps
Capacity
Switched virtual interfaces (SVIs): 1024
IPv4 host table capacity: 49152
IPv6 host table capacity: 49152
IPv4 routes (Unicast): 61000
IPv6 routes (Unicast): 61000
IPv4 routes (Multicast): 8192
IPv6 routes (Multicast): 8192
IGMP groups: 8192
MLD groups: 8192
IPv4 ACL entries (ingress): 20480
IPv6 ACL entries (ingress): 5120
MAC ACL entries (ingress): 20480
IPv4 ACL entries (egress): 8192
IPv6 ACL entries (egress): 2048
MAC ACL entries (egress): 8192
MAC Address Table Size
32768 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), MSTP, RSTP, STP
Remote Management Protocol
SNMP, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, High Availability, sFlow, STP support, RSTP support, PVST, MSTP support, ACL support, QoS, DWRR, LLDP support, fan tray, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, BSR Mechanism, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt
Processor
1 x ARM: 1.8 GHz
Expansion / Connectivity
Interfaces
24 x 10/100/1000 Base-T RJ-45
2 x 10Gbit/25Gbit/50Gbit SFP56
2 x 10Gbit/25Gbit SFP56
1 x USB-C console
1 x console RJ-45
1 x USB Type A host
Power
Power Device
Internal power supply - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
(50/60 Hz)
Miscellaneous
Included Accessories
Rack kit (2 post)
Rack Mounting Kit
Included
Compliant Standards
EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, CNS 14336-1, IEC 60825-1:2007 Class 1, CISPR 32:2015+COR1:2016, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 55035:2017, EN 62368-1:2014+A11:2017, EN 55032:2015+AC:2016 Class A, IEC 62368-1: 2014, CISPR 35:2016 Class A
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 95% (non-condensing)
