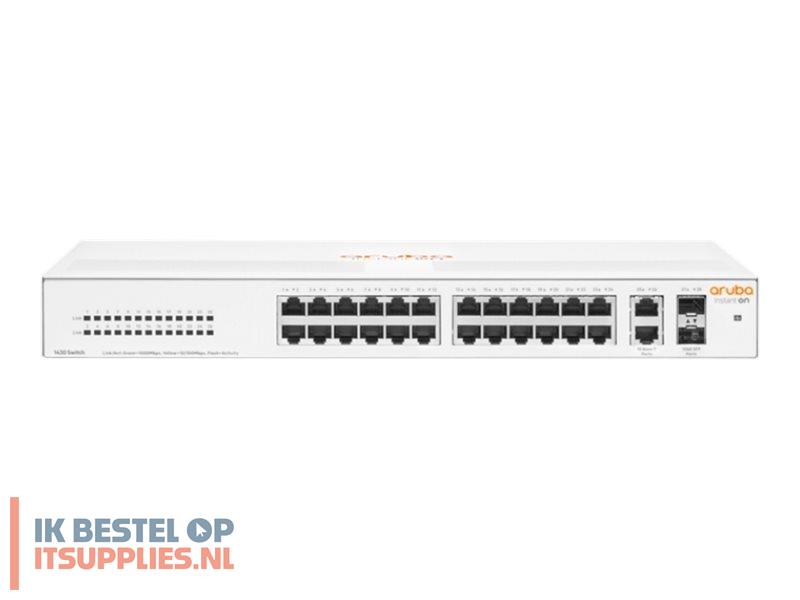

HPE Aruba Instant On 1430 26G 2SFP Switch

Switch - 26 ports - unmanaged

Desktop, rack-mountable, wall-mountable 1U

Gigabit Ethernet

26 x 10/100/1000 + 2 x 100/1000 SFP

Throughput: 41.68 Mpps ¦ Switching capacity: 56 Gbps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.9 µs

MAC address entries: 16384

16384 entries

9216 bytes

Flow control, auto-sensing per device, MDI/MDI-X switch, wall mountable, Spanning Tree Protocol (STP) support, fanless, 12MB packet buffer, VoIP support, DiffServ Code Point (DSCP) support

IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az

32 MB

Port status, link/activity

26 x 10/100/1000 Base-T RJ-45 ¦ 2 x 100/1000 SFP

Internal power supply

AC 100-240 V (50/60 Hz)

0.4 A

8 Watt

Rack kit (2 post)

171.9 years

EN 61000-3-2, IEC 61000-3-2, ICES-003 Class B, VCCI Class B, FCC CFR47 Part 15 B Class B, AS/NZS CISPR 32 Class B, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, CNS 13438 Class B, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, UL 62368-1, EN 55032:2015 Class B, EN 55035, CISPR 35, CISPR 32:2015 Class B, IEC/EN 61000-3-3, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, KS C 9835, KS C 9832 Class B

BTO

English / Europe

38.8 cm

22.5 cm

4.4 cm

2.27 kg

Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase

0 °C

40 °C

15 - 95% (non-condensing)

-40 °C

70 °C

15 - 90% (non-condensing)
