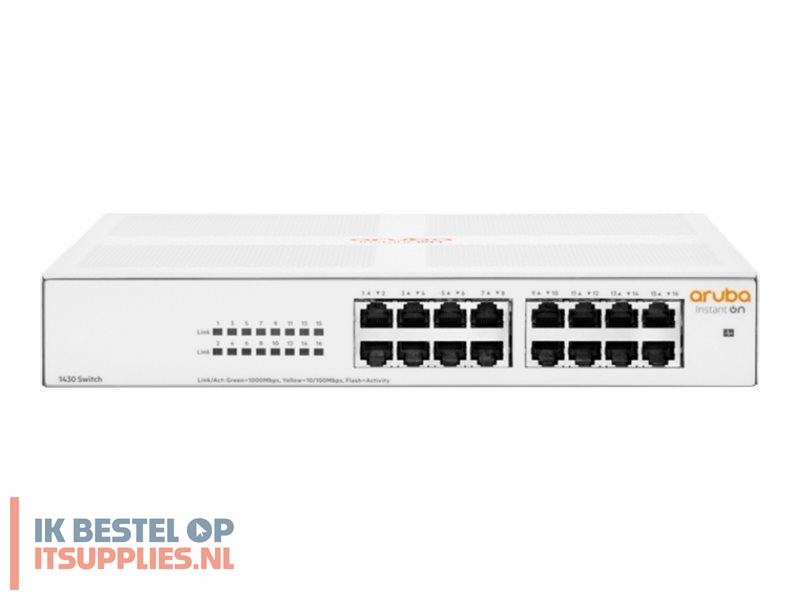

HPE Aruba Instant On 1430 16G Class4 PoE 124W Switch

Switch - 16 ports - unmanaged

Desktop, rack-mountable, wall-mountable 1U

Gigabit Ethernet

16 x 10/100/1000 (PoE Class 4)

PoE

124 W

Throughput: 23.8 Mpps ¦ Switching capacity: 32 Gbps ¦ Latency (100 Mbps): 2.7 µs ¦ Latency (1 Gbps): 1.8 µs

MAC address entries: 8192

8192 entries

9216 bytes

Flow control, auto-sensing per device, MDI/MDI-X switch, wall mountable, Spanning Tree Protocol (STP) support, fanless, 2MB packet buffer, VoIP support, DiffServ Code Point (DSCP) support, Energy-Efficient Ethernet (EEE)

IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az

128 KB EEPROM

Port status, link/activity, PoE max

16 x 10/100/1000 Base-T (PoE) RJ-45

Internal power supply

AC 100-127/200-240 V (50/60 Hz)

1.7 A

5 Watt

Rack kit (2 post)

126.1 years

EN 61000-3-2, IEC 61000-3-2, ICES-003 Class B, VCCI Class B, FCC CFR47 Part 15 B Class B, AS/NZS CISPR 32 Class B, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, CNS 13438 Class B, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, UL 62368-1, EN 55032:2015 Class B, EN 55035, CISPR 35, CISPR 32:2015 Class B, IEC/EN 61000-3-3, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, KS C 9835, KS C 9832 Class B

BTO

English / Europe

27.5 cm

26 cm

4.4 cm

2.09 kg

Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase

0 °C

40 °C

15 - 95% (non-condensing)

-40 °C

70 °C

15 - 90% (non-condensing)
