General
Device Type

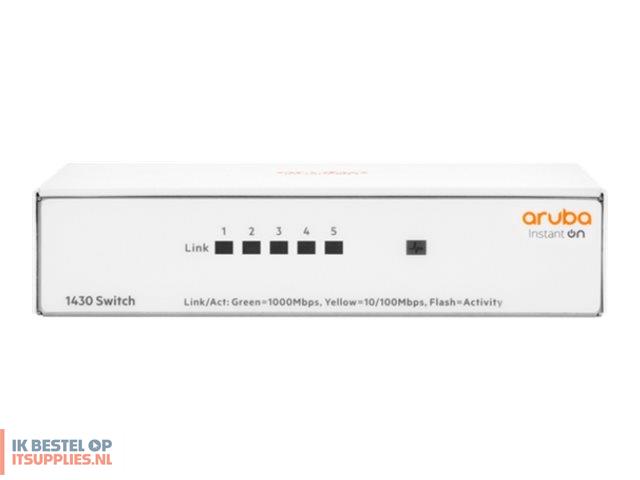

Switch - 5 ports - unmanaged
Enclosure Type
Desktop, wall-mountable
Performance
Throughput: 7.44 Mpps
Switching capacity: 10 Gbps
Latency (100 Mbps): 3.81 µs
Latency (1 Gbps): 0.93 µs
Capacity
MAC address entries: 8192
MAC Address Table Size
8192 entries
Jumbo Frame Support
9216 bytes
Features
Flow control, auto-sensing per device, MDI/MDI-X switch, wall mountable, STP support, fanless, 1MB packet buffer, VoIP support, DSCP support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status Indicators
Port status, link/activity
Expansion / Connectivity
Interfaces
5 x 10/100/1000 Base-T RJ-45
Power
Power Device
External power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Electric Current Required
1 A
Power Consumption Stand by
1 Watt
Miscellaneous
Compliant Standards
EN 61000-3-2, IEC 61000-3-2, ICES-003 Class B, VCCI Class B, FCC CFR47 Part 15 B Class B, AS/NZS CISPR 32 Class B, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, CNS 13438 Class B, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, UL 62368-1, EN 55032:2015 Class B, EN 55035, CISPR 35, CISPR 32:2015 Class B, IEC/EN 61000-3-3, IEC/EN 60825-1:2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, KS C 9835, KS C 9832 Class B
Localisation
English / Europe
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Technical support - live chat - lifetime
Technical support - phone consulting - 90 days from date of purchase
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 90% (non-condensing)
