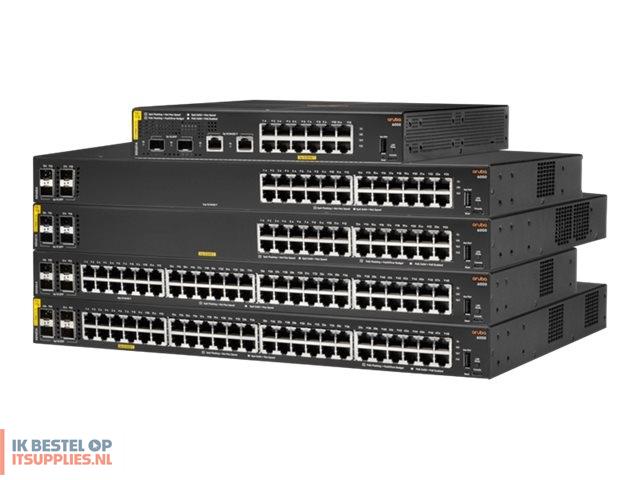

HPE Aruba 6000 48G Class4 PoE 4SFP 370W Switch

Switch - 48 ports - Managed

Side to side airflow rack-mountable 1U

Gigabit Ethernet

48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP

PoE

370 W

Packet buffer size: 12.38 MB
Throughput: 77.3 Mpps
Switching capacity: 104 Gbps
Latency (1 Gbps): 1.9 µs

Switched virtual interfaces (SVIs): 16
ARP entries: 1024
IPv4 routes (Unicast): 512
IPv6 routes (Unicast): 512
IGMP groups: 512
MLD groups: 512
IPv4 ACL entries (ingress): 256
IPv6 ACL entries (ingress): 128
MAC ACL entries (ingress): 256

8192 entries

9198 bytes

IGMPv2, IGMPv3

SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS

SSL

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, MSTP support, TFTP support, ACL support, MLD snooping, TPM, fanless, LACP support, LLDP support, DHCP client, MIB, NDP, SNMP support, ICMP, DNS client, LLDP-MED, UDP, RSTP, IPv6 addressing

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az

1 x ARM A9: 1.016 GHz

4 GB DDR3 SDRAM

16 GB

48 x 10/100/1000 Base-T RJ-45 PoE Class 4 - 370 W
4 x Gigabit LAN SFP
1 x USB Type A
1 x USB-C console

Internal power supply

AC 100-240 V (50/60 Hz)

45 Watt

CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950, CNS 13438, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A, CISPR 35, EN 55035:2017, EN 55032:2015/AC:2016-07 Class A, EN55024:2010:A1, IEC 62368-1 Second Edition

44.2 cm

30.48 cm

4.39 cm

5.02 kg

Limited warranty - lifetime

0 °C

45 °C

15 - 95% (non-condensing)

15 - 90% (non-condensing)
