General
Device Type

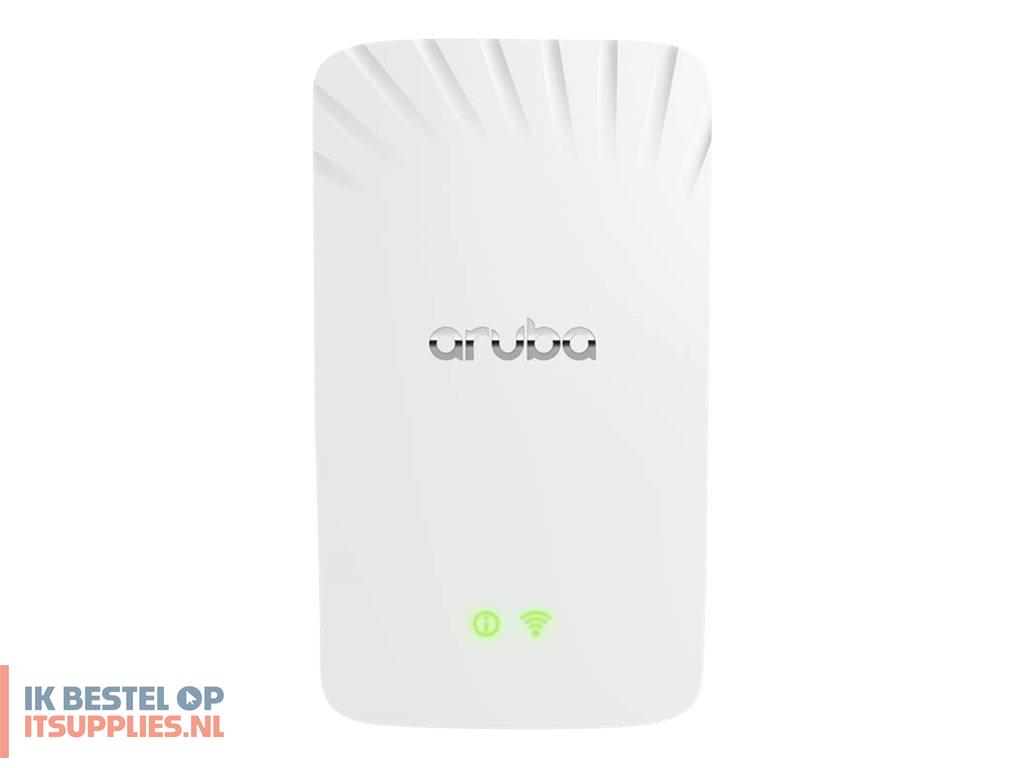

Radio access point
Networking
Connectivity Technology
Wireless
Data Transfer Rate
1.5 Gbps
Line Coding Format
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
Spread Spectrum Method
OFDM, DSSS, OFDMA
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (5 GHz): 1.2 Gbps
Maximum data rate (2.4 GHz): 287 Mbps
Capacity
Wireless clients per Wi-Fi radio: 256
BSSIDs per radio: 16
Status Indicators
Port status, power, system, status, PoE
Features
Auto-uplink (auto MDI/MDI-X), DFS support, Wi-Fi Multimedia (WMM) support, 2T2R MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, HPE SmartRate
Encryption Algorithm
WPA, WPA2, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.11ax
Aerial
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE), Zigbee
Expansion / Connectivity
Interfaces
1 x 2500Base-T - RJ-45
1 x 1000Base-T - RJ-45
2 x 1000Base-T (PoE+) - RJ-45
1 x USB 2.0 - Type A
1 x console - micro-USB
Miscellaneous
Compliant Standards
EN 60950, IEC 60950, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, R&TTE Directive 1995/5/EC, ISED, RED 2014/53/EU
Power
Power Over Ethernet (PoE) Supported
PoE+
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 93% (non-condensing)
