HPE StoreFabric SN2410bM 10GbE 24SFP+ 4QSFP28

Productcode: Q6M29A | EAN/UPC: 0190017199993

€ 19.791,79 excl.btw

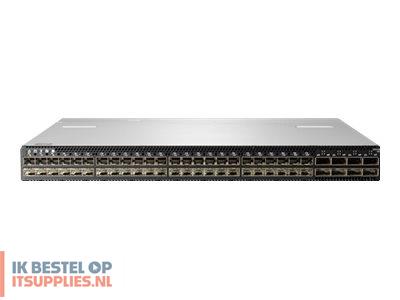

HPE StoreFabric SN2410bM 10GbE 24SFP+ 4QSFP28 - Switch - L3 - Managed - 24 x 10 Gigabit SFP+ + 4 x 100 Gigabit QSFP28 - rack-mountable - for Apollo 4200, 4200 Gen10

High density data center switching
Superior performance with future proof growth
Optimized for demanding enterprise data centers and storage environments
Unleash storage performance and improve flash ROI

Op voorraad: 0 stuk(s)

Levertijd:

Product:
HPE StoreFabric SN2410bM 10GbE 24SFP+ 4QSFP28

€ 23948,07 incl. 21% btw € 19791,79excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

HPE StoreFabric SN2410bM 10GbE 24SFP+ 4QSFP28 - Switch - L3 - Managed - 24 x 10 Gigabit SFP+ + 4 x 100 Gigabit QSFP28 - rack-mountable - for Apollo 4200, 4200 Gen10

Product features

High density data center switching
The HPE StoreFabric SN2410M Ethernet switch is a top-of-rack data center switch offering two form factor configurations: a 1U 48-port 25GbE SFP28 with 8-port 100GbE QSFP28, or a 1U 48-port 10GbE SFP+ with 8-port 100GbE QSFP28. Each switch offers cost-effective options with entry at 24-ports and a pay as you grow with a software license. Offering more flexibility to customers to add capacity when needed. Each switch delivers 100GbE ports which may be further split into four 25GbE ports or support for 40GbE which can be further split into four 10GbE.
Superior performance with future proof growth
The HPE StoreFabric SN2410M Ethernet switches deliver predictable and consistent throughput regardless of the packet size being transferred, the mixture of ports which are sending data and even within mixed speed environments. Provide wire-rate performance with zero packet loss across all frame sizes, avoiding any negative impact on applications that could occur with frame loss as unexpected packet loss is unacceptable in modern data centers, especially within a storage network.
Optimized for demanding enterprise data centers and storage environments
The HPE StoreFabric SN2410M switch provides a flexible combination of ports, allowing for great flexibility, efficiency, simplifying scale-out environments and saving on total cost of ownership. Optimized port configuration enables high-speed rack connectivity to the server at 10GbE or 25GbE speeds with 100GbE uplink ports that allow for a variety of blocking ratios that suit specific application requirements.
Unleash storage performance and improve flash ROI
The HPE StoreFabric SN2410M switch provides ultra-low latency of under 300ns port-to-port. This is advantageous for flash storage which has moved latency bottlenecks form storage access to the network, as well as for the burst nature of today's software defined and cloud data centers traffic. The buffering architecture of the HPE SN2410M switches provides superior micro burst absorption for applications that burst data at random intervals.

Specificaties

General

Device Type

Switch - 24 ports - L3 - Managed

Enclosure Type

Rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

24 x 10 Gigabit SFP+ + 4 x 100 Gigabit QSFP28

Performance

Switching capacity: 4 Tbps
Processing rate: 5.95 Bpps
Cut-through latency: 300 ns

Remote Management Protocol

SNMP, Telnet, SSH, CLI

Authentication Method

RADIUS, TACACS+, LDAP

Features

IGMP snooping, port mirroring, store and forward, IPv6 support, RSTP support, VRRP support, MSTP support, DCBX support, ACL support, QoS, BFD, IPv4 support, LLDP support, DHCP relay, sFlow v5, 802.1x authentication, 16MB packet buffer, OpenFlow support, Protocol-based VLANs support, Storm Control, RoCE, RED, ECN, PFC, VXLAN, MLAG, OSPF, Root Guard, Loop Guard, Voice VLAN, ToR, STP BPDU Guard, BPDU Filter, PIM, hot swap fan tray

Compliant Standards

X.509

RAM

8 GB

Flash Memory

32 MB

Status Indicators

System, status, fan

Expansion / Connectivity

Interfaces

24 x 10Gbit LAN SFP+
4 x 100Gbit LAN QSFP28
24 x 10Gbit LAN SFP+ additional port option
4 x 100Gbit LAN QSFP28 additional port option
1 x USB Type A
2 x management RJ-45
1 x console RJ-45

Power

Power Device

Internal power supply - hot-plug

Installed Qty

Max Supported Qty

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Power Provided

460 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

165 Watt

Features

Power-to-port airflow

Miscellaneous

Included Accessories

2 power cords (C13 to C14), 4 intake fan trays, fixed rack mount kit, 2 x PSU cable retainer kit

Cables Included

1 x serial cable

Rack Mounting Kit

Included

Compliant Standards

EMC, FIPS 140-2, X.509, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-3-2:2014, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, VCCI V-3/2015.04 Class A, EN 55032:2012 Class A, ICES-003:2016 issue 6 Class A, LV, TR CU 020/2011, TR CU 004/2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, AS/NZS CISPR32:2015 Class A, KN22:2009 Class A, KN24:2009

Dimensions & Weight

Width

43.6 cm

Depth

43.8 cm

Height

4.39 cm

Weight

8.52 kg

Manufacturer Warranty

Service & Support

Limited warranty - parts and labour - 3 years - on-site

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 85% (non-condensing)

Compatibility Information

Designed For

HPE Apollo 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Qumulo Archive Node, 4200 Qumulo Hybrid Node, 4200 Qumulo Node

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
