General
Device Type

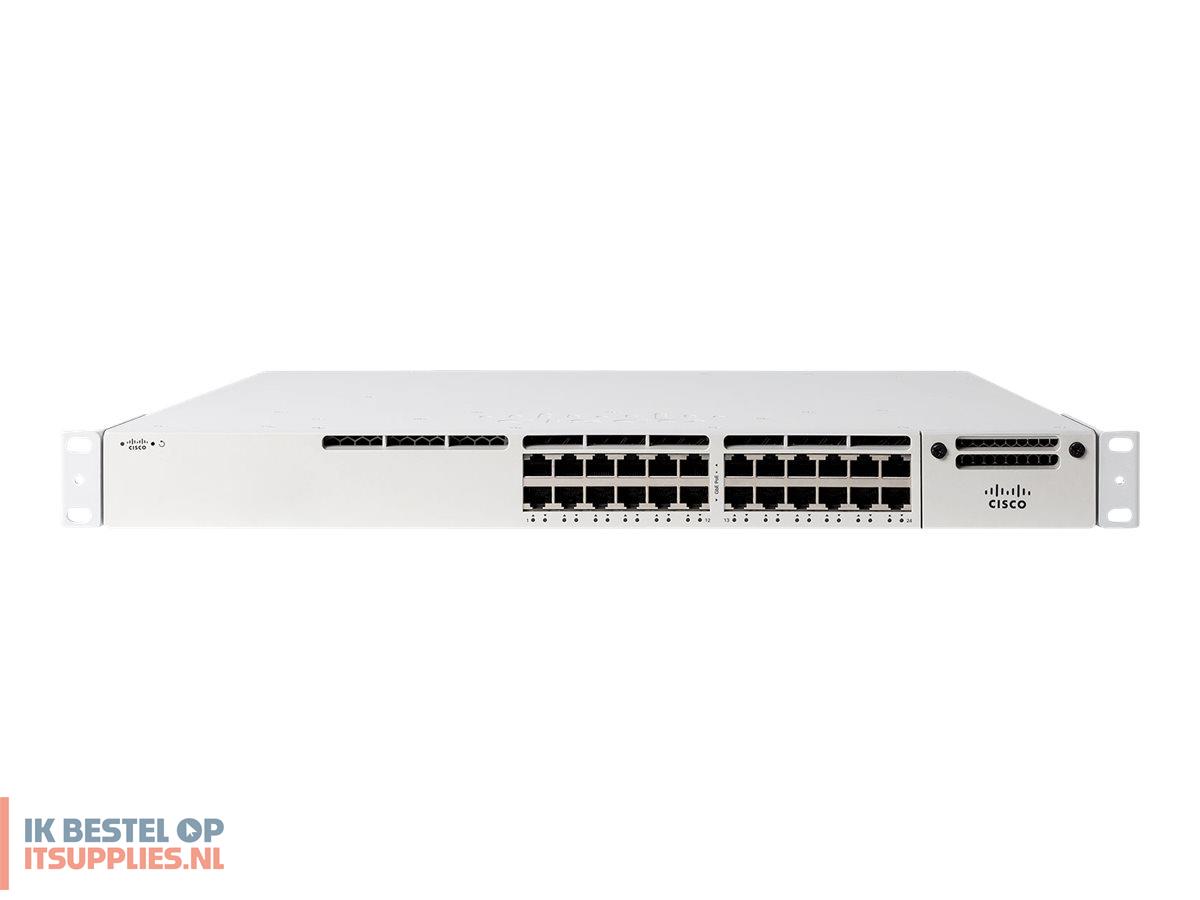

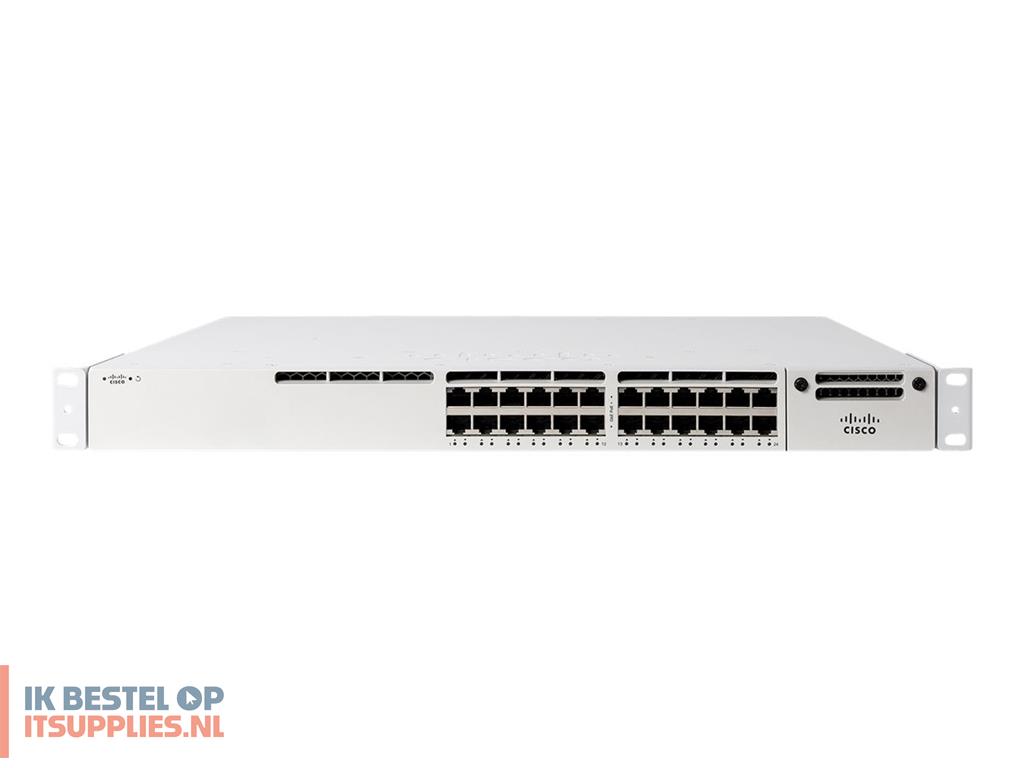

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Ports
24 x 10/100/1000 (PoE)
Power Over Ethernet (PoE)
PoE
Performance
Switching capacity: 208 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
MAC Address Table Size
32K entries
Routing Protocol
OSPF, VRRP, OSPFv2, static IP routing, RSTP, STP
Remote Management Protocol
DHCP, IPv4, IPv6, RSTP, RADIUS
Authentication Method
RADIUS
Features
Auto-negotiation, IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, Per-VLAN Spanning Tree (PVST), DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Uni-Directional Link Detection (UDLD), DHCP relay, Port Security, hot swappable fan, Cisco StackPower technology, crossover detection, cloud managed, Role-Based Access Control (RBAC), Root Guard, Loop Guard, MAC Access Bypass (MAB), BPDU Guard, Cisco Discovery Protocol (CDP)
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Interfaces
24 x 1000Base-T RJ-45 PoE ¦ 2 x network stack device ¦ 1 x management
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Power
Power Device
Internal power supply - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Consumption Operational
554.4 Watt
Power Consumption Stand by
84.1 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, FCC CFR47 Part 15 A, KN32, KN35, EN 55032, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, TCVN 7317
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next day
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
