General
Device Type

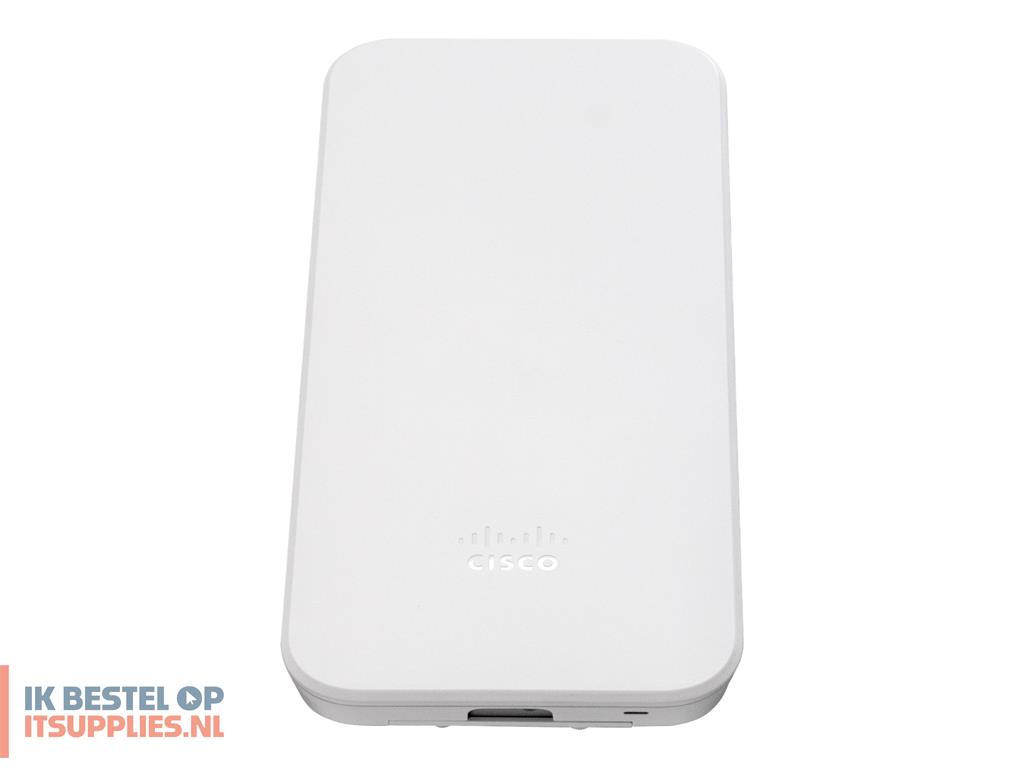

Radio access point
Networking
Form Factor
Desktop / wall / ceiling mountable
Connectivity Technology
Wireless
Data Transfer Rate
1.5 Gbps
Line Coding Format
1024 QAM
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0 LE, IEEE 802.11ax (Wi-Fi 6)
Network / Transport Protocol
IPSec
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (5 GHz): 1201 Mbps
Maximum data rate (2.4 GHz): 286 Mbps
Status Indicators
Power, Boot State, firmware
Features
Firewall protection, VPN support, firmware upgradable, tunnelling, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), DiffServ Code Point (DSCP) support, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), beamforming technology, SU-MIMO technology, PMK Caching, guest access, layer 3 roaming, opportunistic key caching (OKC), VLAN Tagging, 2x2:2 MU-MIMO technology, packet aggregation, layer 2 roaming, Orthogonal Frequency Division Multiple Access (OFDMA), BSS Coloring, Target Wake Time (TWT), Enterprise Mobility Management (EMM), Mobile Device Management (MDM), Cisco ISE integration, layer 7 application traffic identification and shaping, global L7 traffic analytics, embedded location analytics reporting and device tracking
Encryption Algorithm
AES, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open
Authentication Method
MS-CHAP v.2, EAP-SIM, EAP-TLS, EAP-TTLS
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ax
Aerial
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE)
Expansion / Connectivity
Interfaces
1 x 1000Base-T (PoE) - RJ-45
Miscellaneous
Included Accessories
Mounting kit
Compliant Standards
CSA, VCCI, ICES-003, EN55024, CISPR 22, FCC Part 15 B, RSS-102, FCC Part 15 C, UL 2043, RoHS, FCC Part 2, AS/NZS 4268, FCC Part 15 E, EN 62311, EN 300 328, EN 50385, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, EN 55032, AS/NZS 2772, CB 60950, CB 62368, IFT, NOM-208, NCC LP0002
Power
Power Over Ethernet (PoE) Supported
PoE
Manufacturer Warranty
Service & Support
Limited warranty - advanced replacement - 1 year
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
55 °C
Humidity Range Operating
5 - 95% (non-condensing)
