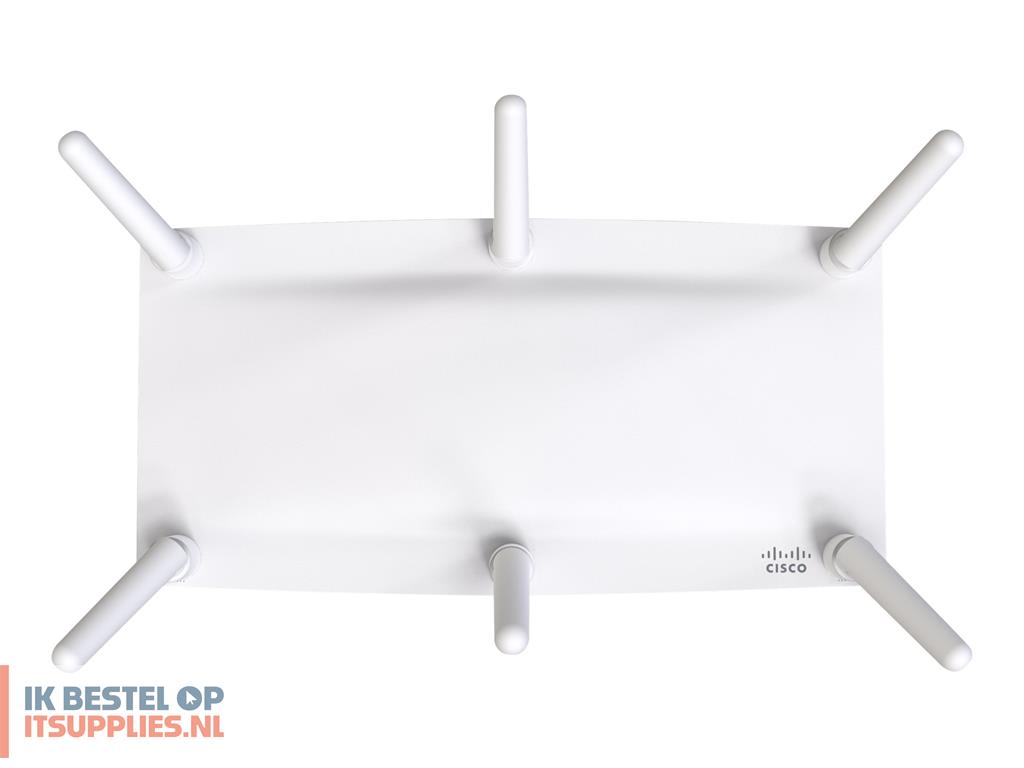

Cisco Meraki MR46E - Radio access point

Radio access point

30.72 cm

15.62 cm

3.49 cm

850 g

External

Wireless

1024 QAM, OFDMA

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax

OFDMA

IPSec

Yes

2.4 GHz, 5 GHz

Power, Boot State, status

Firewall protection, VPN support, firmware upgradable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), DiffServ Code Point (DSCP) support, MU-MIMO technology, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO technology, opportunistic key caching (OKC), 4x4:4 MU-MIMO technology, packet aggregation, security slot (Kensington security lock compatible), Target Wait Time (TWT)

AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open

MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-SIM

IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ax

External

1 x 1/2.5GBase-T (PoE+) - RJ-45

Mounting kit

CSA, VCCI, ICES-003, EN55024, CISPR 22, RSS-102, FCC Part 15 C, UL 2043, RoHS, FCC Part 2, AS/NZS 4268, FCC Part 15 E, EN 62311, NCC, EN 300 328, EN 50385, LP0002, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, EN 55032, AS/NZS 2772, CB 60950, CB 62368, IFT, NOM-208

PoE+

18 Watt

Limited warranty - advance hardware replacement - lifetime

0 °C

40 °C

5 - 95% (non-condensing)
