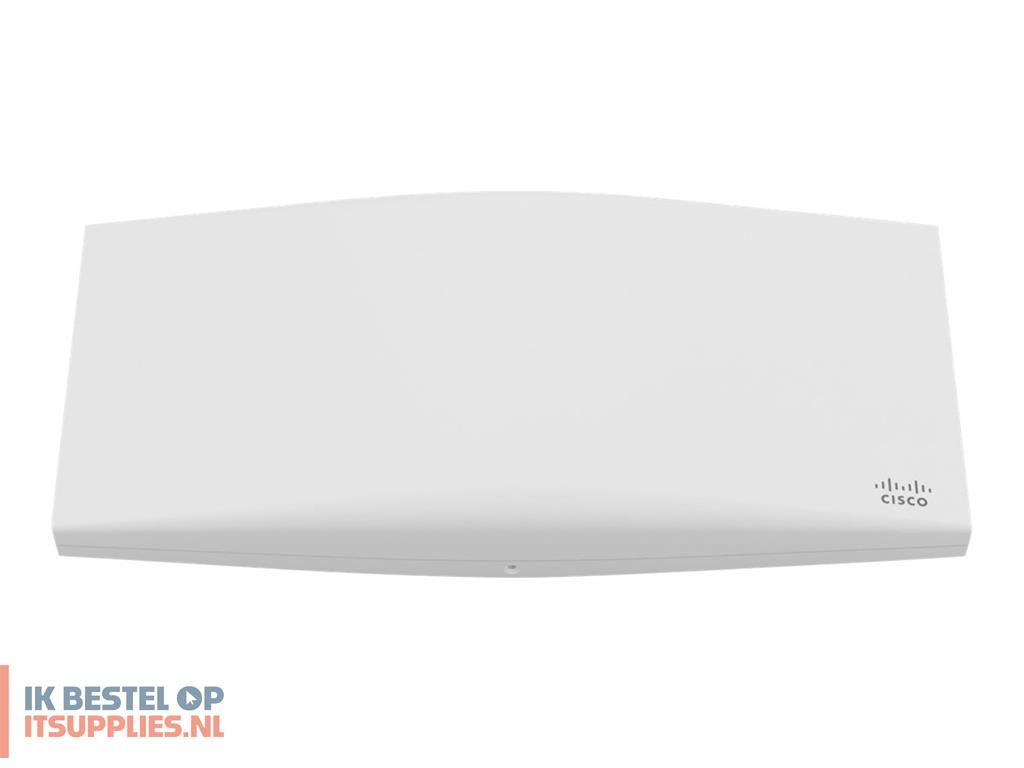

Cisco Meraki MR36 - Radio access point

Radio access point

25 cm

12 cm

3.6 cm

492 g

External

Wireless

1.7 Gbps

1024 QAM, OFDMA

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax

Yes

2.4 GHz, 5 GHz

Power, Boot State, status

Firmware upgradable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), DiffServ Code Point (DSCP) support, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO technology, AES encryption, guest access, opportunistic key caching (OKC), 2x2:2 MU-MIMO technology, packet aggregation, Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT)

AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open

MS-CHAP v.2, Extensible Authentication Protocol (EAP)

IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ax

Internal

1 x 1000Base-T (PoE+) - RJ-45

Mounting kit

CSA, VCCI, ICES-003, EN55024, CISPR 22, FCC Part 15 B, RSS-102, UL 2043, RoHS, FCC Part 2, AS/NZS 4268, FCC Part 15 E, FCC CFR47 Part 15 C, EN 62311, EN 300 328, EN 50385, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, EN 55032, AS/NZS 2772, CB 60950, CB 62368, IFT, NOM-208, NCC LP0002

PoE+

External power adapter

DC 12 V (non-PoE) / 37 - 57 V (PoE+)

15 Watt

Limited warranty - replacement - lifetime

0 °C

40 °C

5 - 95% (non-condensing)
