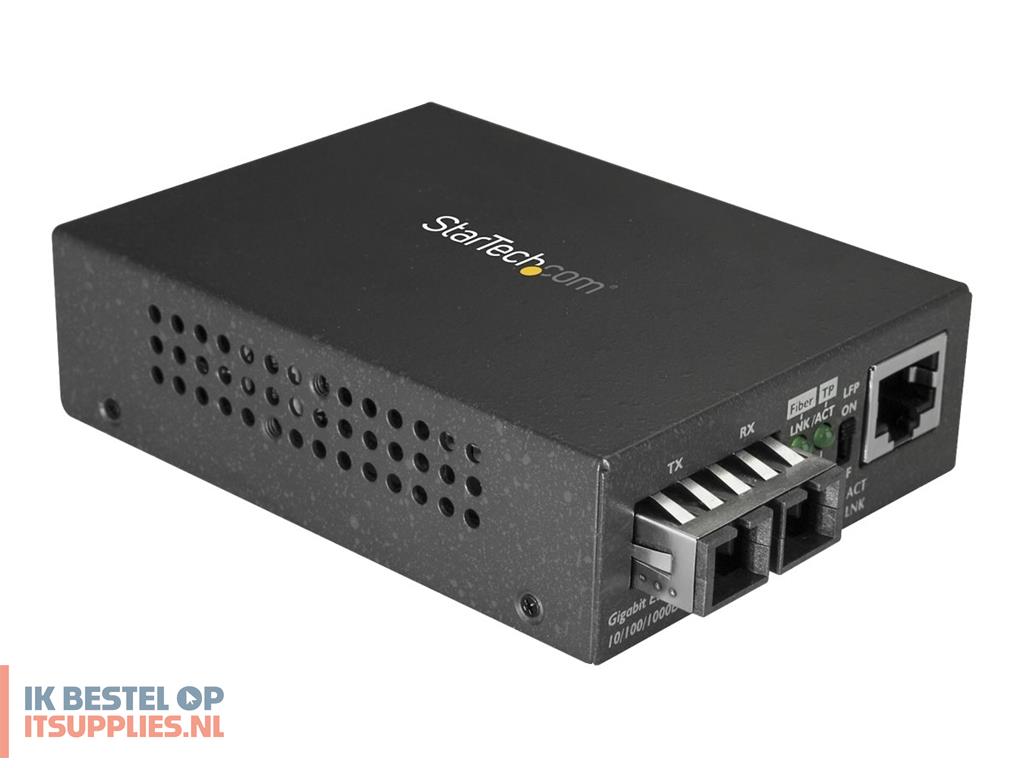

StarTech.com Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network, 10km, Gigabit Ethernet, 1310nm, w/ Auto Negotiation, Gigabit Ethernet t

Productcode: MCMGBSCSM10 | EAN/UPC: 0065030878241

€ 96,91 excl.btw

Ethernet Over Fiber (MCMGBSCSM10) - Fibre media converter - 100Mb LAN - 1000Base-LX - 100Base-TX - 1000Base-T - RJ-45 / SC single-mode - up to 10 km - 1310 nm

Op voorraad: 8 stuk(s)

Levertijd:

Product:
StarTech.com Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network, 10km, Gigabit Ethernet, 1310nm, w/ Auto Negotiation, Gigabit Ethernet t

€ 117,26 incl. 21% btw € 96,91excl. 21% btw

Winkelwagen

Omschrijving

StarTech.com Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network, 10km, Gigabit Ethernet, 1310nm, w/ Auto Negotiation, Gigabit Ethernet to Single Mode (SMF) SC Fiber Converter - Ethernet Over Fiber (MCMGBSCSM10) - Fibre media converter - 100Mb LAN - 1000Base-LX, 100Base-TX, 1000Base-T - RJ-45 / SC single-mode - up to 10 km - 1310 nm

Specificaties

General

Device Type

Fibre media converter

Form Factor

External

Networking

Connectivity Technology

Wired

Cabling Type

1000Base-LX, 100Base-TX, 1000Base-T

Data Link Protocol

10Mb LAN, 100Mb LAN

Data Transfer Rate

1 Gbps

Optical Wave Length

1310 nm

Max Transfer Distance

10 km

Status Indicators

Port duplex mode, power, link/activity

Features

Auto-uplink (auto MDI/MDI-X), full duplex mode, surge protection, 9 KB Jumbo Frame

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x

Expansion / Connectivity

Interfaces

1 x Ethernet 100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX - SC single-mode female x 2

Miscellaneous

MTBF

50,000 hours

Compliant Standards

cUL, FCC, RoHS, WEEE

Power

Power Device

External power adapter

Voltage Required

AC 100 - 240 V

Power Consumption Operational

5 Watt

Dimensions & Weight

Width

7 cm

Depth

9.7 cm

Height

2.6 cm

Weight

200 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

5 - 90%

This data is supplied by 1WorldSync and matched through an automatic process. Truedata is not responsible for errors in this data.
