General
Device Type

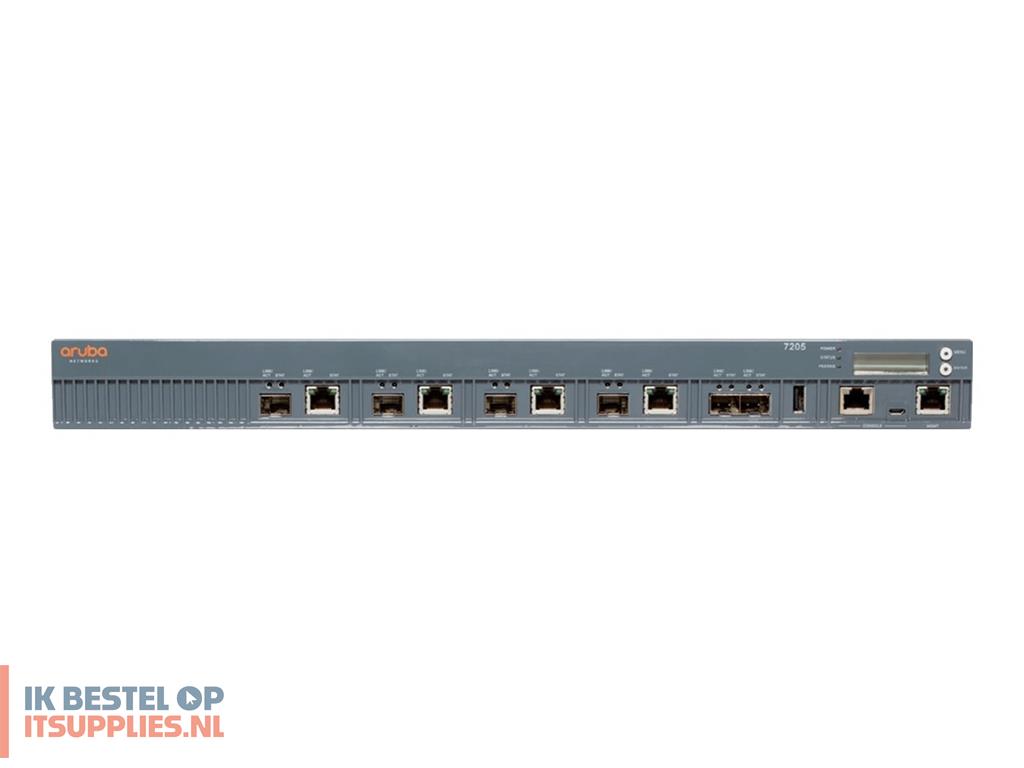

Network management device
Built-in Devices
Status LCD
Networking
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Performance
Throughput: 12 Gbps
Capacity
Maximum number of access points: 256 ¦ Concurrent devices: 8192 ¦ Virtual interfaces (VLANs): 2048 ¦ Concurrent GRE tunnels: 8192 ¦ Maximum number of access points (remote): 256 ¦ Concurrent tunneled ports: 4096 ¦ Concurrent IPSec sessions: 4096 ¦ Concurrent SSL fallback sessions: 4096 ¦ Active firewall sessions: 1000000
Status Indicators
Status, link/activity
Features
VPN support, VLAN support, IPv6 support, IPv4 support, GRE tunneling
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x expansion slot
Interfaces
2 x 10GBase-X - SFP+ ¦ 4 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 ¦ 1 x console - RJ-45 ¦ 1 x mini-USB ¦ 4 x 1000Base-X - SFP (mini-GBIC)
Miscellaneous
Compliant Standards
ETSI, C-Tick, CISPR 22 Class A, EN 60950, NOM, VCCI Class A ITE, EN55024, EN55022 Class A, UL 60950, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, MIC, AS/NZS 3548, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, FCC Part 15 A, ANATEL, cTUVus, ISO 7779, CAN/CSA C22.2 No. 60950
Pricing Type
K-12 education
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
75.2 Watt
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
