General
Device Type

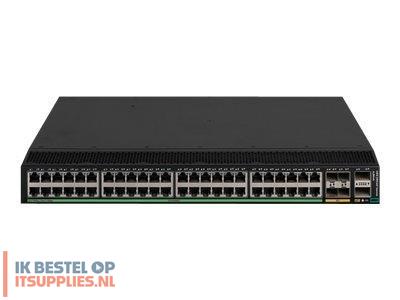

Switch - 48 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Ports
48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 40 Gigabit QSFP+
Performance
Latency (1 Gbps): 5 µs ¦ Latency (40 Gbps): 1.2 µs ¦ Throughput: 250 Mpps ¦ Routing/switching capacity: 336 Gbps
Capacity
IPv4 routing table entries: 16000 ¦ IPv6 routing table entries: 8000 ¦ MAC address entries: 110000
MAC Address Table Size
110K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, VRRP, OSPFv2, static IP routing, OSPFv3, RIPng
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, NTP, ICMP
Authentication Method
Secure Shell (SSH), TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, SNTP support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), 8MB packet buffer, cut-through, OpenFlow support, In-Service Software Upgrade (ISSU), Internet Control Message Protocol (ICMP), Software Defined Networking (SDN), 2 fan trays, VLAN Double Tagging (Q-in-Q), DNS client, Top-of-Rack (ToR), Ethernet OAM, STP loop guard, proxy ARP, Zero-touch provisioning (ZTP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, Intelligent Resilient Fabric Technology (IRF)
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3ag
Expansion / Connectivity
Interfaces
48 x Gigabit LAN ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 2 x 40Gbit LAN QSFP+ ¦ 1 x console RJ-45 management ¦ 1 x mini-USB ¦ 1 x USB Type A
Power
Power Device
Internal power supply (not installed) - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
Features
Front-to-rear airflow
Miscellaneous
Compliant Standards
GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, ANATEL, UL-AR, EN 60825-2, VCCI Class A, EN 61000-3-3:2013, EN 55024:2010, ETSI EN 300 386 V1.6.1:2012, EN 61000-3-2:2014, FCC CFR47 Part 15 B Class A, EN 55024:2010+A1:2015, EN 60950-1/A11, FDA 21 CFR, AS/NZS CISPR 32 Class A, EN 55032 Class A, CISPR 32:2015 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 60950-1, EN 55035:2017, ETSI EN 300 386 V2.1.1, CISPR 35: 2016
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
