General
Device Type

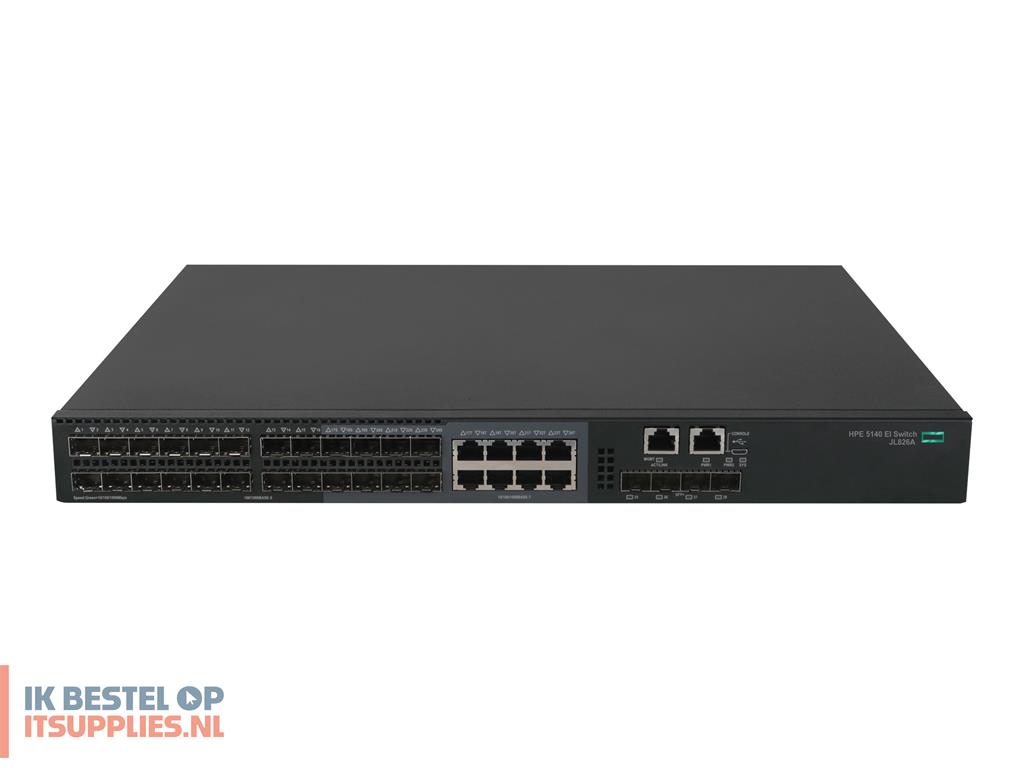

Switch - 28 ports - L3 - smart
Enclosure Type
Rack-mountable 1U
Ports
24 x Gigabit SFP + 8 x combo Gigabit Ethernet/Gigabit SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Performance
Latency (1000 Mbps): 5 µs
Latency (10 Gbps): 3 µs
Throughput: 96 Mpps
Routing/switching capacity: 128 Gbps
Capacity
IPv4 routing table entries: 512
IPv6 routing table entries: 256
VLAN IDs: 4094
MAC Address Table Size
16384 entries
Jumbo Frame Support
9216 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI, NTP, ICMP, RADIUS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
Features
Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, High Availability, half duplex mode, full duplex mode, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, DHCP server, MLD snooping, DLDP support, STP Root Guard, DHCP relay, LACP, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, SPQ, port isolation, GARP, OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU protection, UDP support, MRP
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
Status Indicators
Port status, system, link/activity, power 1, power 2
Expansion / Connectivity
Interfaces
24 x 1000Base-X SFP
8 x 1000Base-T RJ-45
4 x 1000Base-X/10GBase-X SFP+
1 x console RJ-45 management
1 x micro-USB 5 pin USB header management
1 x management RJ-45
Power
Power Device
Internal power supply (not installed)
Voltage Required
AC 100-240 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
Plug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN 55032, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, ETSI EN 300 386, EN 62368-1:2014/A11:2017, GB/T9254
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
