General
Device Type

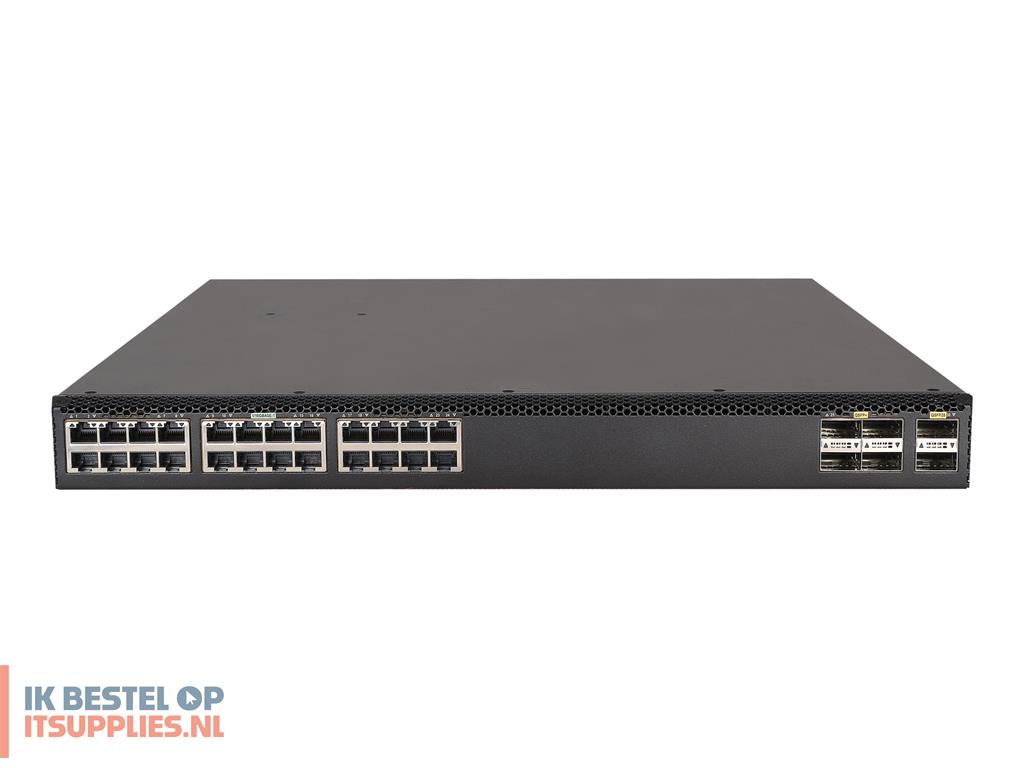

Switch - 24 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
24 x 1 Gigabit / 10 Gigabit Ethernet + 6 x 40 Gigabit QSFP+
Performance
Throughput: 714 Mpps
Routing/switching capacity: 960 Gbps
Latency (10 Gbps): 2.5 µs
Capacity
IPv4 routing table entries: 16000
IPv6 routing table entries: 8000
Virtual interfaces (VLANs): 4094
ARP entries: 68000
Static ARP entries: 1000
MAC Address Table Size
208000 entries
Routing Protocol
OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, TACACS+
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, IPv6 support, SNTP support, WFQ, WRED, sFlow, PIM snooping, STP support, RSTP support, MSTP support, tunnelling, DCBX support, priority-based flow control, DHCP snooping, ACL support, QoS, Jumbo Frames support, MLD snooping, DLDP support, ECMP, IPv4 support, LLDP support, DHCP relay, Port Security, DCB, role based access control, MIB, NTP time synchronisation, 12MB packet buffer, FCoE forwarding, CoS, SP, IRF technology, DSCP support, FCoE support, ToR, 5 fan tray slots
Compliant Standards
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.3ag
Expansion / Connectivity
Interfaces
24 x Gigabit / 10Gbit LAN RJ-45
1 x 10/100/1000 Base-T management
1 x management SFP
1 x console (mini-USB)
1 x serial (console)
Power
Power Device
Internal power supply (not installed) - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
Miscellaneous
Compliant Standards
FCC Class A certified, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, VCCI Class A, CNS 13438, KN32, KN35, AS/NZS CISPR 32 Class A, CNS 14336-1, TCVN 7189, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, ETSI EN 300 386
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
