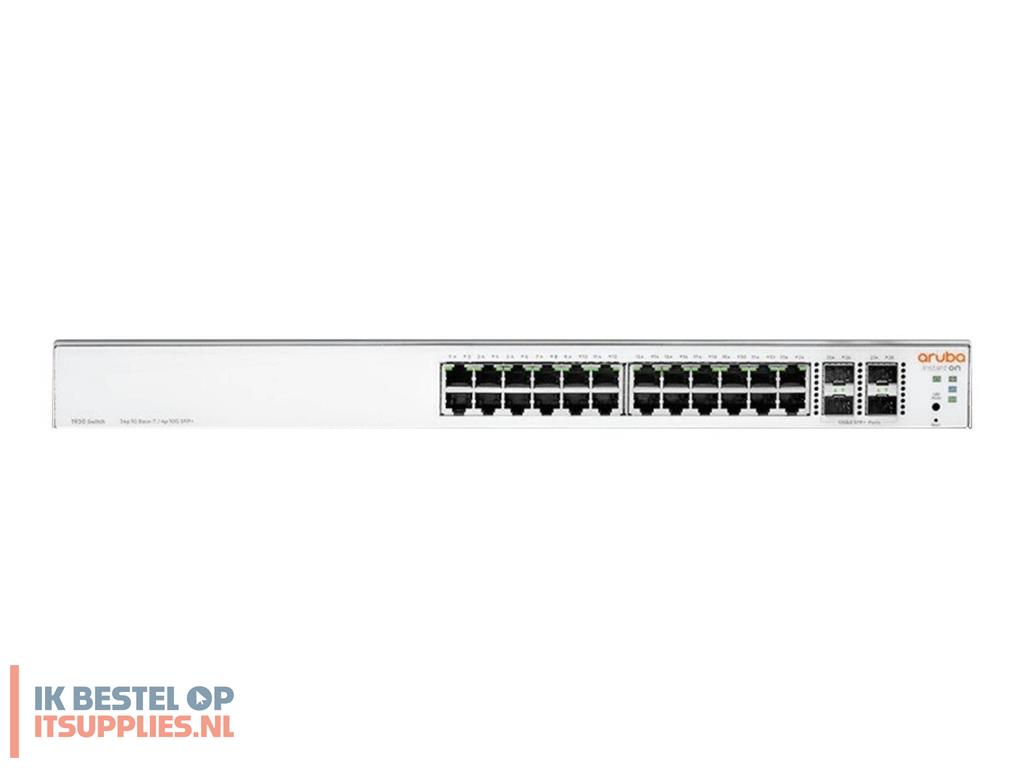

HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch

Productcode: JL682A#ABB | EAN/UPC: 0190017355450
217,80 excl.btw
HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch - Switch - L3 - Managed - 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable
  • Smart-managed layer 2+ Ethernet switch series ready to deploy
  • Security controls let you define access in each area of your network, keeping your business data safe
  • Convenient mobile app and web-based GUI for set up, management and troubleshooting
  • Plug-and-Play switches that work together with Instant On APs right out of the box
  • Mobile app to easily setup, monitor and manage your network
  • Protect your network from unauthorized access with IEEE 802.1X and VLANs
  • Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks
Op voorraad: 1 stuk(s)
Levertijd:
Product:
HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch
263,54 incl. 21% btw 217,80excl. 21% btw
Voorraad: 1

Omschrijving

HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch - Switch - L3 - Managed - 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable
Product features
  • TPM-based security
    Includes a Trusted Platform Module (TPM) for secure hardwarebased generation and storage of cryptographic keys used for secure connection to the Instant On cloud portal.
  • IEEE 802.1Q VLAN support
    Support for up to 256 VLANs with a VLAN ID range of 2-4093 IEEE 802.1X access control Authentication of network users on a per port basis prior to permitting network access. Port authentication includes RADIUS assigned VLAN, dynamic VLAN creation, guest VLAN or into an unauthenticated VLAN. Automatic denial-of-service protection Monitors for malicious attacks and protects the network by blocking the attacks.
  • Packet storm protection
    Protects against unknown unicast, broadcast and multicast storms with user-defined thresholds.
  • RADIUS
    The switch supports RADIUS authentication with primary and backup server configuration.
  • RADIUS accounting
    A robust set of attributes and statistics are available for collecting information from the switch.
  • Management VLAN ID
    Provides secure management access to administrators in the specified VLAN.
  • Link flap prevention
    Minimizes the network disruption by automatically detecting and disabling ports that experience link flap events.
  • Energy Efficient Ethernet (EEE)
    Compliant with IEEE 802.3az standard requirements to save energy during periods of low data activity.
  • Auto-port shut down
    The switch saves power by automatically shutting down power to inactive ports. Power is restored on a port upon link detection.
  • Energy savings status
    The switch provides an estimated cumulative energy savings due to green Ethernet features being enabled.
  • Energy-efficient cooling
    Includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.
  • IEEE 802.3x Flow control
    Provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
  • Spanning Tree Protocol (STP)
    Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP on local web).
  • Loop protection
    If the switch detects a loop, it disables the source port from forwarding data packets originating from the switch to avoid broadcast storms.
  • BPDU filtering
    Drops BPDU packets when STP is enabled globally but disabled on a specific port.
  • Jumbo frame support
    Supports up to 9216 bytes frame size to improve the performance of large data transfers.
  • IGMP snooping v1/v2
    Improves network performance through multicast filtering, instead of flooding traffic on all ports.
  • Link aggregation
    Groups together multiple ports up to a maximum of eight (8) ports per trunk automatically using Link Aggregation Control Protocol (LACP), or manually, to form a high-bandwidth connection to the network backbone that helps prevent traffic bottlenecks. The 8-port models support 4 trunks, 24-port models support 8 trunks, and 48-port models support 16 trunks.
  • LLDP/LLDP-MED (Media Endpoint Discovery)
    Defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN for automatic configuration of network devices such as IP phones.
  • Address Resolution Protocol (ARP)
    The ARP table displays all of the IP addresses that have been resolved to MAC addresses, either dynamically or through static entry configuration.
  • Static IPv4 routing
    Supports manual routing configuration of up to 32 static routes.
  • Auto-voice VLAN
    Recognizes IP phones and automatically assigns voice traffic to dedicated VLAN for IP phones.
  • Access Control Lists (ACLs)
    Enables network traffic filtering by creating an ACL, adds rules and matches criteria to an ACL, and applies the ACL to permit or deny on one or more interfaces or a VLAN. Supports for 50 inbound IPv4 and MAC ACLs with up to 480 ACEs.
  • IPv6 host
    Enables switches to be managed and deployed at the IPv6 network's edge.
  • Rate limiting
    Sets and enforces per-port ingress traffic limits based on percentages or packets per second.
  • ARP Attack prevention
    Dynamic ARP protection blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data.
  • DHCP snooping
    Provides network security by filtering untrusted DHCP messages.
  • Port security
    Ports in a port isolation group are restricted from forwarding Layer 2 traffic between ports in that group, providing data privacy and security.
  • SCP and TFTP file transfer
    Provides different mechanisms for secure file transfer through SCP (Secure Copy Protocol) or TFTP.
  • Dual image support
    Provide independent primary and secondary software images for backup while upgrading.
  • User account management
    Password strength checking and aging feature provides enhanced security to user account administration to the local web management interface.
  • Secure Sockets Layer (SSL)
    Encrypts all HTTP traffic, secures access to the local browserbased management of the switch.
  • SNMPv1, v2c, and v3
    Facilitate management of the switch, as the device can be discovered and monitored from an SNMP management station.
  • Remote monitoring (RMON)
    Remote monitoring (RMON) provides advanced monitoring and reporting capabilities for statistics, history, alarms and events. RMON data is retrieved from the switch through a network management platform over SNMP.

Specificaties

General
Device Type
Switch - 28 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Performance
Switching capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 µs ¦ Latency (10 Gbps): 1.3 µs
Capacity
Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size
16000 entries
Jumbo Frame Support
9216 bytes
Routing Protocol
Static IP routing
Remote Management Protocol
SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Encryption Algorithm
SSL
Authentication Method
RADIUS
Features
Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor
1 x ARM Cortex-A9: 800 MHz
RAM
512 MB SDRAM
Flash Memory
256 MB
Status Indicators
Port status, power
Expansion / Connectivity
Interfaces
24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
22.6 Watt
Miscellaneous
MTBF
158 years
Compliant Standards
VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, EN 55032:2015+AC:2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035:2017
Localisation
English / Europe
Dimensions & Weight
Width
44.25 cm
Depth
22.15 cm
Height
4.39 cm
Weight
2.41 kg
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
15 - 95% (40 °C)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 95% (60 °C)

This data is supplied by 1WorldSync and matched through an automatic process. Truedata is not responsible for errors in this data.
