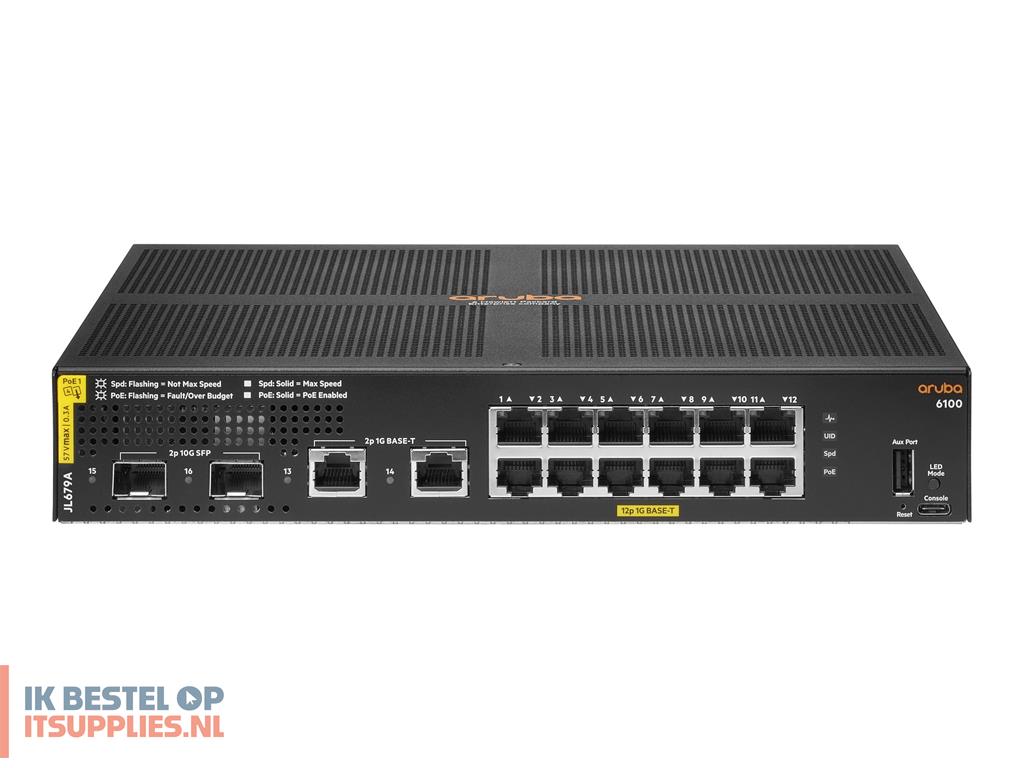

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch

Switch - 16 ports - Managed - stackable

Rack-mountable 1U

10 Gigabit Ethernet

12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T

PoE+

139 W

Switching capacity: 68 Gbps
Throughput: 45.1 Mpps
Latency (1 Gbps): 2.3 µs
Latency (10 Gbps): 2.6 µs

Switched virtual interfaces (SVIs): 16
ARP entries: 1024
IPv4 routes (Unicast): 512
IPv6 routes (Unicast): 512
IGMP groups: 512
MLD groups: 512
IPv4 ACL entries (ingress): 256
IPv6 ACL entries (ingress): 128
MAC ACL entries (ingress): 256

8192 entries

IGMPv2, IGMPv3

SSL

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, MSTP support, TFTP support, MLD snooping, fanless, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, MIB, NAC, NDP, SNMP support, ICMP, EntityMIB, DNS client, LLDP-MED, UDP, RSTP, IPv6 addressing

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az

1 x ARM A9: 1.016 GHz

4 GB DDR3 SDRAM

16 GB

12 x 10/100/1000 Base-T RJ-45
2 x 1/10Gbit LAN SFP+
1 x USB-C console
1 x USB Type A
2 x Gigabit LAN

Internal power supply

165 Watt 0.9 A

AC 230V (50/60 Hz)

16 Watt

FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792

English / Europe

25.4 cm

25.5 cm

4.39 cm

2.78 kg

Limited warranty - lifetime

0 °C

45 °C

15 - 95% (non-condensing)

15 - 90% (non-condensing)
