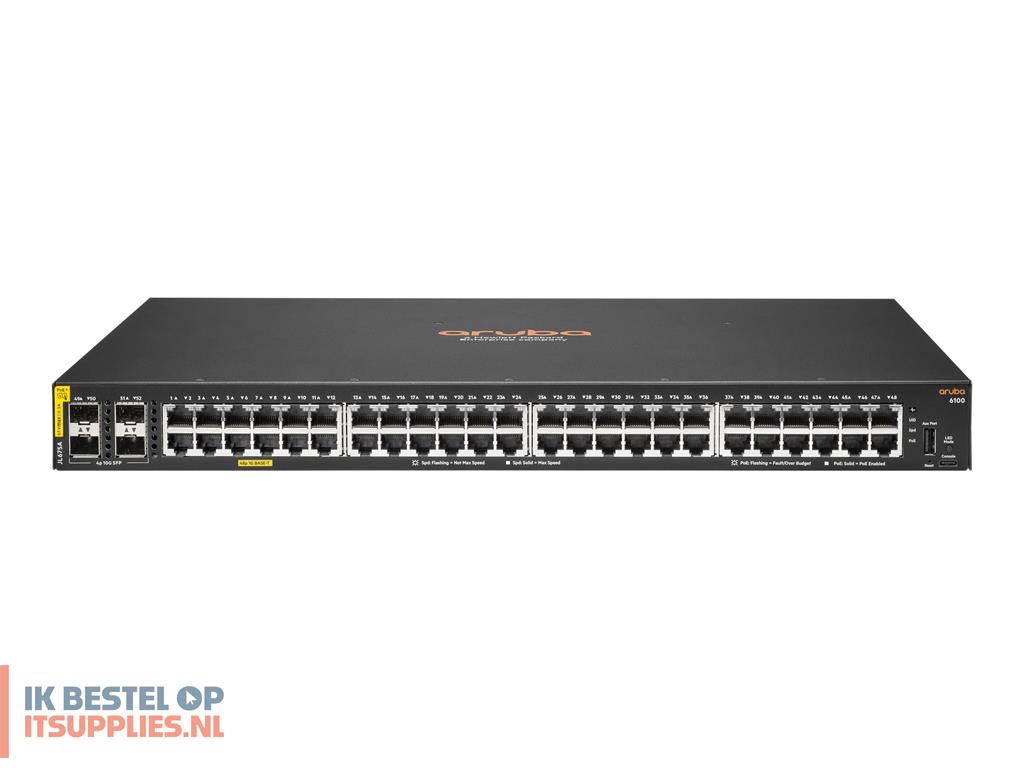

HPE Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch

Switch - 52 ports - Managed

Side to side airflow rack-mountable 1U

10 Gigabit Ethernet

48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+

PoE+

370 W

Switching capacity: 176 Gbps
Throughput: 98.6 µs
Latency (1 Gbps): 1.9 µs
Latency (10 Gbps): 1.8 µs

Switched virtual interfaces (SVIs): 16
ARP entries: 1024
IPv4 routes (Unicast): 512
IPv6 routes (Unicast): 512
IGMP groups: 512
MLD groups: 512
IPv4 ACL entries (ingress): 256
IPv6 ACL entries (ingress): 128
MAC ACL entries (ingress): 256

8192 entries

IGMPv2, IGMPv3

SSL

Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS

DNS client, VLAN support, MSTP support, RSTP, LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support

IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

1 x ARM A9: 1.016 GHz

4 GB DDR3 SDRAM

16 GB

48 x 10/100/1000 Base-T RJ-45 PoE+
4 x 1/10Gbit LAN SFP+
1 x USB-C console
1 x USB Type A

Internal power supply

500 Watt 2.4 A

AC 230V (50/60 Hz)

30.6 Watt

IEC/EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950 Second Edition, UL 60950-1 Second Edition, FCC Class A certified, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RFC768, RFC1591, RFC783, RFC792, RFC2460, RFC2925, RFC1213, RFC1493, RFC2674

English / Europe

44.2 cm

30.48 cm

4.39 cm

5.02 kg

Limited warranty - lifetime

0 °C

45 °C

15 - 95% (non-condensing)

15 - 90% (non-condensing)
