General
Device Type

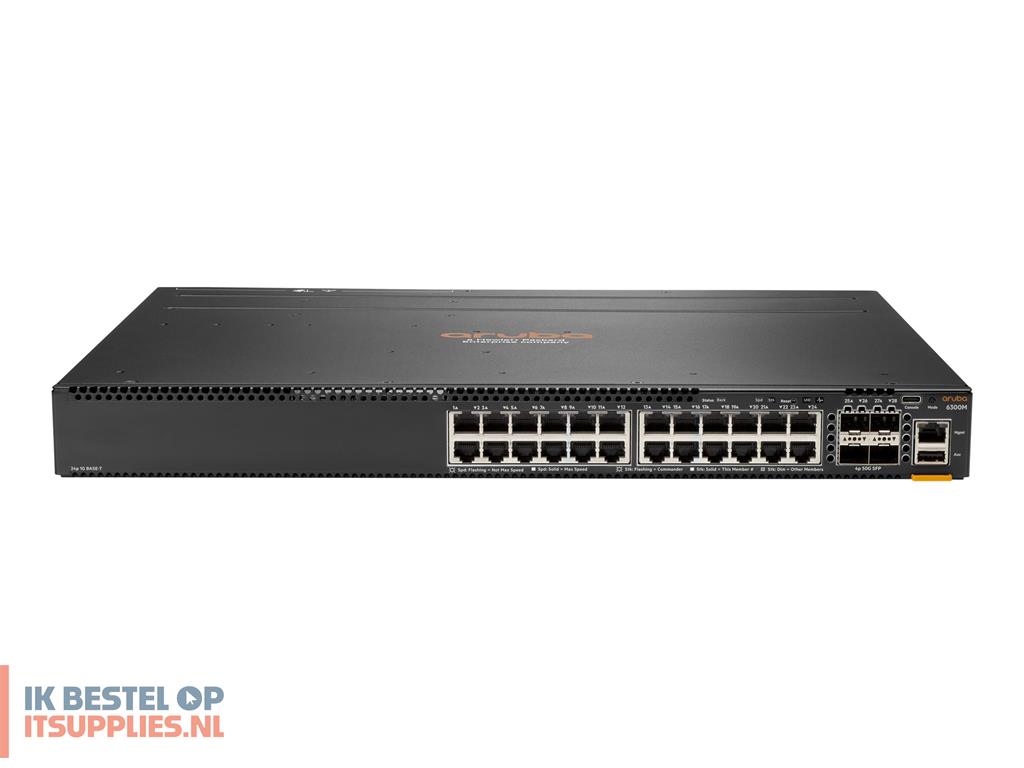

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Front and side to back rack-mountable 1U
Ports
24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Performance
Switching capacity: 448 Gbps ¦ Throughput: 334 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Latency (25 Gbps): 1.9 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
Capacity
Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), LLDP support, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), Strict Priority (SP), broadcast storm protection, Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB)
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
Processor
1 x ARM Cortex-A72: 1.78 GHz
Expansion / Connectivity
Interfaces
24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 ¦ 1 x USB-C console ¦ 1 x management ¦ 1 x USB Type A
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 95% (non-condensing)
