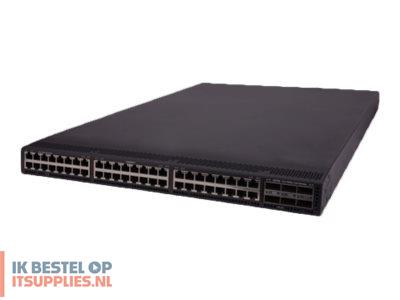

HPE FlexFabric 5940 48XGT 6QSFP28

Switch - 48 ports - L3 - Managed - stackable

Rack-mountable 1U

100 Gigabit Ethernet

48 x 10/100/1000/10000 + 6 x 100 Gigabit QSFP28

Routing/switching capacity: 2160 Gbps
Latency (10 Gbps): < 1 µs

IPv4 routing table entries: 120000
IPv6 routing table entries: 60000

288K entries

Yes

9

OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, OSPFv3, static IPv6 routing, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD)

SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, SSH-2, CLI

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Flow control, DHCP support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Equal-Cost Multipath (ECMP), LLDP support, DHCP protection, Registered State Change Notification (RSCN) support, Strict Priority (SP), Edge Virtual Bridging (EVB), Intelligent Resilient Framework Technology (IRF), reverse airflow support, SNMP support, cut-through, FCoE support, In-Service Software Upgrade (ISSU), IP source guard, VXLAN tunnel endpoints (VTEP) support

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1Qaz, IEEE 802.3ag

4 GB SDRAM

1 GB

48 x
6 x 100Gbit LAN QSFP28
1 x serial (console) RJ-45
1 x management (LAN) RJ-45
1 x USB 2.0

Internal power supply

CISPR 22 Class A, GOST, NOM, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, ANATEL, UL-AR, EN 60825-1, ANSI C63.4-2003, EN 60825-2, VCCI Class A, EN 61000-3-3:1995+A1:2001+A2:2005, EMC 2004/108/EC, EN 55022 Class A, FCC CFR47 Part 15 A, EN 60950-1/A11, FDA 21 CFR, EN 1000-3-2:2006, CAN/CSA-C22.2 No. 60950-1

44 cm

66 cm

4.36 cm

13 kg

Limited warranty - 1 year

0 °C

45 °C

10 - 90% (non-condensing)
