General
Enclosure Type
Rack-mountable - modular - 1U
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Aggregate throughput: 50 Mbps
Network / Transport Protocol
IPSec, PPPoE, DHCP, L2TPv3
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
Remote Management Protocol
SNMP, RMON
Features
Firewall protection, VPN support, MPLS support, VLAN support, Syslog support, IPv6 support, CBWFQ, WRED, wall mountable, IPSec VPN, ACL support, QoS, DMVPN, RADIUS support, BFD, NetFlow, IPFIX
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1
RAM
4 GB (installed) / 8 GB (max) - DDR3 SDRAM
Flash Memory
4 GB (installed) / 8 GB (max)
Expansion / Connectivity

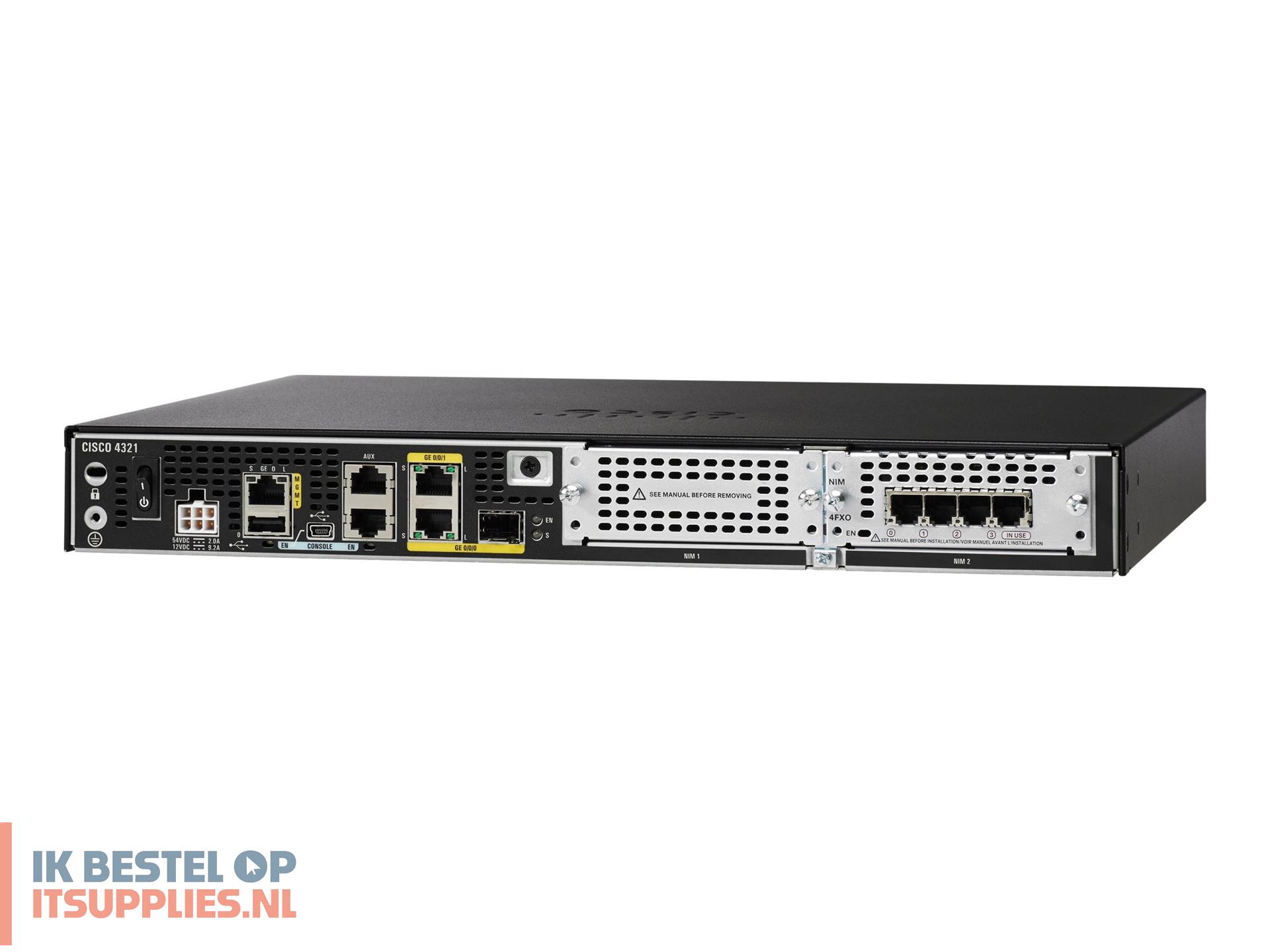

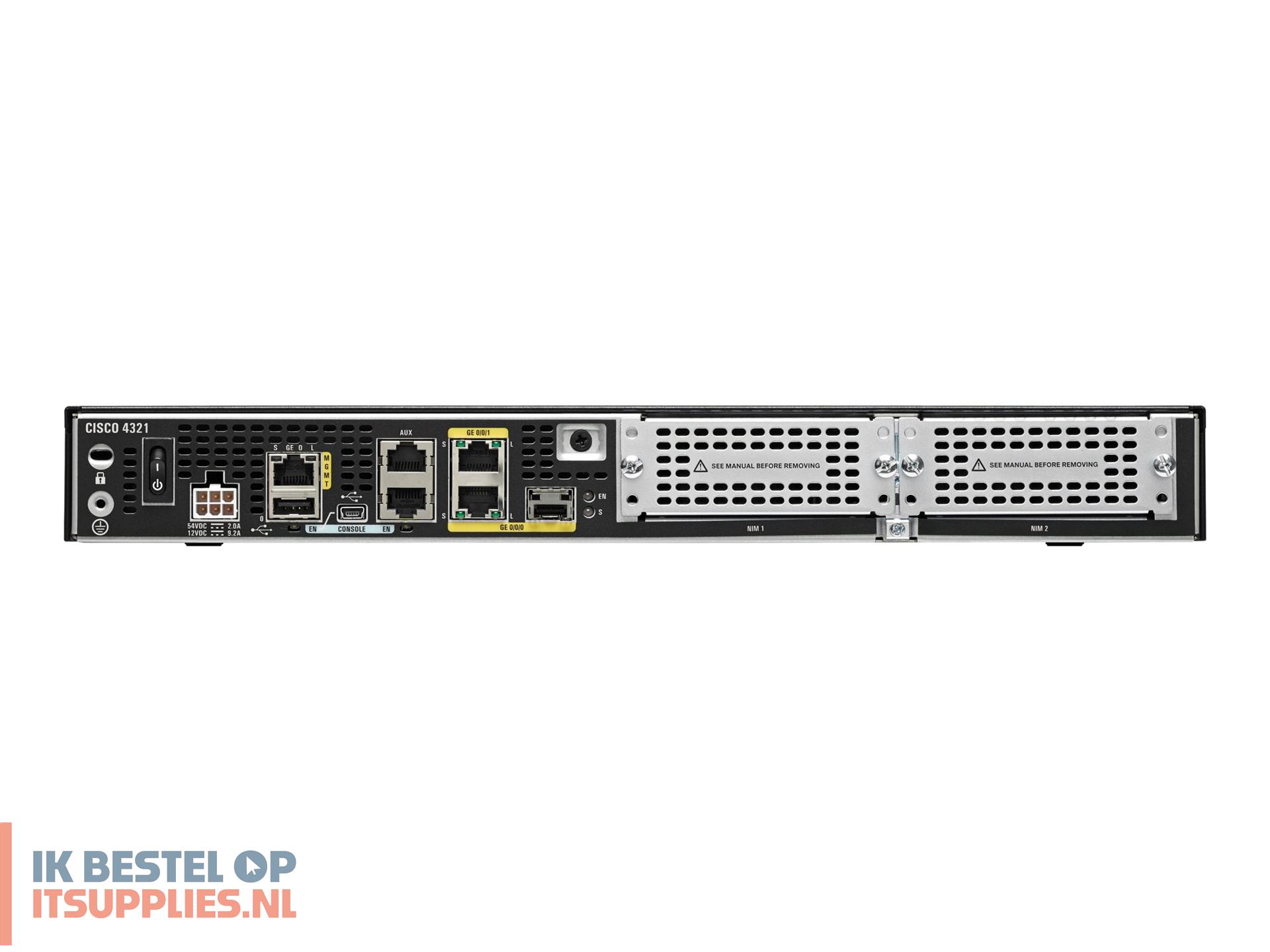

Interfaces
WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Serial: 1 x console - RJ-45
Management: 1 x console - mini-USB Type B
Serial: 1 x auxiliary - RJ-45
USB 2.0: 1 x 4 pin USB Type A
1 x SFP (mini-GBIC)
Management: 1 x RJ-45
Expansion Slots
2 (total) / 2 (free) x NIM
1 (total) / 1 (free) x ISC
1 (total) / 0 (free) x DIMM 240-pin
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit
Included
Software / System Requirements
OS Provided
Cisco IOS Application Experience License
Software Included
Cisco IOS IP Base, Cisco IOS Unified Communications, Cisco IOS Security, Cisco Unified Border Element Enterprise Edition (10 sessions)
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - 90 days - response time: 10 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 85%
