General
Device Type

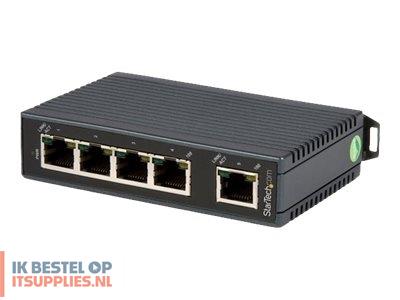

Switch - 5 ports - unmanaged
Enclosure Type
DIN rail mountable
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Quality of Service (QoS), Jumbo Frames support, plastic housing, Energy Efficient Ethernet, 56KB packet buffer
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Status Indicators
Power, active, link/activity
Expansion / Connectivity
Interfaces
4 x 100Base-TX RJ-45 ¦ 1 x 100Base-TX RJ-45 uplink
Power
Power Device
External power adapter
Power Consumption Operational
2.12 Watt
Miscellaneous
Included Accessories
3-pin power terminal block
Compliant Standards
EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-6-2, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, IP30
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
60 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
85 °C
Humidity Range Storage
10 - 90% (non-condensing)
Compatibility Information
Designed For
P/N: NETRS2322P
