General
Device Type
Expansion module
Form Factor
DIN rail mountable
Networking
Ports
Gigabit Ethernet x 8
Connectivity Technology
Wired
Cabling Type
Ethernet 1000Base-T
Data Link Protocol
Gigabit Ethernet
Capacity
IGMP groups: 1000 ¦ VLAN IDs: 256 ¦ Spanning Tree Protocol instances: 128 ¦ ACL: 1500
MAC Address Table Size
8000 entries
Network / Transport Protocol
TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP
Remote Management Protocol
SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NETCONF, RESTCONF, NTP, ICMP, DHCP, RSTP, YANG, TACACS+, RADIUS
Features
IGMP snooping, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, static routing, Flexible NetFlow (FNF), Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, IGMP querier, Voice VLAN, Guest VLAN, Switched Port Analyzer (SPAN), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, 802.1x filtering, VLAN Trunking Protocol (VTP) v.2, EtherChannel support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2
Processor / Memory
Supported Memory Cards
SD Memory Card
Expansion / Connectivity
Interfaces
8 x 1000Base-T - RJ-45
Miscellaneous
Compliant Standards
CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, EN 55032, EN 60068-2-52, EN 60068-2-60, CISPR 32 Class A, UL 62368-1, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 61000-4-17, CAN/CSA C22.2 No. 213, UL 121201, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15, CSA 62368-1, CB 62368-1
Power
Voltage Required
DC 9.6 - 60 V
Power Consumption Operational
12 Watt
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95% (non-condensing)
Compatibility Information
Designed For

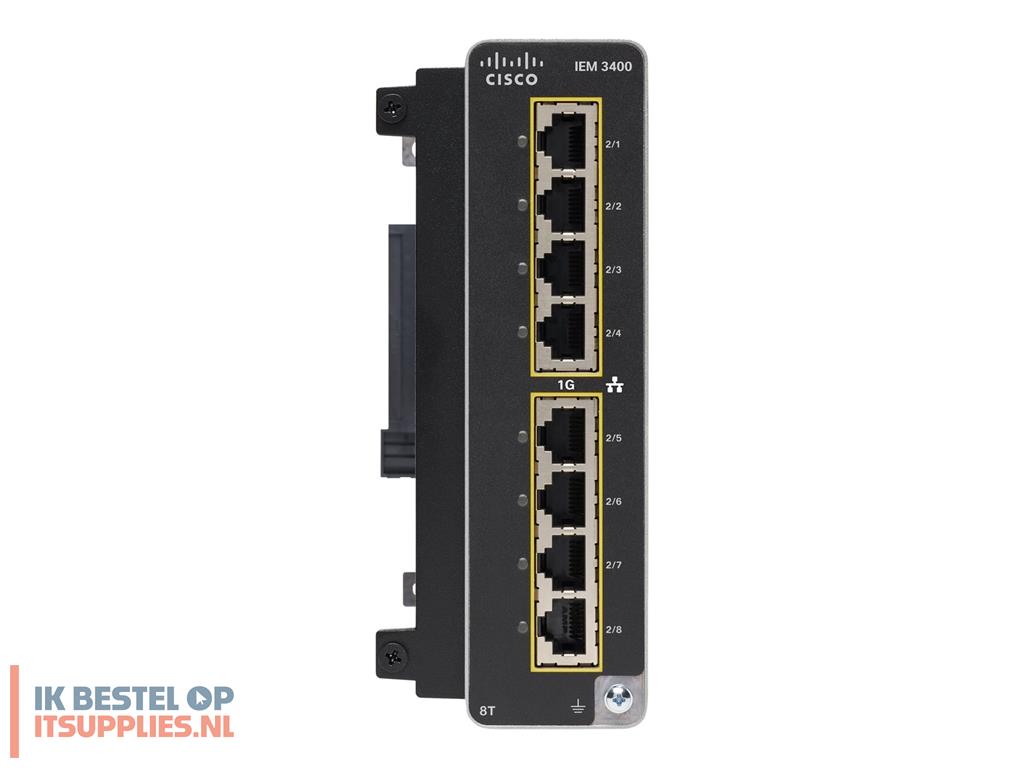

Cisco Catalyst IE3400 Rugged Series
