General
Device Type

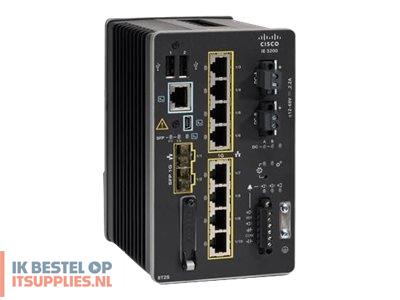

Switch - 8 ports - Managed
Enclosure Type
DIN rail mountable
Ports
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
Capacity
SPAN sessions: 256
IGMP groups: 1000
STP instances: 128
MAC Address Table Size
8K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, DAI, PVST+, UDLD, IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, MIB, 802.1x authentication, PTP, IGMP filtering, IP source guard, REP, SmartPort technology, ICMP, CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, UDP, VTP v.3, BPDU Guard, Dying Gasp, VTP v.2
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
Built-in Devices
SD card reader
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45 PoE+
2 x 1000Base-X SFP
1 x serial (RS-232) RJ-45
1 x mini-USB Type B
Expansion Slots
1 (total) / 1 (free) x SD Memory Card
Power
Power Device
Internal power supply
Voltage Required
DC 9.6 - 60 V
Electric Current Required
5.5 A
Power Consumption Operational
35 Watt
Miscellaneous
Compliant Standards
EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - advance parts replacement - 5 years - response time: 10 days
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Storage
5 - 95% (non-condensing)
