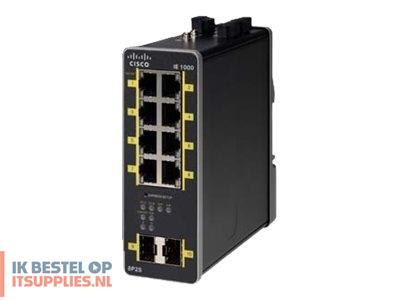

Cisco Industrial Ethernet 1000 Series

Switch - 10 ports - Managed

DIN rail mountable

Gigabit Ethernet

8 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)

PoE+

IGMPv2, IGMP

SNMP 2, SNMP, RMON, SNMP 3, HTTP, SSH

Secure Shell (SSH), RADIUS

DHCP support, BOOTP support, IGMP snooping, Syslog support, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, DHCP server, static IP mode, LLDP support, Port Security, Management Information Base (MIB), Class of Service (CoS), DiffServ Code Point (DSCP) support, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Management Information Base (MIB) II

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

128 MB

160 MB

8 x 1000Base-T RJ-45
2 x 1000Base-X SFP

DC 48 - 54 V

205.2 Watt

374,052 hours

CISPR 22 Class A, EN55022, NOM, CB, EMC, ICES-003 Class A, RoHS, IEC 60068-2-30, KCC, WEEE, IEC 60068-2-27, IEC 60068-2-6, ANATEL, EN 61131-2, EN 61326-1, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, CEM, EMI, IP30, IEC 60068-2-56, VCCI Class A, EN 50581, EAC, China RoHS, RCM, AS/NZS CISPR22:2004 Class A, NOM-001-SCFI-1993, CISPR 11 class A, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, IEC60950-1, IEC 60068-2-3, FCC CFR47 Part 15 A, UL/CSA60950-1, UL/CSA/IEC/EN 61010-2-201, EN 55016-1-1 Class A, EN 55016-1-4 Class A, EN 55016-2-3 Class A, AS/NZS CISPR 24, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29, IEC 60068-2-47, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4

13.4 cm

4.57 cm

12.7 cm

840 g

-40 °C

70 °C

5 - 95% (non-condensing)

-40 °C

85 °C

5 - 95% (non-condensing)
