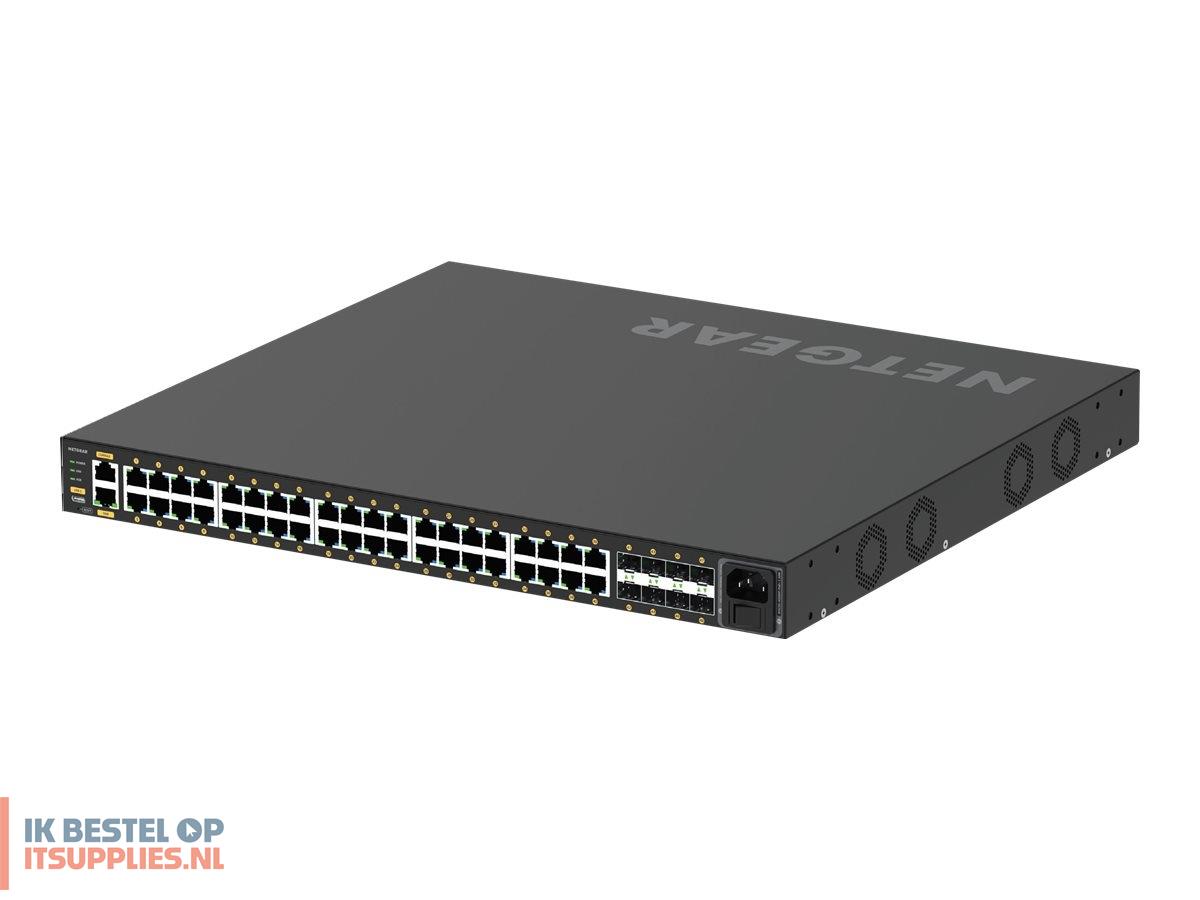

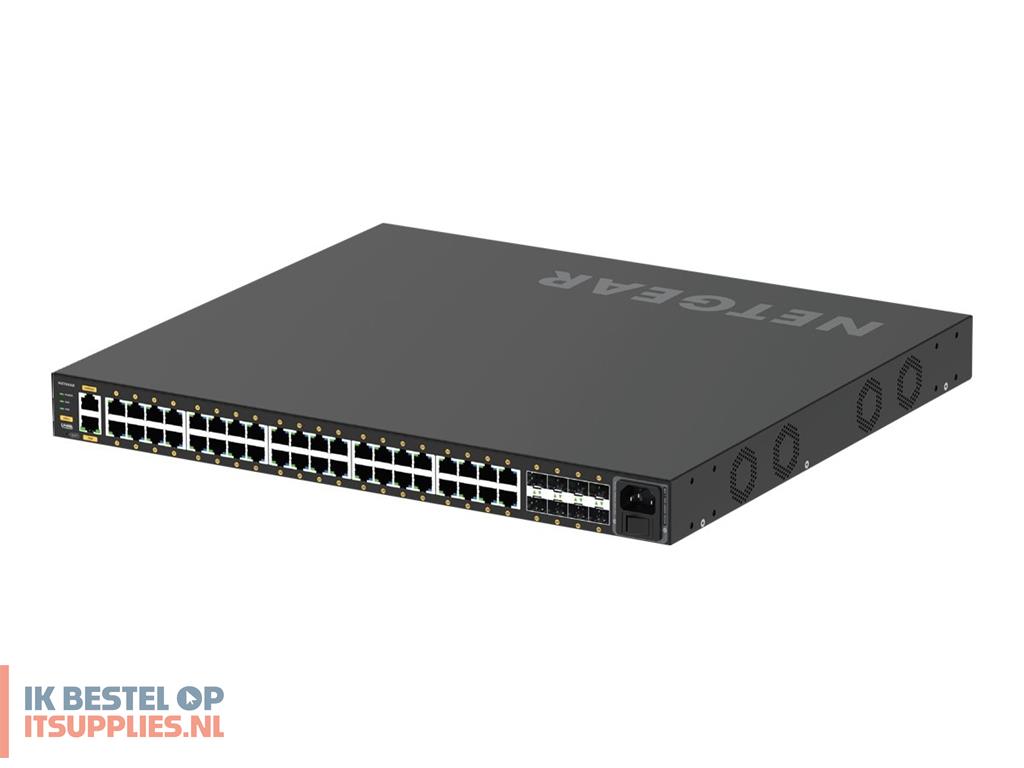

Netgear AV Line M4250-40G8XF-PoE+

Switch - 40 ports - L3 - Managed

Side to side airflow rack-mountable 1U

Gigabit Ethernet

40 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+

PoE+

960 W

Switching capacity: 240 Gbps
Firewall throughput (64-byte packet size): 178.56 Mpps
1 Gbps fibre latency (64-byte packets): 1.106 µs
1 Gbps fibre latency (512-byte packets): 1.12 µs
1 Gbps fibre latency (1024-byte packets): 1.107 µs
1 Gbps fibre latency (1518-byte packets): 1.128 µs
1 Gbps copper latency (64-byte packets): 2.220 µs
1 Gbps copper latency (512-byte packets): 2.595 µs
1 Gbps copper latency (1024-byte packets): 2.744 µs
1 Gbps copper latency (1518-byte packets): 2.613 µs
10 Gbps fibre latency (64-byte packets): 0.709 µs
10 Gbps fibre latency (512-byte packets): 0.717 µs
10 Gbps fibre latency (1024-byte packets): 0.730 µs
10 Gbps fibre latency (1518-byte packets): 0.714 µs

ARP entries: 4000
NDP entries: 4000
Packet buffer size: 32 MB
VLANs supported: 4093
IGMP multicast groups: 4000
QoS hardware queues: 8
IPv4 routes (static): 64
IPv6 routes (static): 64
RIP application route scaling (IPv4): 32
IPv4 groups (Multicast): 512
IPv6 groups (Multicast): 128

16K entries

12KB

RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS

AES, TLS 1.0, SSL 3.0, TLS 1.2

Secure Shell (SSH), RADIUS, TACACS+

Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, WRED, sFlow, DHCP snooping, QoS, DHCP server, MLD snooping, DAI, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, Energy Efficient Ethernet, MVR, dual firmware images, MVRP, NDP, CoS, SP, GARP, GVRP, IGMP proxy, 802.1x authentication, PTP, DSCP support, cable test, MLD proxy, IP source guard, GMRP, SSM, DNS client, Voice VLAN, LLDP-MED, RA guard, STP BPDU Guard, STP loop guard, DoS protection, PIM, AVB, MAB, LAG, TPID, IPTV support, MACAL, ISDP, RPVST+, MRP, STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, ASM

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX

X ARM: 1.8 GHz

2 GB

256 MB

Port status, power, fan, PoE max

40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
8 x 1000Base-X/10GBase-X SFP+
1 x management (Gigabit LAN) RJ-45
1 x management (RS-232) RJ-45
1 x USB-C
1 x USB Type A

Internal power supply

3

1197 Watt

74.5 Watt

Rubber feet, rubber caps

1 x console cable
1 x USB-C to USB-A cable

Included

487,900 hours

cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, ANSI C63.4:2014

Europe

44 cm

40 cm

4.32 cm

6.312 kg

Limited warranty - lifetime
Limited warranty - technical support - 90 days

0 °C

45 °C

90% (non-condensing)

-20 °C

70 °C

95% (non-condensing)
