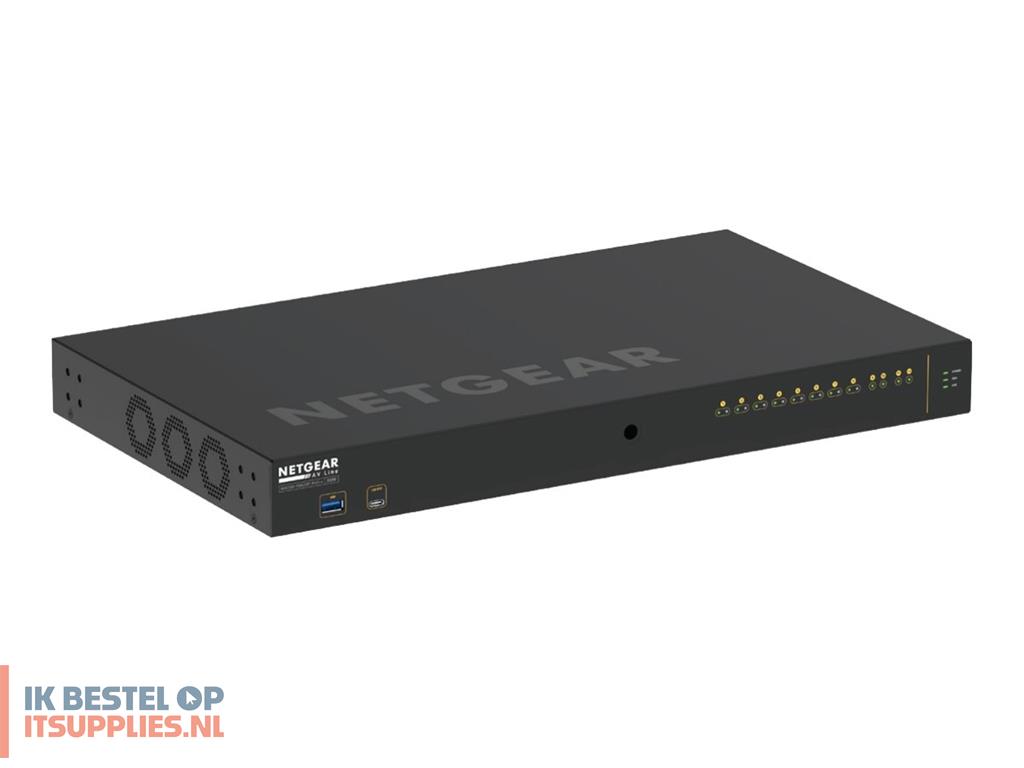

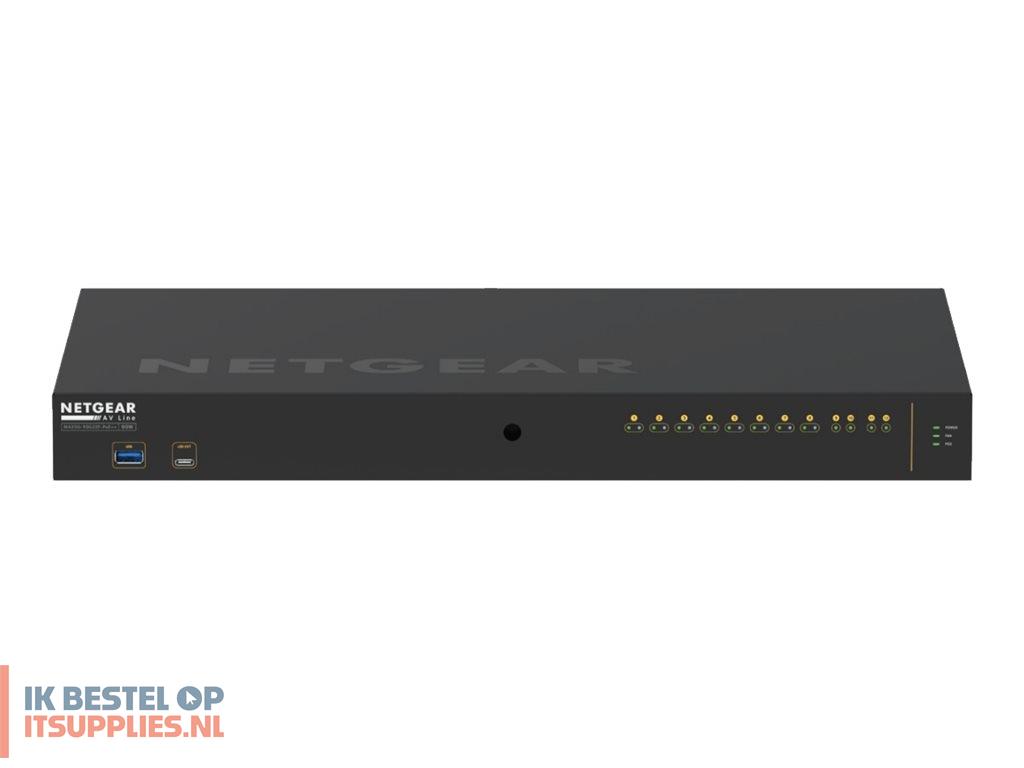

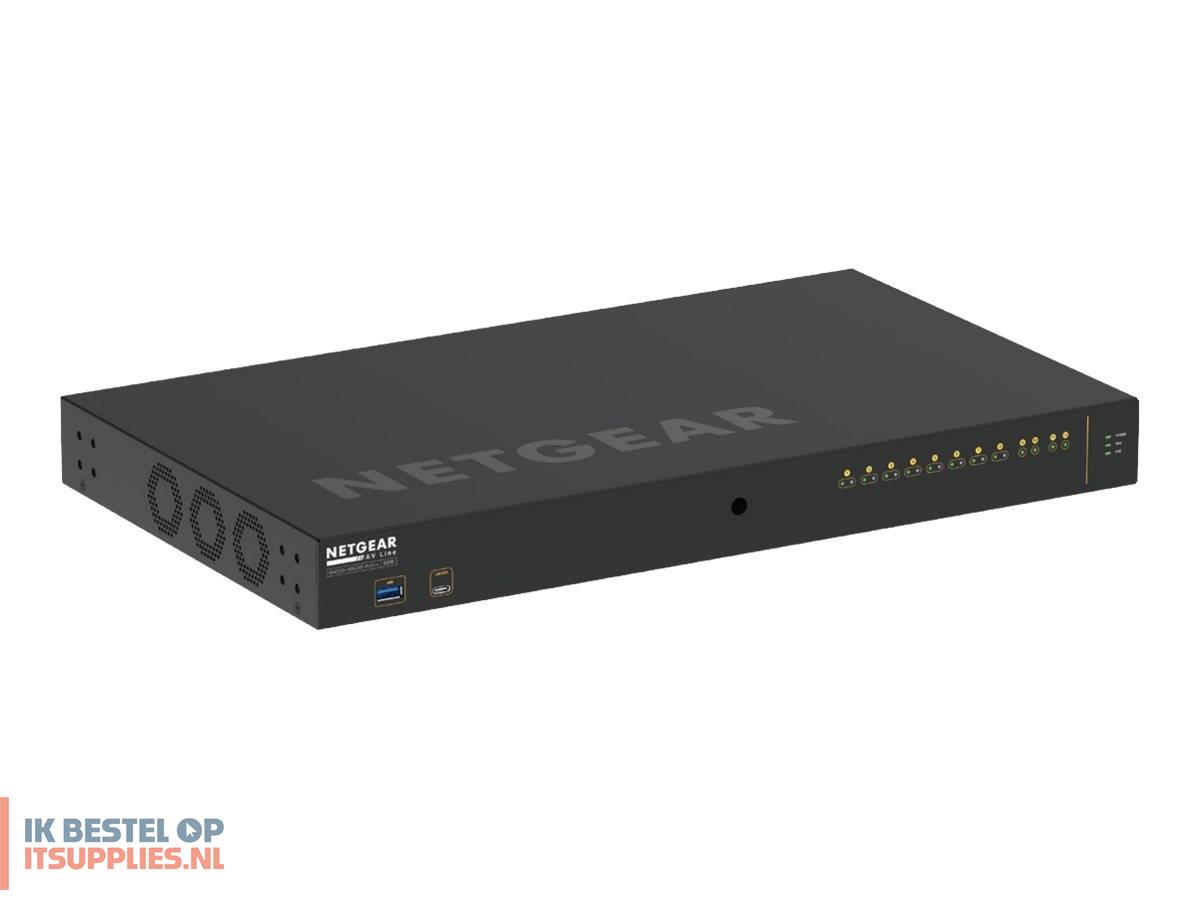

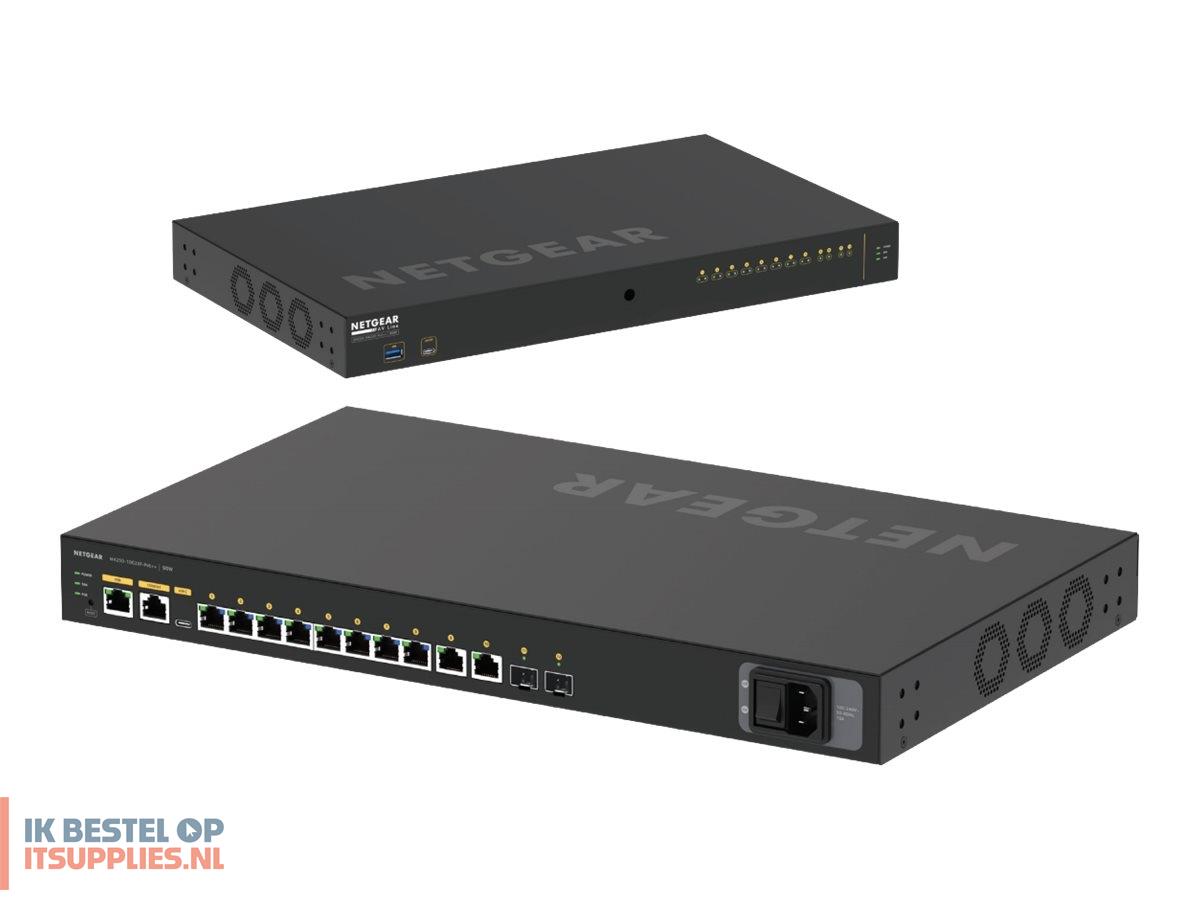

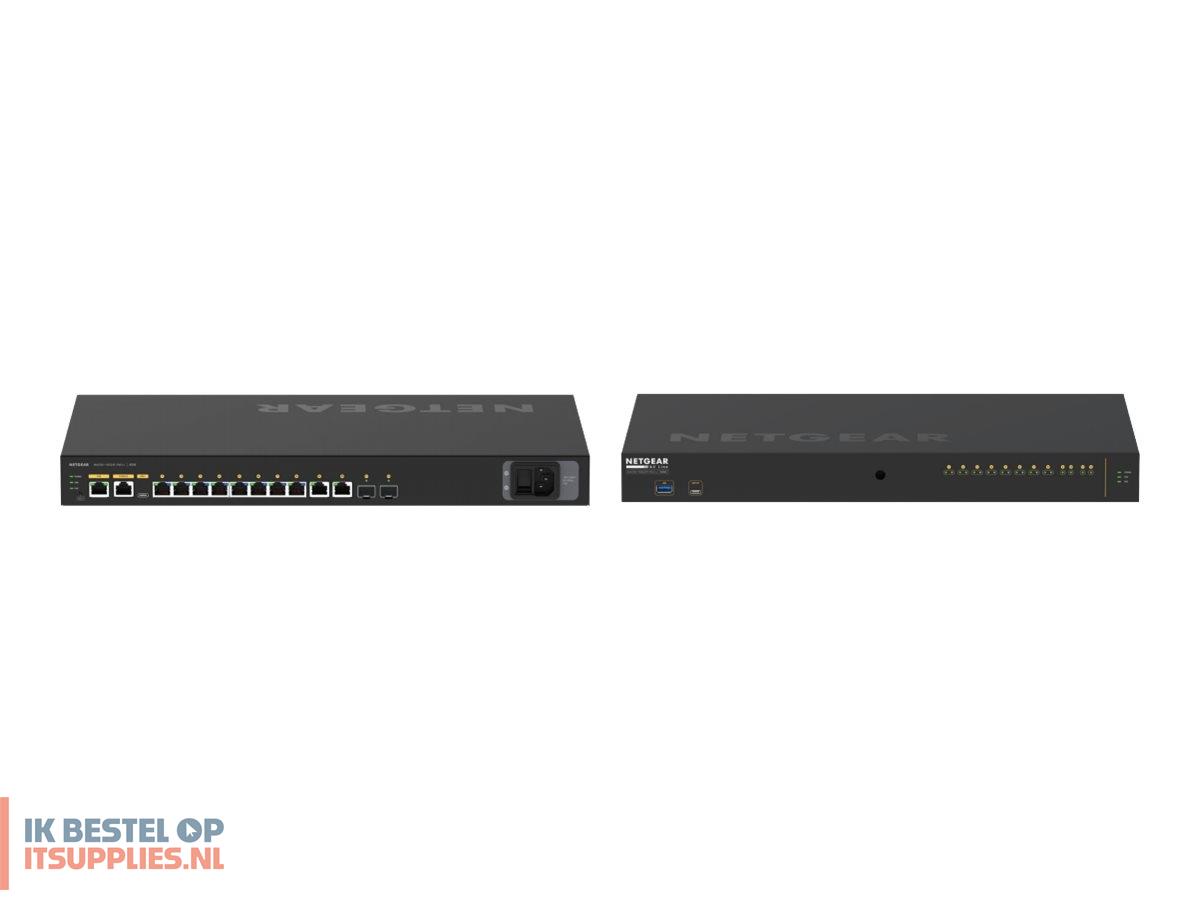

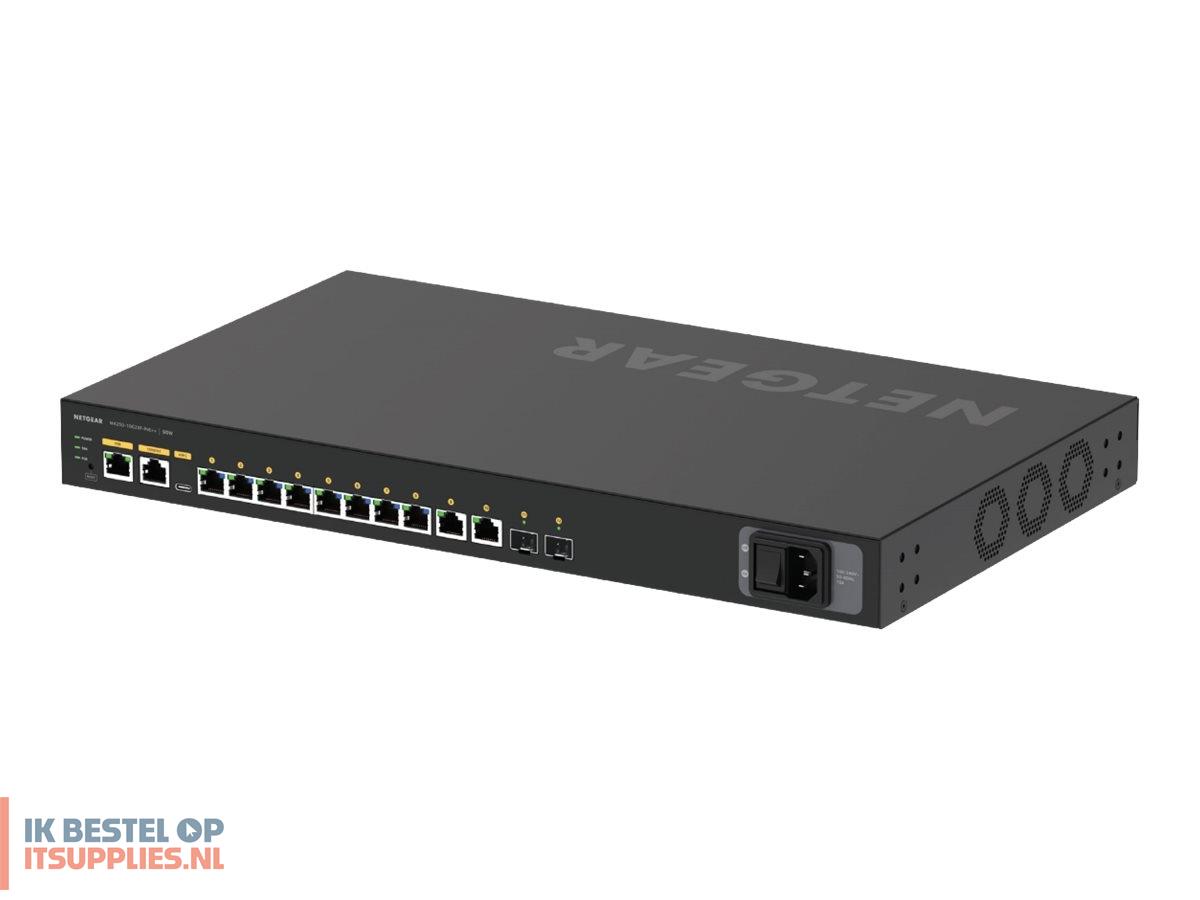

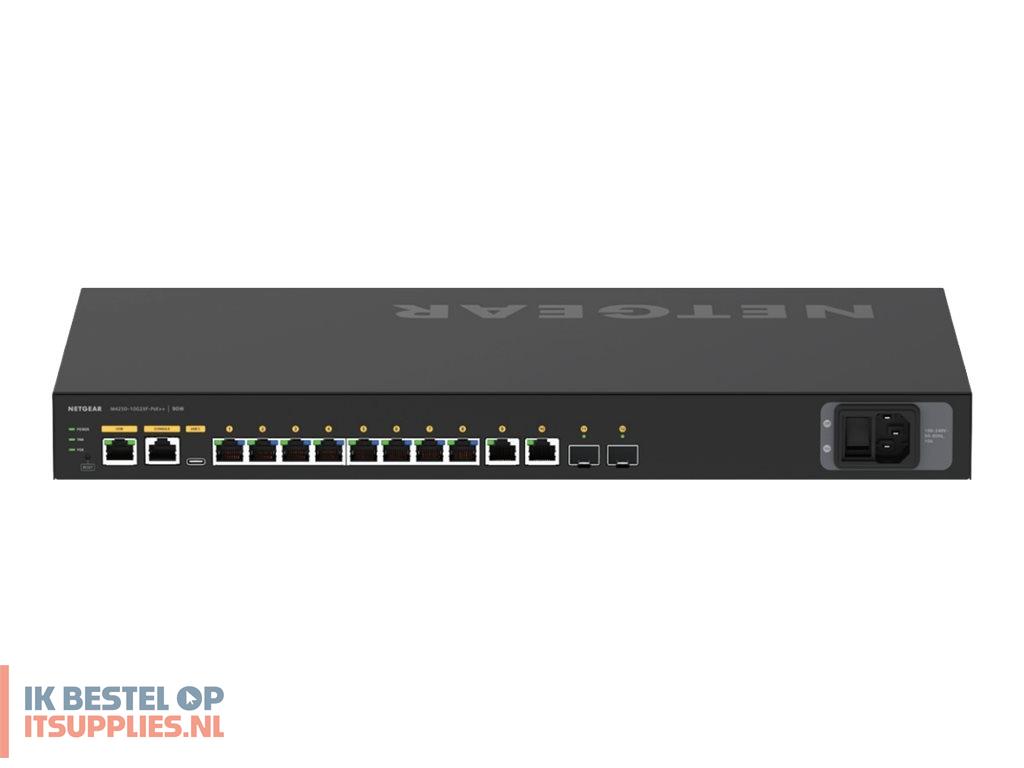

Netgear AV Line M4250-10G2XF-PoE++

Productcode: GSM4212UX-100EUS | EAN/UPC: 0606449149623

€ 1.689,35 excl.btw

NETGEAR AV Line M4250-10G2XF-PoE++ - Switch - L3 - Managed - 10 x 10/100/1000 (8 PoE++) + 2 x 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE++ (720 W)

Dedicated AV web-based GUI interface for more specific AV installations
Color-based AV profiles can be applied to the different ports
Dante, Q-SYS, AES67 and AVB audio profiles
NVX, SVSI, Q-SYS, NDI and Dante video profiles
Audio / video / control mixed profiles
Automatic switch interconnect with NETGEAR IGMP Plus
Common Layer 2 and Layer 3 switching engine
Built-in IT web GUI, console, Telnet and SSH
8-port 10 / 100 / 1000 Base-T (RJ-45) Ultra 90 PoE++ with 720 W PoE budget
2-port 10 / 100 / 1000 Base-T (RJ-45)
2-port 1000 / 10 GBase-X (SFP+)
Compatible 802.3af (15.4 W), 802.3at (30 W), 802.3bt (60, 75 and 90 W)
60 Gbps non-blocking fabric across 12 ports
Out-of-band 1G Ethernet management port
USB-C and RJ-45 RS232 console ports and USB-A storage port
Rack-mounting standard brackets

Op voorraad: 6 stuk(s)

Levertijd:

Product:
Netgear AV Line M4250-10G2XF-PoE++

€ 2044,11 incl. 21% btw € 1689,35excl. 21% btw

Winkelwagen Offerte

Omschrijving

NETGEAR AV Line M4250-10G2XF-PoE++ - Switch - L3 - Managed - 10 x 10/100/1000 (8 PoE++) + 2 x 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE++ (720 W)

Product features

Enhanced security
With support for SSL 3.0 and TLS 1.2, the NETGEAR M4250-10G2XF-PoE++ ensures secure network communications, safeguarding sensitive data from potential threats.
Robust connectivity
Featuring 10/100/1000 Base-T ports with 8 PoE++ capabilities and 2 10GBase-X SFP+ ports, this switch offers versatile connectivity options for a wide range of devices and high-speed networking requirements.
Advanced networking
Equipped with Layer 3 switching capabilities and a comprehensive set of features such as DHCP snooping, VLAN support, and Quality of Service (QoS), the NETGEAR M4250-10G2XF-PoE++ facilitates efficient network traffic management.
High performance
With a switching capacity of 60 Gbps and firewall throughput of 44.64 Mpps, this switch delivers high-speed data processing and transmission, ensuring optimal network performance.
Reliable operation
Designed for durability and reliability, the NETGEAR M4250-10G2XF-PoE++ operates effectively in a wide range of environmental conditions, supported by its side to side airflow and robust temperature management.

Specificaties

General

Device Type

Switch - 12 ports - L3 - Managed

Enclosure Type

Side to side airflow rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

10 x 10/100/1000 (8 PoE++) + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE++

PoE Budget

720 W

Performance

Switching capacity: 60 Gbps
Firewall throughput (64-byte packet size): 44.64 Mpps
Latency (1 Gbps): < 2.14 µs
Latency (10 Gbps): < 0.84 µs

Capacity

VLANs supported: 4093
ARP entries: 4000
Multicast entries (IPv4): 512
Multicast entries (IPv6): 128
Jumbo frame size: up to 12000
IGMP multicast groups: 2000
MSTP instances: 16
PVST instances: 32

MAC Address Table Size

16K entries

Routing Protocol

RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2

Remote Management Protocol

RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS

Encryption Algorithm

SSL 3.0, TLS 1.2

Features

VLAN support, DoS attack prevention, sFlow, STP support, DHCP snooping, QoS, DHCP server, DAI, DHCP relay, LACP, RSPAN, GVRP, MVRP, 16MB packet buffer, IP source guard, BPDU, GMRP, STRG, policy based routing, AAA, LLDP-MED, Private VLAN, PIM, RSTP, LAG

Compliant Standards

IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.3bt

Processor

X ARM A9: 1.25 GHz

RAM

2 GB

Flash Memory

256 MB

Status Indicators

PoE, link/activity, speed

Expansion / Connectivity

Interfaces

10 x 10/100/1000 Base-T RJ-45 8 ports (PoE++)
2 x 10GBase-X SFP+
1 x management (Gigabit LAN) RJ-45
1 x console RJ-45
1 x USB Type A
1 x console (USB) Type C

Power

Power Device

Internal power supply

Installed Qty

Power Consumption Operational

26.3 Watt

Power Consumption Stand by

18 Watt

Miscellaneous

Included Accessories

Mounting brackets, foot pad set, 2 x SFP slot caps

Cables Included

Console cable
USB-C to USB-A cable

Rack Mounting Kit

Included

Compliant Standards

CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, GB/T9254-2008 Class A, ANSI C63.4:2014

Localisation

Europe

Dimensions & Weight

Width

44 cm

Depth

25.7 cm

Height

4.32 cm

Weight

3.83 kg

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

90% (non-condensing)

Min Storage Temperature

-20 °C

Max Storage Temperature

70 °C

Humidity Range Storage

95% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
