General

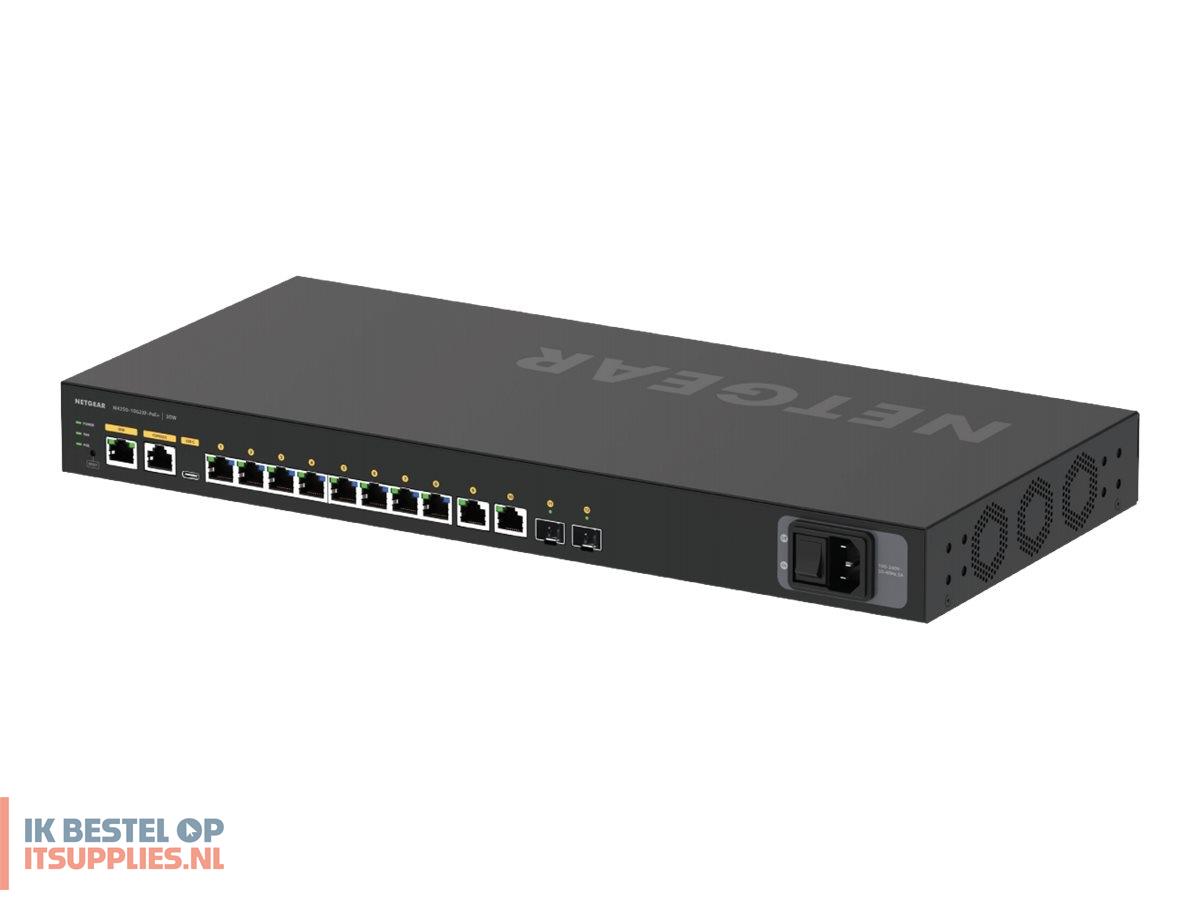

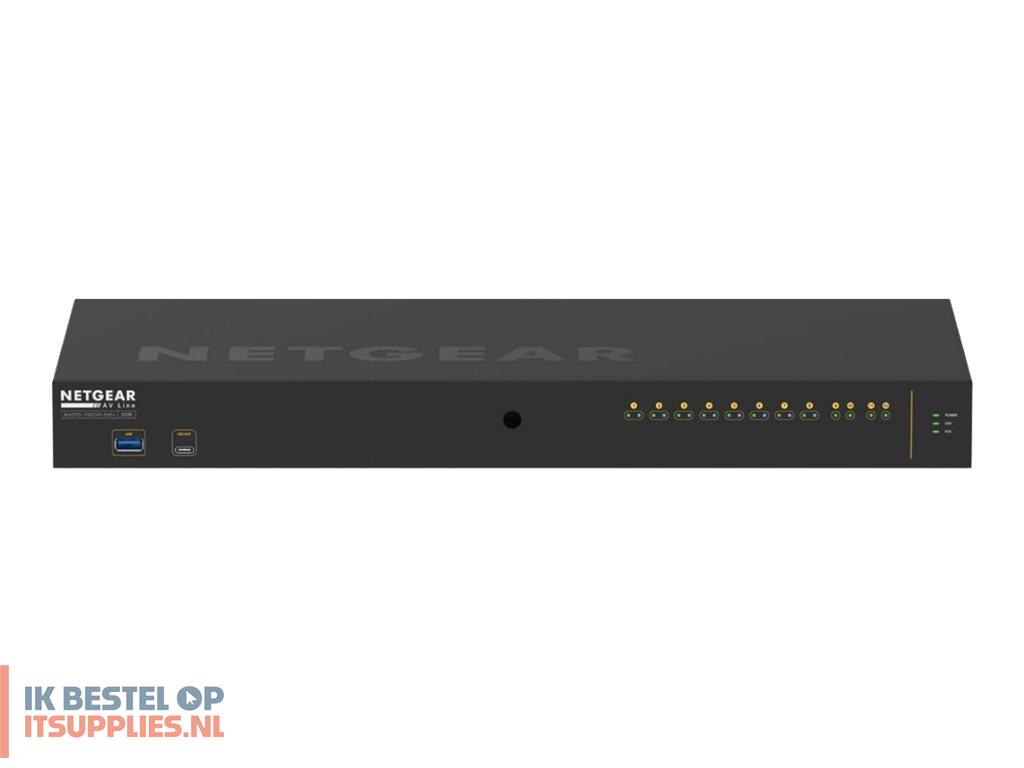

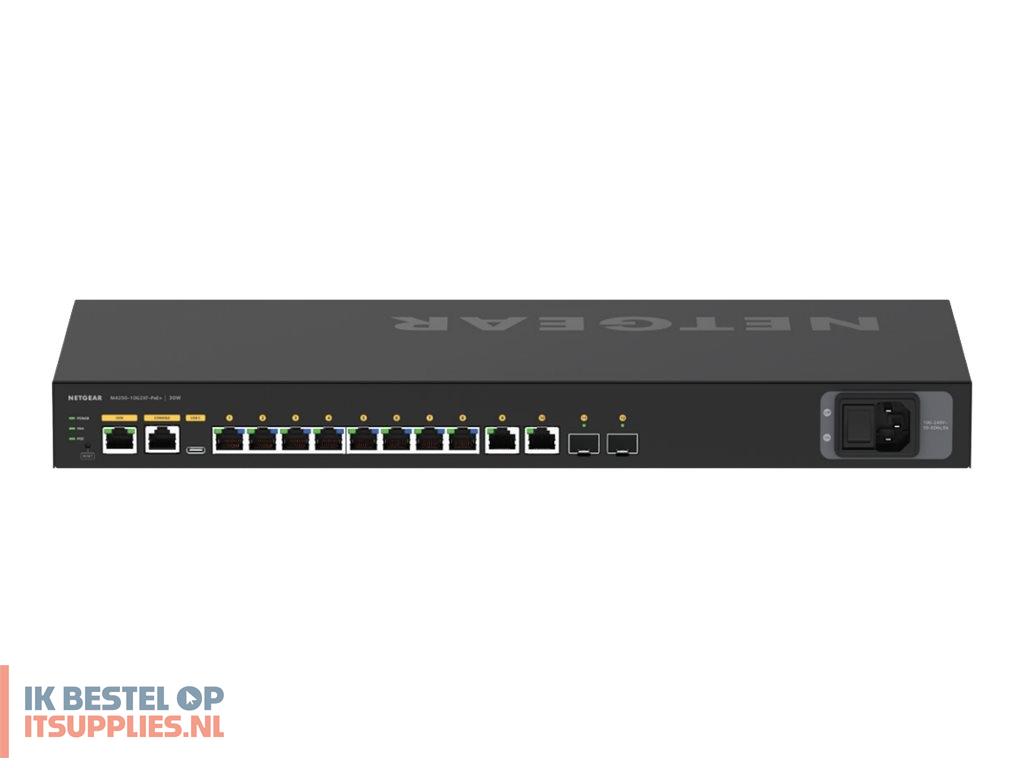

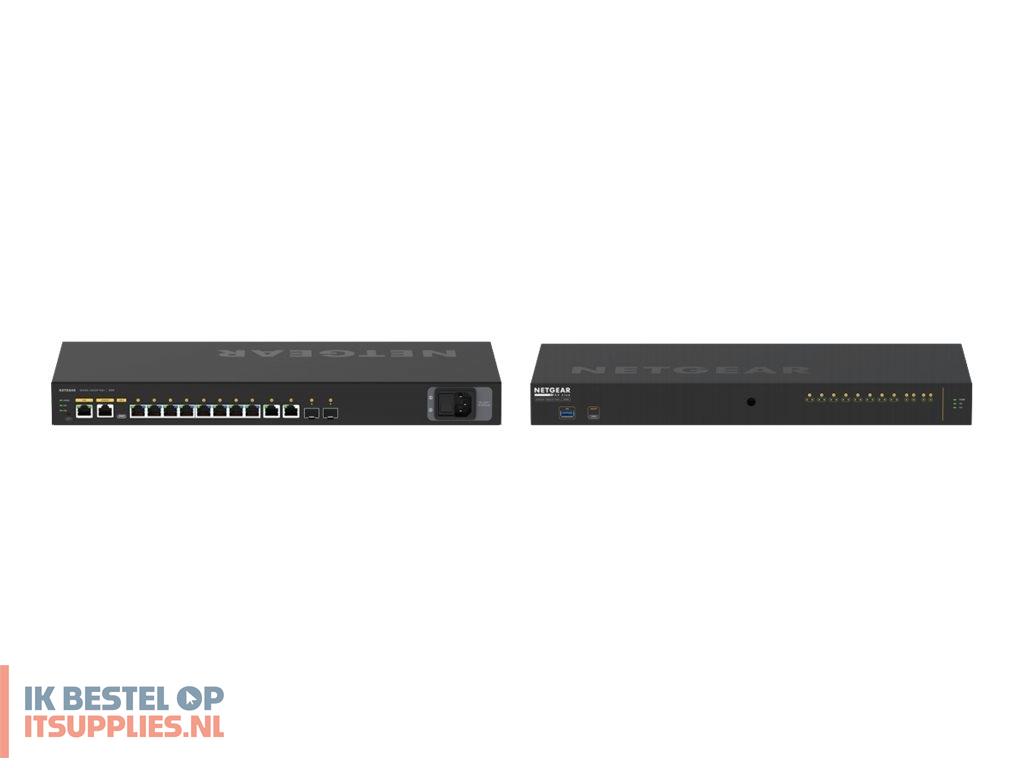

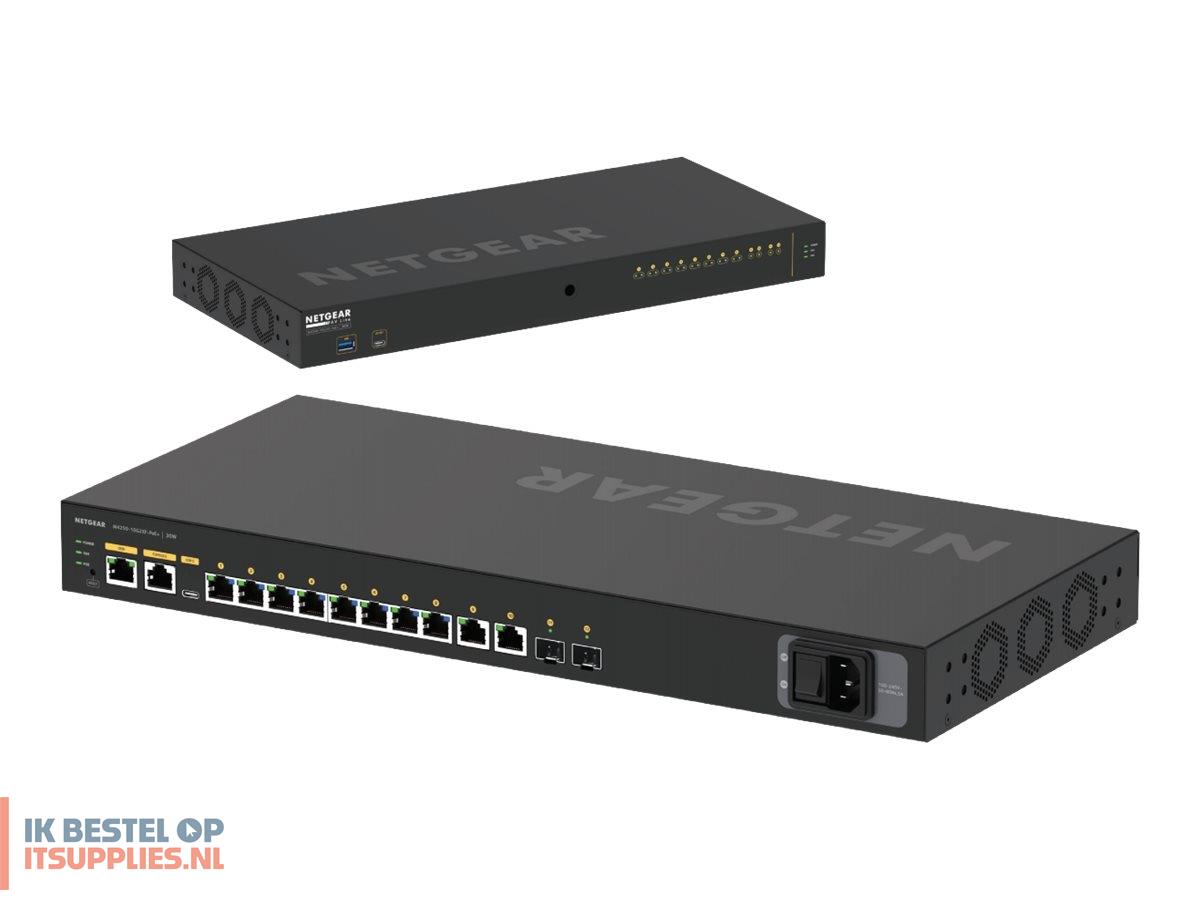

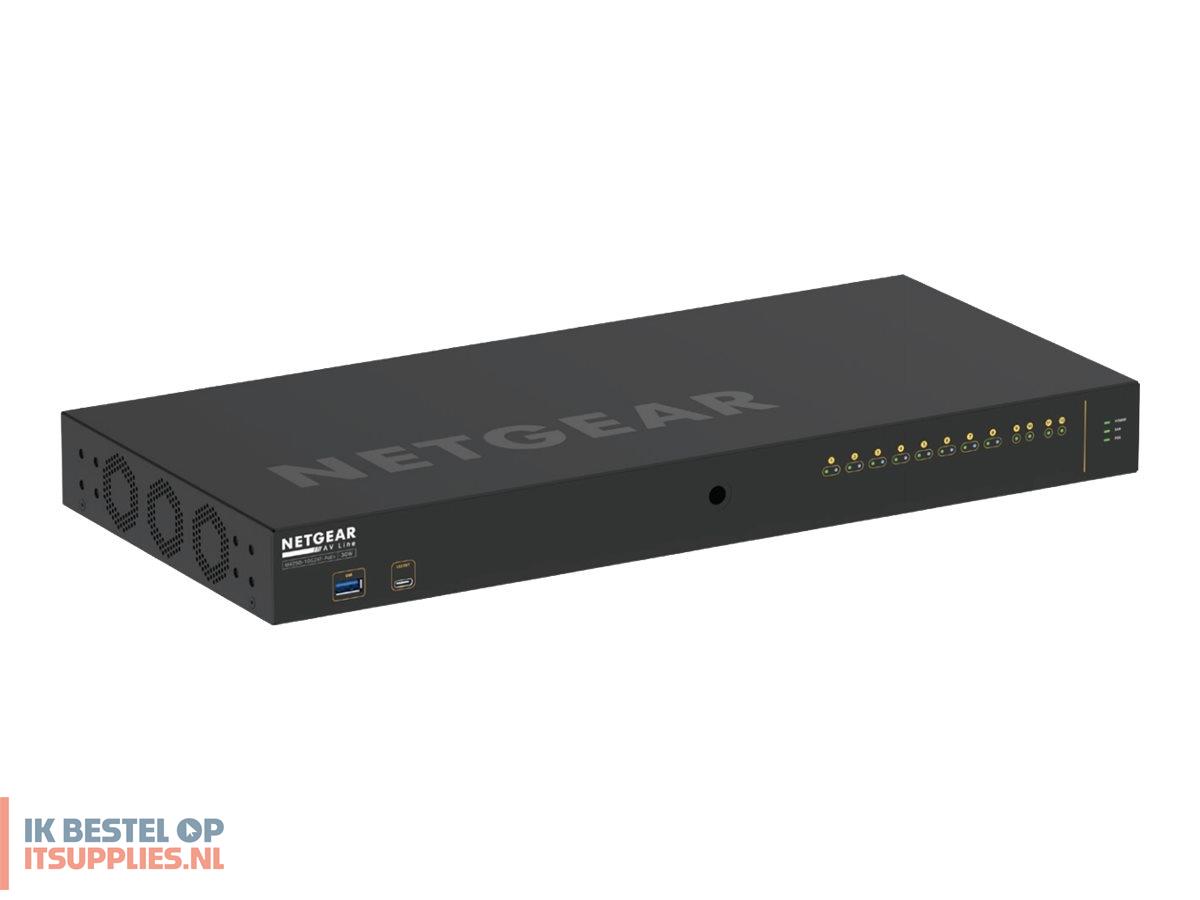

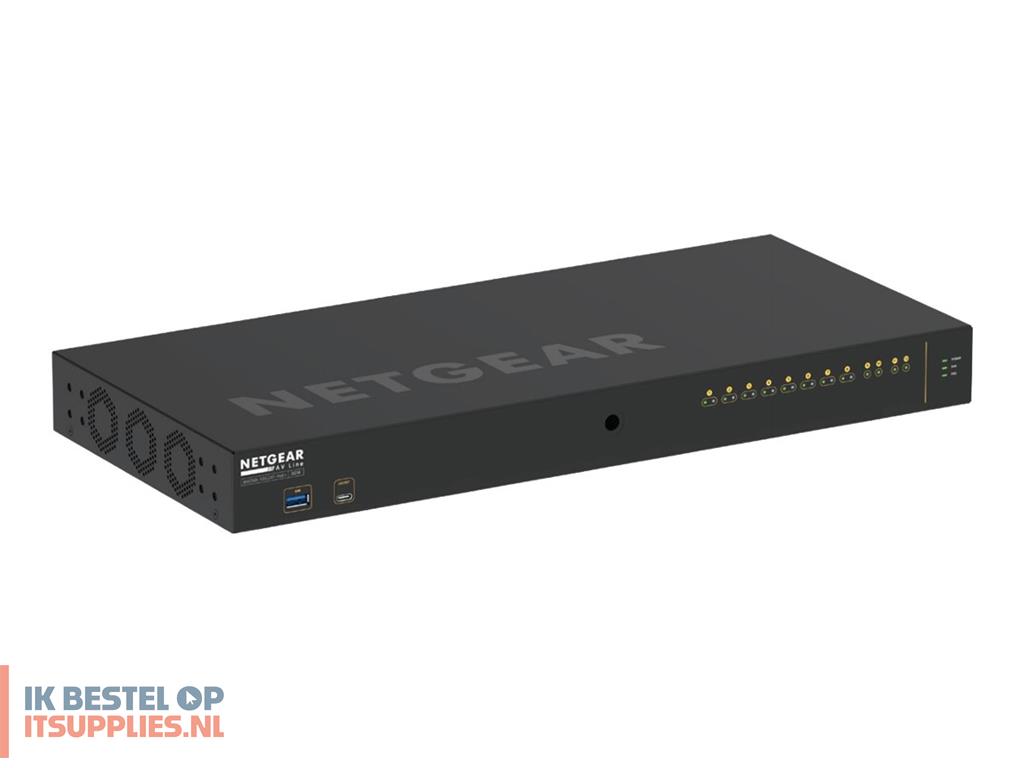

Device Type
Switch - 12 ports - L3 - Managed
Enclosure Type
Side to side airflow rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
10 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 60 Gbps
Firewall throughput (64-byte packet size): 44.64 Mpps
Latency (1 Gbps): < 2.14 µs
Latency (10 Gbps): < 0.84 µs
Capacity
VLANs supported: 4093
ARP entries: 4000
Multicast entries (IPv4): 512
Multicast entries (IPv6): 128
Jumbo frame size: up to 12000
IGMP multicast groups: 2000
MSTP instances: 16
PVST instances: 32
MAC Address Table Size
16K entries
Routing Protocol
RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2
Remote Management Protocol
RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS
Encryption Algorithm
SSL 3.0, TLS 1.2
Features
VLAN support, DoS attack prevention, sFlow, STP support, DHCP snooping, QoS, DHCP server, DAI, DHCP relay, LACP, RSPAN, GVRP, MVRP, 16MB packet buffer, IP source guard, BPDU, GMRP, STRG, policy based routing, AAA, LLDP-MED, Private VLAN, PIM, RSTP, LAG
Compliant Standards
IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav
Processor
X ARM A9: 1.25 GHz
Expansion / Connectivity
Interfaces
10 x 10/100/1000 Base-T RJ-45 8 ports (PoE+)
2 x 10GBase-X SFP+
1 x management (Gigabit LAN) RJ-45
1 x console RJ-45
1 x USB Type A
1 x console (USB) Type C
Power
Power Device
Internal power supply
Power Consumption Operational
25 Watt
Power Consumption Stand by
12.96 Watt
Miscellaneous
Included Accessories
Mounting brackets, foot pad set, 2 x SFP slot caps
Cables Included
Console cable
USB-C to USB-A cable
Rack Mounting Kit
Included
Compliant Standards
CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, GB/T9254-2008 Class A, ANSI C63.4:2014
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
95% (non-condensing)
