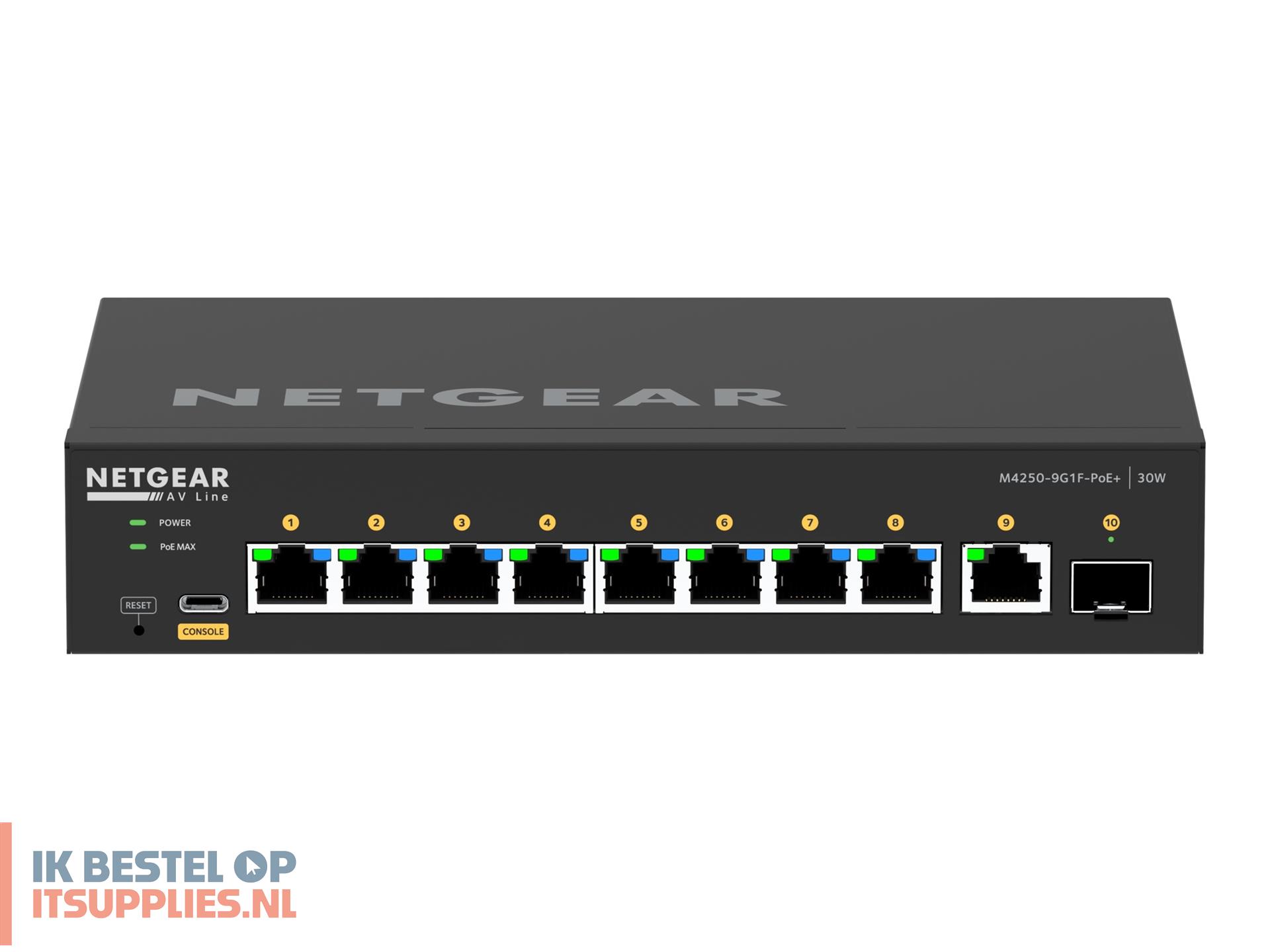

General
Device Type
Switch - 10 ports - L3 - Managed
Enclosure Type
Side to side airflow rack-mountable
Ports
8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 20 Gbps
Throughput (64-byte packet size): 14.88 Mpps
Latency (1 Gbps): < 2.27 µs
Capacity
VLANs supported: 4093
ARP entries: 4000
Multicast entries (IPv4): 512
Multicast entries (IPv6): 128
Jumbo frame size: up to 12000
IGMP multicast groups: 2000
MSTP instances: 16
PVST instances: 32
MAC Address Table Size
16K entries
Routing Protocol
RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, HTTPS, SSH, CLI, TACACS+, RADIUS
Encryption Algorithm
SSL 3.0, TLS 1.2
Features
VLAN support, DoS attack prevention, sFlow, STP support, DHCP snooping, QoS, DHCP server, DAI, fanless, LACP support, LLDP support, DHCP relay, LACP, RSPAN, GVRP, MVRP, 16MB packet buffer, PTP, IP source guard, BPDU, GMRP, STRG, policy based routing, AAA, Root Guard, LLDP-MED, Private VLAN, PoE timer, PIM, AVB, RSTP, LAG, IGMP support, MIB support, MTP
Compliant Standards
IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav
Processor
X ARM A9: 1.25 GHz
Expansion / Connectivity
Interfaces
9 x 10/100/1000 Base-T RJ-45 8 ports (PoE+)
1 x 10GBase-X SFP
1 x management (Gigabit LAN) RJ-45
1 x console RJ-45
1 x USB Type A
1 x console (USB) Type C
Power
Power Device
External power adapter
Miscellaneous
Included Accessories
Mounting brackets, foot pad set, 2 x SFP slot caps
Cables Included
USB-C to USB-A cable
Rack Mounting Kit
Included
Compliant Standards
CSA, BSMI, CB, CCC, KC, IEC 60950-1 Second Edition, EAC, RCM, IEC 62311, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN32 Class A, KN35 Class A, ISED, EN 55032:2015 Class A, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, EN 55035:2017, GOST 30804.3.2-2013, GOST 30804.3.3-2013, GB/T9254-2008 Class A, ANSI C63.4:2014, IEC 62368-1 Second Edition, ICES-003:2016 issue 7 Class A, GOST 30805.22-2013, GOST CISPR 24-2013
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
95% (non-condensing)
