General
Device Type

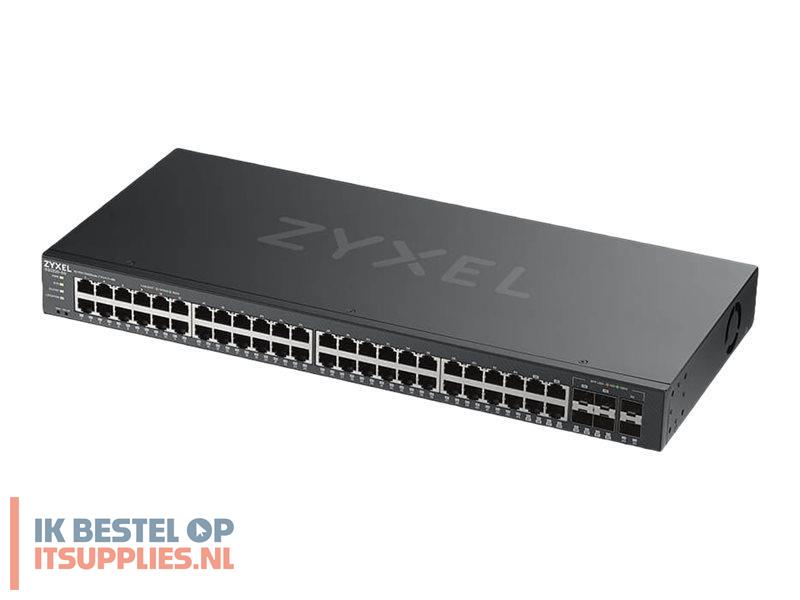

Switch - 48 ports - Managed
Enclosure Type
Rack-mountable
Ports
44 x 10/100/1000 + 4 x combo Gigabit SFP + 2 x Gigabit SFP
Performance
Switching capacity: 100 Gbps
Forwarding rate: 74 Mpps
Packet buffer size: 1.5 MB
MAC Address Table Size
16K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, IGMP snooping, Syslog support, port mirroring, IP address filtering, ZyXEL iStacking Technology, sFlow, QoS, MLD snooping, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, MIB, MVR, port isolation, CoS, GVRP, cloud managed, DSCP support, ErrDisable Recovery, IP source guard, ARP inspection, dual image support, Root Guard, Loop Guard, LLDP-MED, EEE, VLAN Tagging, MRSTP
Compliant Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Expansion / Connectivity
Interfaces
48 x 1000Base-T RJ-45
6 x 1000Base-X SFP
1 x serial (RS-232)
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
36.9 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A
Dimensions & Weight
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95%
